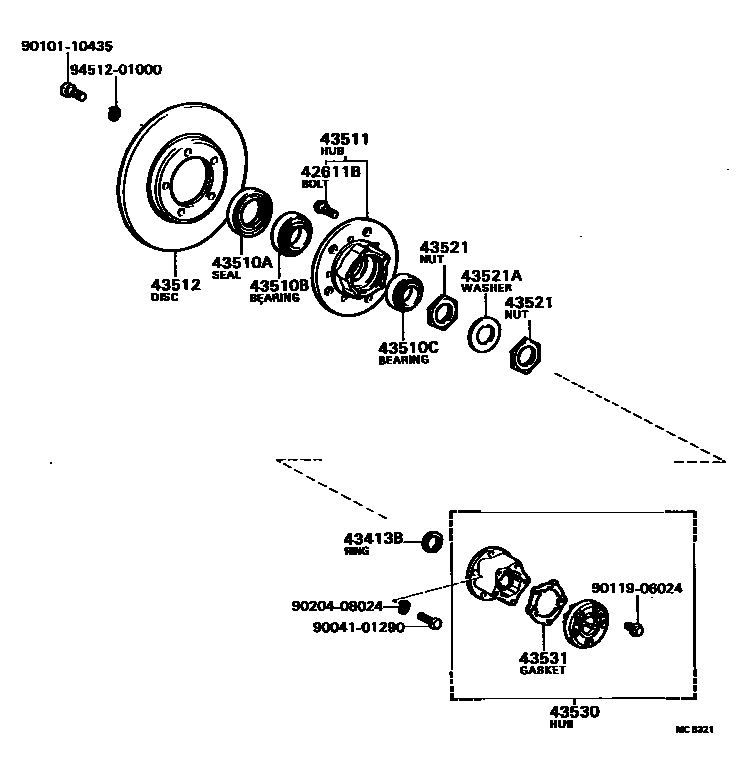

FRONT AXLE HUB
42611BBOLT, HUB (FOR FRONT AXLE)
sub90049-12053
43413BRING, DRIVE SHAFT SNAP
43510ASEAL, OIL (FOR FRONT AXLE HUB)
43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
43511HUB, FRONT AXLE
43512DISC, FRONT
sub43512-87607
43521NUT, FRONT WHEEL ADJUSTING
43521AWASHER, CLAW (FOR FRONT WHEEL ADJUSTING NUT)
43530HUB ASSY, FREE WHEEL
43531GASKET, FREE WHEEL HUB
9004101290
main90041-01290
9010110435
main90101-10435
9011906024
main90119-06024
9020408024
main90204-08024
9451201000
main94512-01000
16 parts on this diagram · 1 diagram in section
