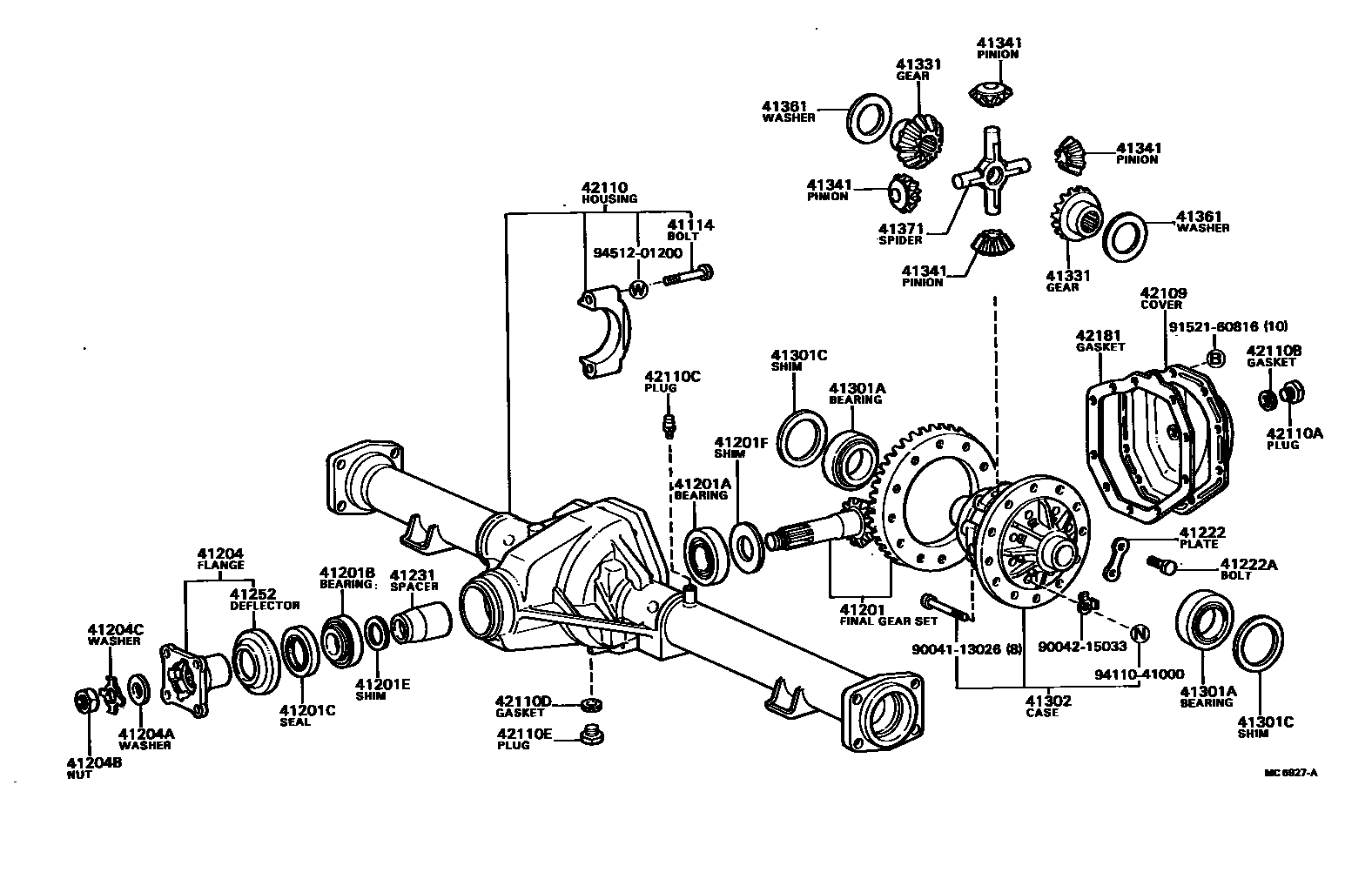

REAR AXLE HOUSING & DIFFERENTIAL
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
sub41201-87612
sub90045-64301
sub90045-64302
sub90045-64303
sub90045-64304
sub90045-64305
sub90045-64306
sub90045-64307
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
sub97619-30306
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
sub90043-11248
41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)
T=0.25,T=0.25
T=0.30,T=0.30
T=0.40,T=0.40
T=0.50,T=0.50
T=0.08,T=0.08
41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)
T=3.10,T=3.10
T=3.15,T=3.15
T=3.20,T=3.20
T=3.25,T=3.25
T=3.30,T=3.30
T=3.35,T=3.35
T=0.30,T=0.30
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
sub41204-87604
41204AWASHER, PLATE (FOR REAR DRIVE PINION)
41204BNUT (FOR REAR DRIVE PINION)
41204CWASHER, LOCK (FOR DRIVE PINION)
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
W/LSD
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
W/LSD
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41301CSHIM, DIFFERENTIAL BEARING ADJUSTING INNER
41302CASE SUB-ASSY, REAR DIFFERENTIAL
41331GEAR, REAR DIFFERENTIAL SIDE
W/LSD
41341PINION, REAR DIFFERENTIAL
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.80,T=0.8
T=1.00,T=1.0
W/LSD
41371SPIDER, REAR DIFFERENTIAL
42109COVER SUB-ASSY, REAR AXLE HOUSING
sub42109-87605
42110HOUSING ASSY, REAR AXLE
42110APLUG (FOR REAR AXLE HOUSING FILLER)
42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)
42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)
42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)
42110EPLUG (FOR REAR AXLE HOUSING DRAIN)
42181GASKET, REAR DIFFERENTIAL CARRIER
9004113026
main90041-13026
9004215033
main90042-15033
9152160816
main91521-60816
9411041000
main94110-41000
9451201200
main94512-01200
36 parts on this diagram · 2 diagrams in section
