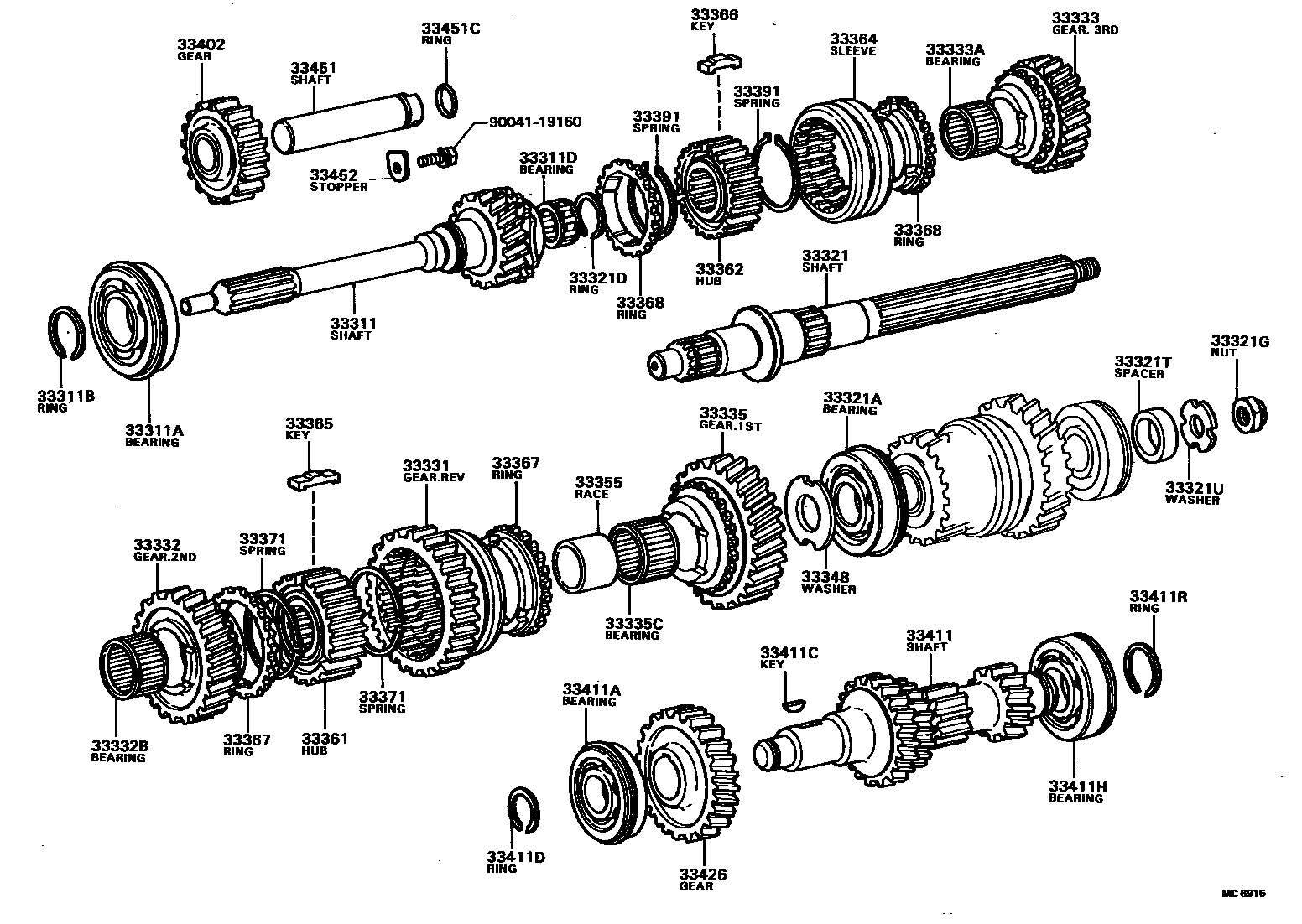

TRANSMISSION GEAR (MTM)

33311SHAFT, INPUT

main33311-87607iLD10198201-198210

main33311-87608iLD10198210-198404

33311ABEARING (FOR INPUT SHAFT FRONT)

main90043-63072iLD10198201-198404

33311BRING, SHAFT SNAP (FOR FRONT BEARING)

main90045-20079iLD10198201-198404

33311DBEARING, INPUT SHAFT

main90043-64037iLD10198201-198404

33321SHAFT, OUTPUT

main33321-87308iLD10198201-198404

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90043-63059iLD10198201-198404

33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)

main90045-20080iLD10198201-198404

33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)

main90041-78010iLD10198201-198404

33321TSPACER (FOR OUTPUT SHAFT)

main36252-87602iLD10198201-198404

sub36252-87603

33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)

main36734-87601iLD10198201-198404

33331GEAR, REVERSE

main33331-87311iLD10198201-198404

33332GEAR, 2ND

main33332-87304iLD10198201-198210

sub33332-87305

main33332-87305iLD10198210-198404

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90043-64031iLD10198201-198404

33333GEAR, 3RD

main33333-87606iLD10198201-198210

sub33333-87607

main33333-87607iLD10198210-198404

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90043-64032iLD10198201-198404

33335GEAR, 1ST

main33335-87602iLD10198201-198210

sub33335-87603

main33335-87603iLD10198210-198404

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90043-64031iLD10198201-198404

33348WASHER, 1ST GEAR THRUST

main33348-87303iLD10198201-198404

sub33348-87304

33355RACE, 1ST GEAR BEARING INNER

main33355-87302iLD10198201-198404

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-87302iLD10198201-198404

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-87303iLD10198201-198404

33364SLEEVE, TRANSMISSION HUB, NO.2

main33363-87304iLD10198201-198404

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-87303iLD10198201-198404

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33366-87303iLD10198201-198404

33367RING, SYNCHRONIZER, NO.1

main33367-87303iLD10198201-198210

1ST GEAR

sub33367-87601

main33367-87601iLD10198210-198404

1ST GEAR

main33368-87304iLD10198201-198210

2ND GEAR

sub33368-87601

main33368-87601iLD10198210-198404

2ND GEAR

33368RING, SYNCHRONIZER, NO.2

main33369-87303iLD10198201-198210

sub33369-87601

main33369-87601iLD10198210-198404

33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1

main33371-87303iLD10198201-198404

33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2

main33391-87303iLD10198201-198404

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-87311iLD10198201-198404

33411COUNTERSHAFT

main33411-87609iLD10198201-198210

sub33411-87611

main33411-87611iLD10198210-198404

33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)

main90043-63060iLD10198201-198404

33411CKEY, WOODRUFF(FOR COUNTER GEAR SHAFT)

main90042-80017iLD10198201-198203

sub90042-80023

main90042-80023iLD10198203-198404

33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1

main90045-20081iLD10198201-198404

33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)

main97180-06307iLD10198201-198404

33411RRING, SNAP, COUNTER GEAR REAR BEARING

main90045-20082iLD10198201-198404

33426GEAR, COUNTERSHAFT DRIVE

main33426-87603iLD10198201-198404

33451SHAFT, REVERSE IDLER GEAR

main33451-87604iLD10198201-198210

sub33451-87606

sub33452-87601

main33451-87606iLD10198210-198404

33451CRING, O (FOR REVERSE IDLER GEAR SHAFT)

main96711-19028iLD10198201-198404

33452STOPPER, REVERSE IDLER GEAR SHAFT

main33452-87301iLD10198201-198210

main33452-87601iLD10198210-198404

9004119160

main90041-19160

40 parts on this diagram · 1 diagram in section
