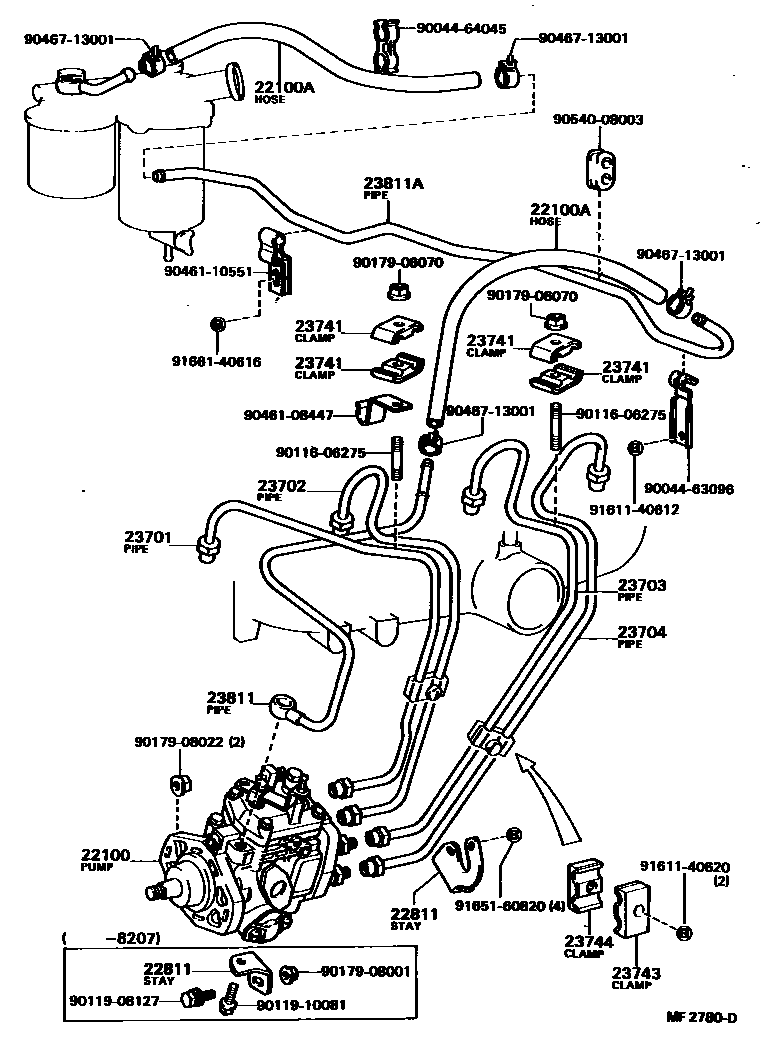

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-54131iL..LD10198201-198404

sub22100-54132

sub90099-05166

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main95332-08030iL..LD10198201-198404

L=300(*H,L=220),INJECTOR SIDE

sub95333-08030

main95332-08060iL..LD10198201-198404

L=600(*H,L=440),FUEL FILTER TO PIPE

sub95333-08060

22811STAY, INJECTION PUMP, NO.1

main22811-54030iL..LD10198201-198207

main22811-54040iL..LD10198207-198404

sub22811-54041

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54051iL..LD10198201-198311

main23701-54082iL..LD10198311-198404

sub23701-54072

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54050iL..LD10198201-198311

main23702-54081iL..LD10198311-198404

sub23702-54071

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54050iL..LD10198201-198404

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54050iL..LD10198201-198404

23741CLAMP, INJECTION PIPE, NO.1

main23741-56010iL..LD10198201-198404

23743CLAMP, INJECTION PIPE, NO.3

main23741-54010iL..LD10198201-198404

23744CLAMP, INJECTION PIPE, NO.4

main23742-54010iL..LD10198201-198404

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54051iL..LD10198201-198404

23811APIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP)

main23812-87603iL..LD10198201-198404

9004463096

main90044-63096

9004464045

main90044-64045

9011606275

main90116-06275

9011908127

main90119-08127

9011910081

main90119-10081

9017906070

main90179-06070

9017908001

main90179-08001

9017908022

main90179-08022

9046108447

main90461-08447

9046110551

main90461-10551

9046713001

main90467-13001

9054008003

main90540-08003

9161140612

main91611-40612

9161140620

main91611-40620

9165160820

main91651-60820

9166140616

main91661-40616

28 parts on this diagram · 1 diagram in section
