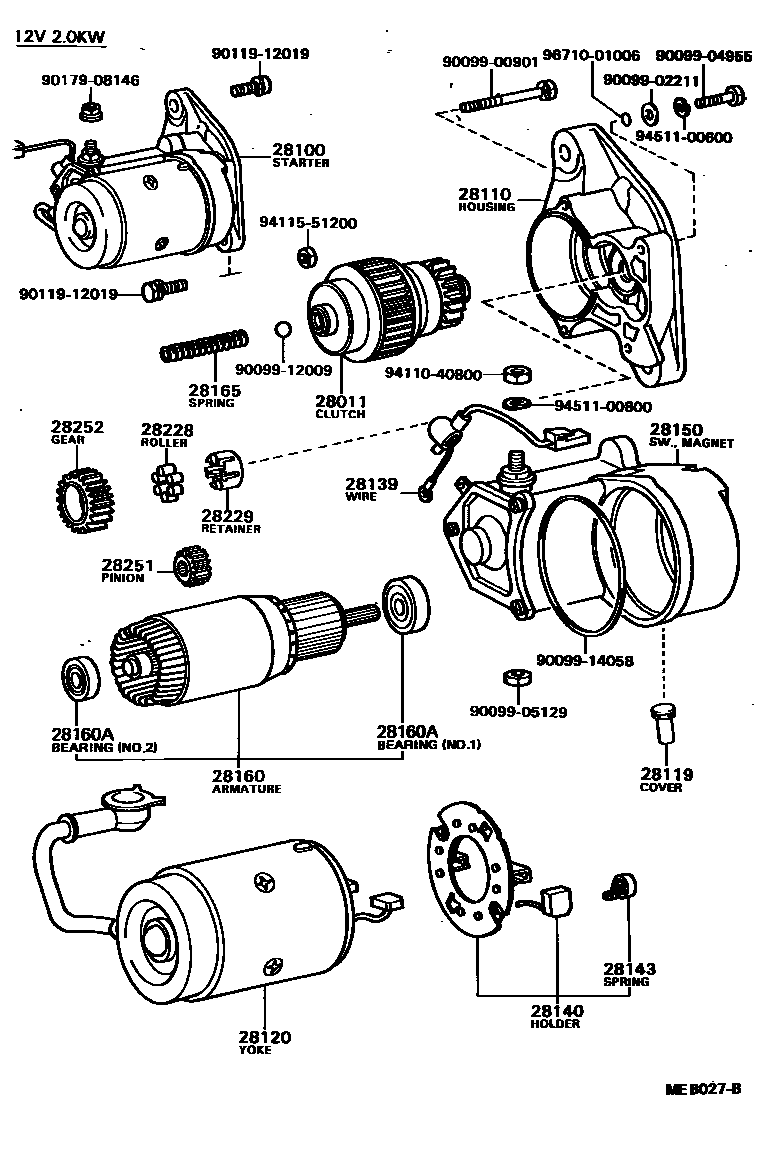

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-54070iL..LD10198201-198404

12V 2.0KW

28100STARTER ASSY

main28100-54070iL..LD10198201-198404

12V 2.0KW,12V 2.0KW

sub28100-54180

28110HOUSING ASSY, STARTER DRIVE

main28115-54070iL..LD10198201-198404

12V 2.0KW

28119COVER, STARTER END FRAME

main28119-54070iL..LD10198201-198404

12V 2.0KW

28120YOKE ASSY, STARTER

main28120-54070iL..LD10198201-198404

12V 2.0KW

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54070iL..LD10198201-198404

12V 2.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-54070iL..LD10198201-198404

12V 2.0KW

28143SPRING, STARTER BRUSH

main90099-17115iL..LD10198201-198404

12V 2.0KW

28150SWITCH ASSY, MAGNET STARTER

main28150-54070iL..LD10198201-198404

12V 2.0KW

sub28150-54110

28160ARMATURE ASSY, STARTER

main28160-54070iL..LD10198201-198404

12V 2.0KW

sub28160-54071

28160ABEARING, STARTER ARMATURE

main28253-54070iL..LD10198201-198404

12V 2.0KW,NO.2

main90099-10131iL..LD10198201-198404

12V 2.0KW,NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040iL..LD10198201-198404

12V 2.0KW

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040iL..LD10198201-198404

12V 2.0KW

28229RETAINER, STARTER IDLE GEAR

main28229-26040iL..LD10198201-198404

12V 2.0KW

28251PINION, STARTER DRIVE

main28251-54070iL..LD10198201-198404

12V 2.0KW

28252GEAR, STARTER IDLE

main28254-54070iL..LD10198201-198404

12V 2.0KW

9009900901

main90099-00901

9009902211

main90099-02211

9009904955

main90099-04955

9009905129

main90099-05129

9009912009

main90099-12009

9009914058

main90099-14058

9011912019

main90119-12019

9017908146

main90179-08146

9411040800

main94110-40800

9411551200

main94115-51200

9451100600

main94511-00600

9451100800

main94511-00800

9671001006

main96710-01006

29 parts on this diagram · 1 diagram in section
