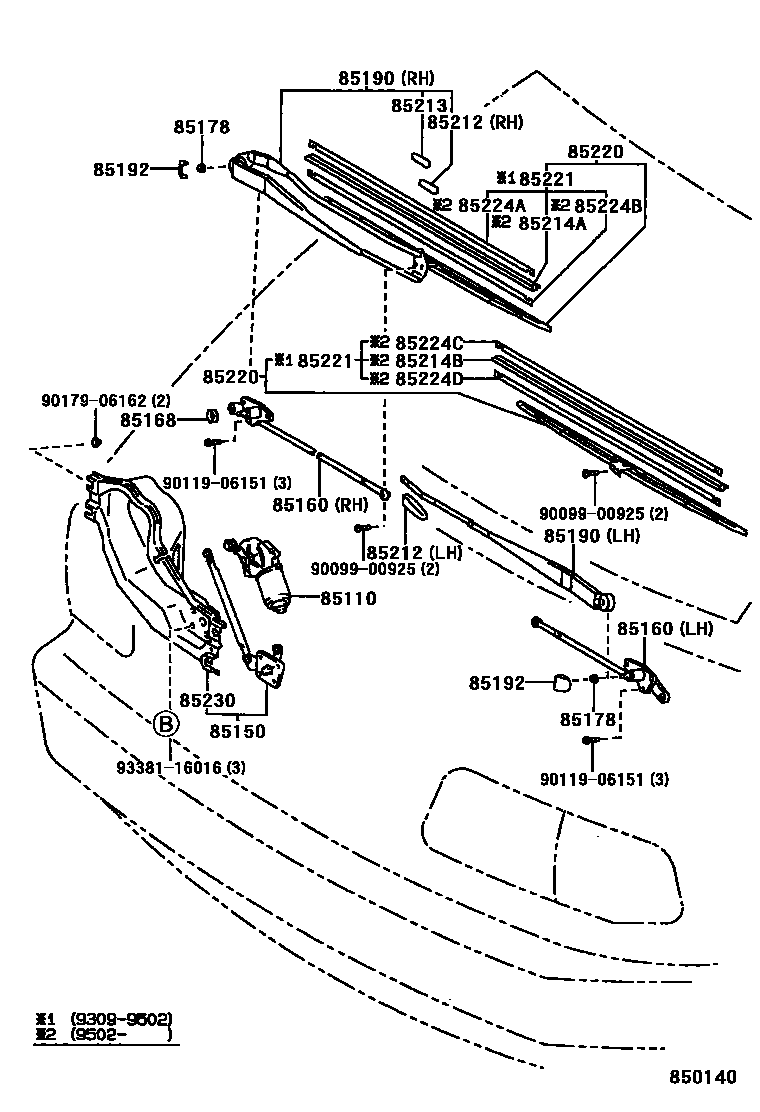

WINDSHIELD WIPER
85150COVER, WINDSHIELD WIPER MOTOR GEAR END
85160LINK ASSY, WINDSHIELD WIPER
LH
RH
RH
85168NUT, WINDSHIELD WIPER LINK PIVOT
85178NUT (FOR FRONT WIPER ARM SETTING)
85190ARM ASSY, WINDSHIELD WIPER
RH
LH
RH
LH
85192COVER, WINDSHIELD WIPER ARM
85212COVER, WIPER ARM PIECE, NO.1
LH
RH
85213COVER, WIPER ARM PIECE, NO.2
85214ARUBBER, WIPER, RH
sub85214-28040
85214BRUBBER, WIPER, LH
sub85214-28040
85220BLADE ASSY, WINDSHIELD WIPER
RH
RH
LH
LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85230BRACKET ASSY, WINDSHIELD WIPER
9009900925
main90099-00925
9011906151
main90119-06151
9017906162
main90179-06162
9338116016
main93381-16016
22 parts on this diagram · 1 diagram in section
