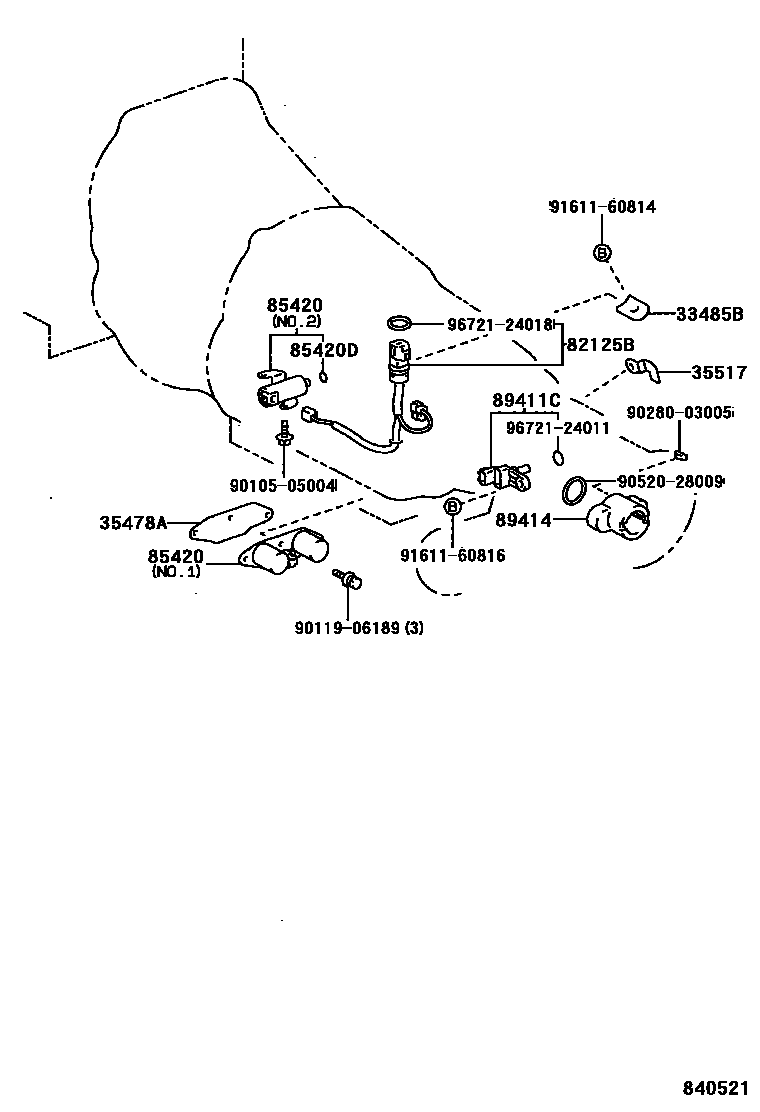

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1

33485BPLATE, TRANSMISSION WIRE

main33485-28010iTCR10,20..ATM..EFI199001-199608

35478AGASKET, SHIFT CONTROL SOLENOID

main35478-30010iTCR10,20..ATM..EFI199001-199608

35517PLATE, TRANSMISSION WIRE LOCK

main35517-26010iTCR10,20..ATM..EFI199001-199608

main35517-28010iTCR20..ATM199001-199308

main35517-50010iTCR10,20..SPC199401-199707

82125BWIRE, TRANSMISSION

main82125-28010iTCR10,20..ATM199001-199508

main82125-30400iTCR10,20..SPC199502-199707

main82125-35120iTCR10,20..SPC199401-199502

85420SOLENOID ASSY, TRANSMISSION

main85420-22080iTCR10,20..SPC199401-199502

NO.1

main85420-30050iTCR10,20..EFI199001-199608

NO.1

main85420-30070iTCR10,20..ATM199001-199608

NO.2

main85420-30110iTCR10,20..SPC199401-199502

NO.2,AISIN

main85420-30120iTCR10,20..SPC199401-199502

NO.2,NIPPONDENSO

main85420-30200iTCR10,20..SPC199502-199707

NO.1

sub85420-21090

main85420-30220iTCR10,20..SPC199502-199707

NO.2

sub85420-30260

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iTCR10,20..ATM..EFI199001-199707

89411CSENSOR, SPEED

main89411-28020iTCR10..ATM199001-199707

main89411-28030iTCR20..ATM199001-199308

main89411-35030iTCR20199308-199707

89414ROTOR, SENSOR

main89414-30011iTCR10..ATM..EFI199001-199608

main89414-30021iTCR10..SPC199401-199707

main89414-35010iTCR20..ATM199001-199707

9010505004

main90105-05004

9011906189

main90119-06189

9028003005

main90280-03005

9052028009

main90520-28009

9161160814

main91611-60814

9161160816

main91611-60816

9672124011

main96721-24011

9672124018

main96721-24018

16 parts on this diagram · 4 diagrams in section
