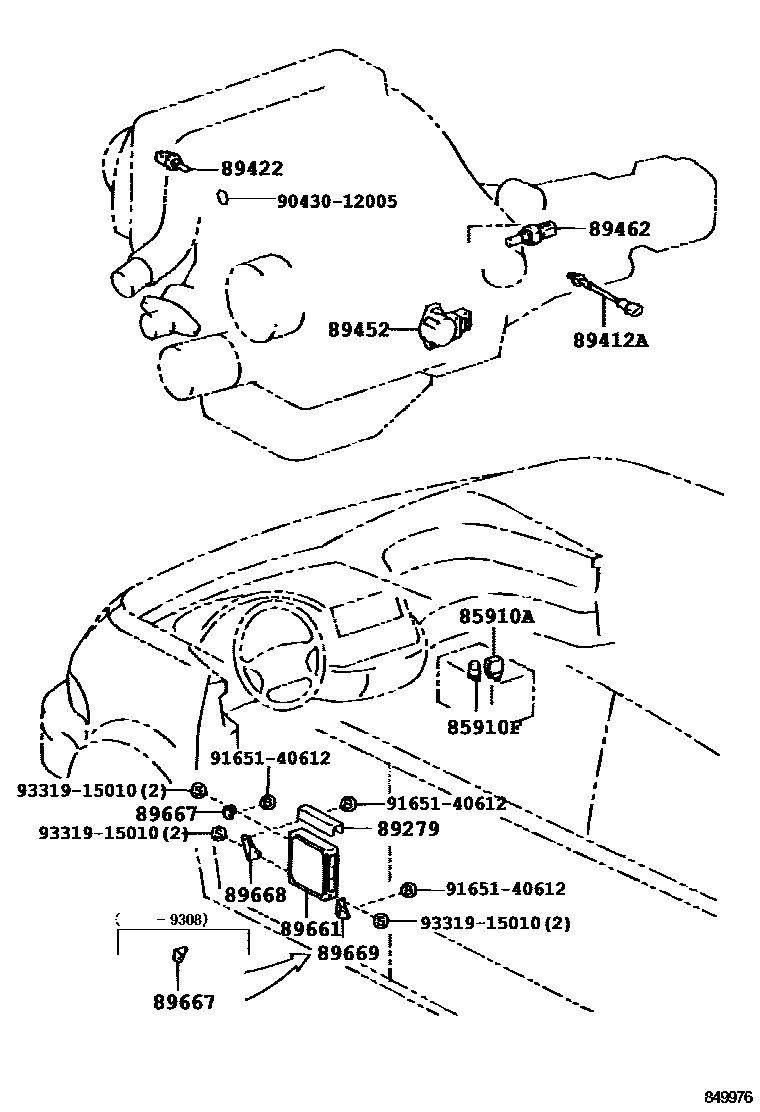

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iTCR10,20199001-199707

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iTCR10,20199001-199707

89279COVER, ENGINE CONTROL COMPUTER

main89279-28010iTCR10,20199001-199508

main89279-28040iTCR10,20199508-199707

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iTCR10,20..USA199001-199608

main89412-12010iTCR10,20..EFI199408-199608

NIPPONDENSO

main89412-28010iTCR10,20..SPC199401-199707

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iTCR10,20199001-199707

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iTCR10,20199001-199401

main89452-22090iTCR10,20199401-199707

89462SWITCH, START INJECTOR TIME

main89462-20020iTCR10,20..EFI199001-199608

89661COMPUTER, ENGINE CONTROL

main89661-28110iTCR10,20..MTM199001-199009

sub89661-28111

main89661-28111iTCR10,20..MTM199009-199308

main89661-28120iTCR10,20..ATM199001-199009

sub89661-28121

main89661-28121iTCR10,20..ATM199009-199308

main89661-28130iTCR10,20..MTM..USA199001-199009

CALIFORNIA SPEC

sub89661-28131

main89661-28131iTCR10,20..MTM..USA199009-199308

CALIFORNIA SPEC

main89661-28140iTCR10,20..ATM..USA199001-199009

CALIFORNIA SPEC

sub89661-28141

main89661-28141iTCR10,20..ATM..USA..EFI199009-199408

CALIFORNIA SPEC

main89661-28320iTCR10,20..EFI199308-199608

main89661-28340iTCR10..07S..USA199301-199308

CHINA SPEC

main89661-28350iTCR10,20..SPC199401-199408

main89661-28351iTCR10,20..SPC199408-199503

main89661-28352iTCR10,20..SPC199503-199508

main89661-28600iTCR10,20..SPC199508-199608

NIPPONDENSO

main89661-28610iTCR10,20..SPC199508-199608

TOYOTA

sub89661-28600

main89661-28790iTCR10,20199608-199707

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-28020iTCR10,20199001-199707

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-28010iTCR10,20199001-199308

main89668-28040iTCR10,20199308-199707

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89667-28020iTCR10,20199001-199308

main89669-28030iTCR10,20..EFI199308-199608

main89669-28040iTCR10,20..SPC199401-199707

9043012005

main90430-12005

9165140612

main91651-40612

9331915010

main93319-15010

14 parts on this diagram · 1 diagram in section
