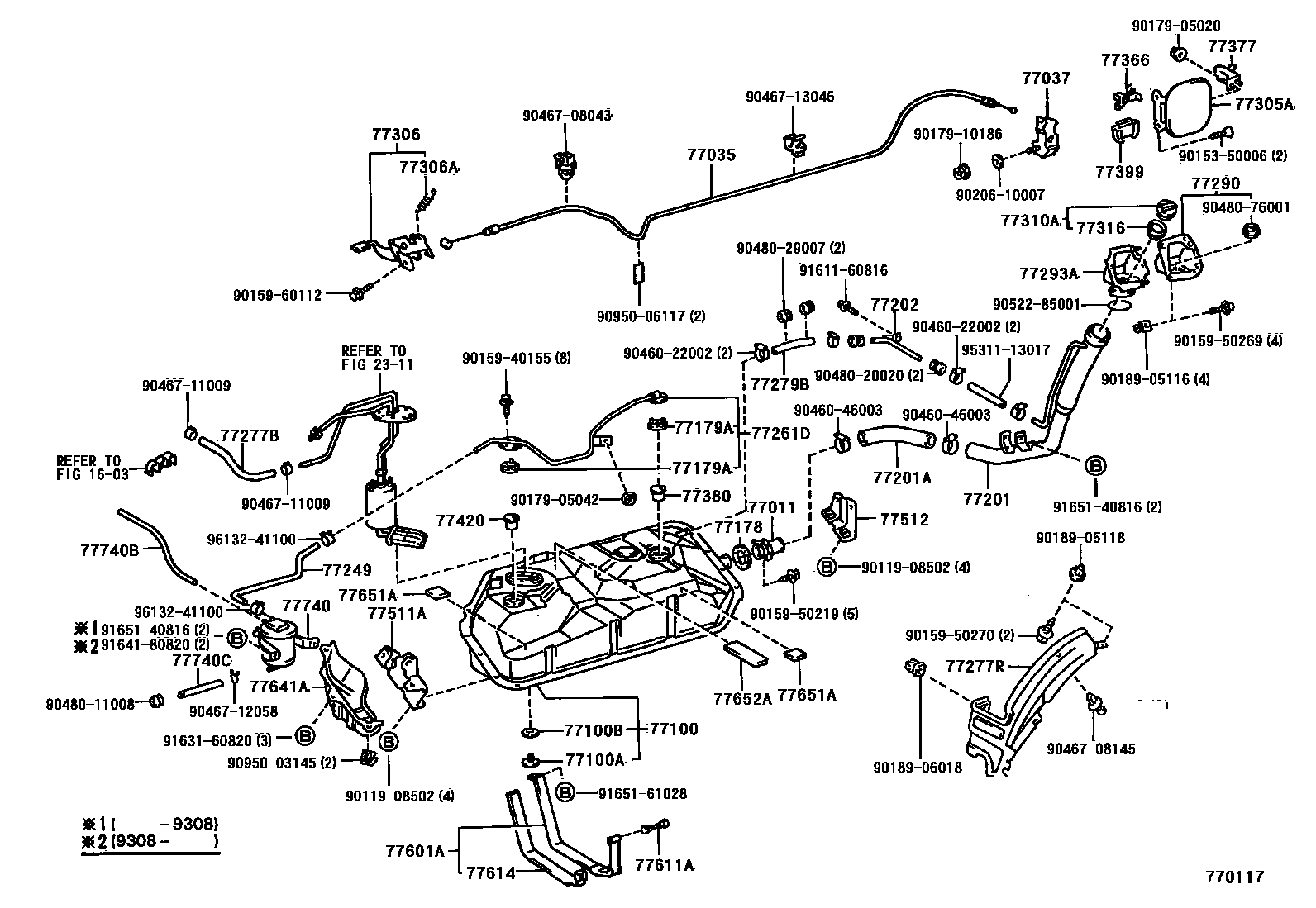

FUEL TANK & TUBE
1603
2311
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
CHINA SPEC
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77202TUBE SUB-ASSY, BREATHER
77249HOSE, FUEL EMISSION
77261DTUBE, FUEL TANK TO CANISTER
77277BHOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
L=260
77277RPROTECTOR, FUEL TANK FILLER PIPE
77279BHOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.3)
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77305ALID SUB-ASSY, FUEL FILLER OPENING
77306LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306ASPRING, FUEL LID OPEN LEVER
77310ACAP ASSY, FUEL TANK
GENERAL EXPORT UNLEADED SPEC OR BRAZIL SPEC
77316GASKET, FUEL TANK CAP
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77399HANGER, FUEL TANK CAP
77420VALVE ASSY, FUEL CUT OFF, NO.2
77511ABRACKET, FUEL TANK
77512BRACKET, FUEL TANK, REAR
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77611APIN (FOR FUEL TANK BAND)
77614SEAT, FUEL TANK BAND
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77740CANISTER ASSY, CHARCOAL
77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
*H,L=220,MARK=#*
*H,L=240,MARK=#*
77740CHOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
9011908502
9015350006
9015940155
9015950219
9015950269
9015950270
9015960112
9017905020
9017905042
9017910186
9018905116
9018905118
9018906018
9020610007
9046022002
9046046003
9046708043
9046708145
9046711009
9046712058
9046713046
9048011008
9048020020
9048029007
9048076001
9052285001
9095003145
9095006117
9161160816
9163160820
9164180820
9165140816
9165161028
9531113017
9613241100
76 parts on this diagram · 1 diagram in section
