BACK DOOR PANEL & GLASS

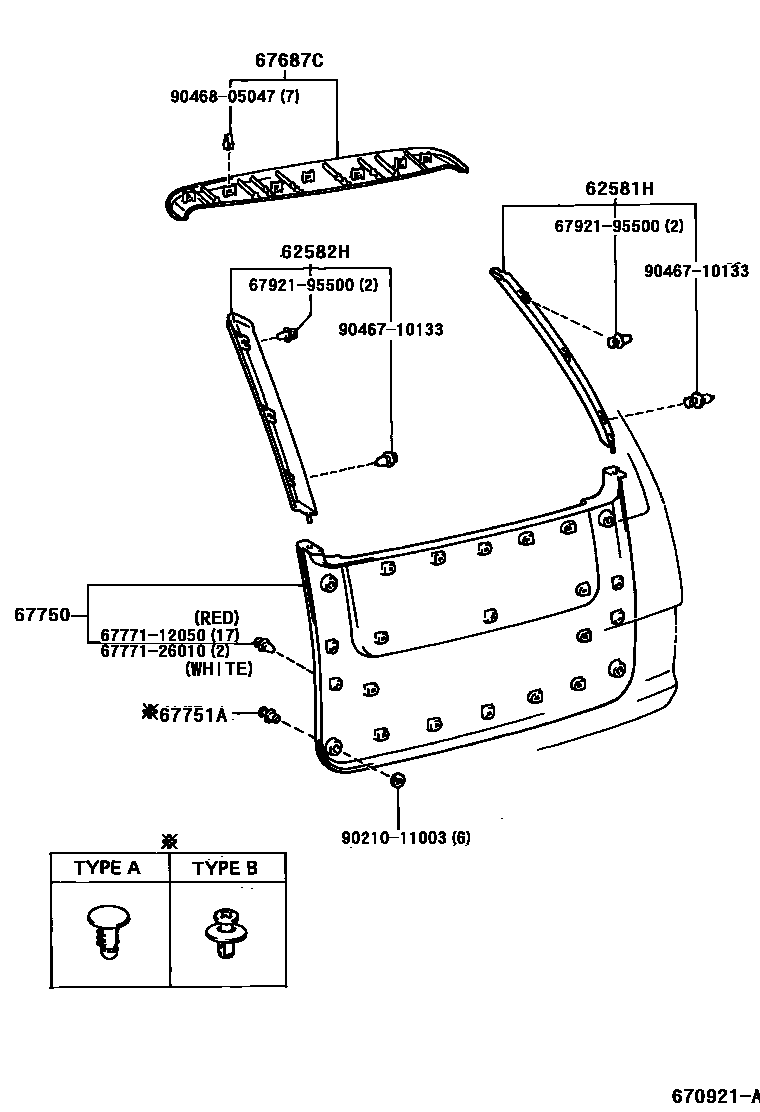

Parts diagram
62581HGARNISH, REAR WINDOW SIDE, RH
main62581-95D00-03i199001-199308
W(REAR WINDOW DEFOGGER),LIGHT GRAY,TRIM1#
sub62581-95D00
sub62581-95D02
main62581-95D00-04i199001-199308
W(REAR WINDOW DEFOGGER),LIGHT BLUE,TRIM8#
sub62581-95D00
sub62581-95D02
main62581-95D00-05i199108-199308
W(REAR WINDOW DEFOGGER),LIGHT GREIGE,TRIM4#
sub62581-95D00
sub62581-95D02
main62581-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub62581-95D00
sub62581-95D02
main62581-95D00-06i199001-199108
W(REAR WINDOW DEFOGGER),LIGHT TAN,TRIM4#
sub62581-95D00
sub62581-95D02
main62581-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub62581-95D00
sub62581-95D02
main62581-95D00-B8i199308-199707
GRAY,TRIM1#
sub62581-95D00
sub62581-95D02
main62581-95D00-L1i199308-199707
GREIGE,TRIM4#
sub62581-95D00
sub62581-95D02
main62581-95D00-R4i199308-199408
BLUE,TRIM8#
sub62581-95D00
sub62581-95D02
main62581-95D01-03i199001-199308
LIGHT GRAY,TRIM1#
sub62581-95D02
main62581-95D01-04i199001-199308
LIGHT BLUE,TRIM8#
sub62581-95D02
main62581-95D01-06i199001-199108
LIGHT TAN,TRIM4#
sub62581-95D02
main62581-95D01-L1i199108-199308
LIGHT GREIGE,TRIM4#
sub62581-95D02
main62581-95D02-03i199001-199308
W(SPEAKER),LIGHT GRAY,TRIM1#
sub62581-95D02
sub62581-28030
main62581-95D02-03i199001-199108
W(REAR WINDOW DEFOGGER & SPEAKER),LIGHT GRAY,TRIM1#
sub62581-95D02
sub62581-28030
main62581-95D02-04i199001-199308
W(SPEAKER),LIGHT BLUE,TRIM8#
sub62581-95D02
sub62581-28030
main62581-95D02-04i199001-199108
W(REAR WINDOW DEFOGGER & SPEAKER),LIGHT BLUE,TRIM8#
sub62581-95D02
sub62581-28030
main62581-95D02-05i199108-199308
W(SPEAKER),LIGHT GREIGE,TRIM4#
sub62581-95D02
sub62581-28030
main62581-95D02-06i199001-199108
W(SPEAKER),LIGHT TAN,TRIM4#
sub62581-95D02
sub62581-28030
main62581-95D02-06i199001-199108
W(REAR WINDOW DEFOGGER & SPEAKER),LIGHT TAN,TRIM4#
sub62581-95D02
sub62581-28030
main62581-95D02-B8i199308-199707
W(SPEAKER),GRAY,TRIM1#
sub62581-95D02
sub62581-28030
main62581-95D02-L1i199308-199707
W(SPEAKER),GREIGE,TRIM4#
sub62581-95D02
sub62581-28030
main62581-95D02-R4i199308-199408
W(SPEAKER),BLUE,TRIM8#
sub62581-95D02
sub62581-28030
62582HGARNISH, REAR WINDOW SIDE, LH
main62582-95D00-03i199001-199308
W(REAR WINDOW DEFOGGER),LIGHT GRAY,TRIM1#
sub62582-95D00
sub62582-28010
main62582-95D00-04i199001-199308
W(REAR WINDOW DEFOGGER),LIGHT BLUE,TRIM8#
sub62582-95D00
sub62582-28010
main62582-95D00-05i199108-199308
W(REAR WINDOW DEFOGGER),LIGHT GREIGE,TRIM4#
sub62582-95D00
sub62582-28010
main62582-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub62582-95D00
sub62582-28010
main62582-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub62582-95D00
sub62582-28010
main62582-95D00-06i199001-199108
W(REAR WINDOW DEFOGGER),LIGHT TAN,TRIM4#
sub62582-95D00
sub62582-28010
main62582-95D00-B8i199308-199707
GRAY,TRIM1#
sub62582-95D00
sub62582-28010
main62582-95D00-L1i199308-199707
GREIGE,TRIM4#
sub62582-95D00
sub62582-28010
main62582-95D00-R4i199308-199408
BLUE,TRIM8#
sub62582-95D00
sub62582-28010
main62582-95D01-03i199001-199308
LIGHT GRAY,TRIM1#
sub62582-95D01
sub62582-95D00
main62582-95D01-04i199001-199308
LIGHT BLUE,TRIM8#
sub62582-95D01
sub62582-95D00
main62582-95D01-05i199108-199308
LIGHT GREIGE,TRIM4#
sub62582-95D01
sub62582-95D00
main62582-95D01-06i199001-199108
LIGHT TAN,TRIM4#
sub62582-95D01
sub62582-95D00
67687CGARNISH, BACK WINDOW
main67687-95D00-03i199001-199308
LIGHT GRAY,TRIM1#
sub67687-95D00
main67687-95D00-04i199001-199308
LIGHT BLUE,TRIM8#
sub67687-95D00
main67687-95D00-05i199108-199308
LIGHT GREIGE,TRIM4#
sub67687-95D00
main67687-95D00-06i199001-199108
LIGHT TAN,TRIM4#
sub67687-95D00
main67687-95D00-B8i199308-199707
GRAY,TRIM1#
sub67687-95D00
main67687-95D00-L1i199308-199707
GREIGE,TRIM4#
sub67687-95D00
main67687-95D00-R4i199308-199408
BLUE,TRIM8#
sub67687-95D00
67750BOARD ASSY, BACK DOOR TRIM
main67750-28030-B0i199308-199707
GRAY,TRIM1#
main67750-28030-E0i199308-199707
GREIGE,TRIM4#
main67750-28030-J0i199308-199408
BLUE,TRIM8#
main67750-95D01-03i199108-199308
GRAY,TRIM1#
sub67750-28030
sub67761-28010
main67750-95D01-05i199108-199308
GREIGE,TRIM4#
sub67750-28030
sub67761-28010
main67750-95D01-J0i199108-199308
BLUE,TRIM8#
sub67750-28030
sub67761-28010
main67750-95D04-03i199001-199108
GRAY,TRIM1#
sub67750-28040
sub67761-28010
main67750-95D04-03i199302-199308
CHINA SPEC,GRAY,TRIM1#
sub67750-28040
sub67761-28010
main67750-95D04-04i199001-199108
BLUE,TRIM8#
sub67750-28040
sub67761-28010
main67750-95D04-05i199302-199308
CHINA SPEC,GREIGE,TRIM4#
sub67750-28040
sub67761-28010
main67750-95D04-06i199001-199108
TAN,TRIM4#
sub67750-28040
sub67761-28010
67751ACLIP(FOR BACK DOOR TRIM BOARD)
main90467-08055i199001-199004
TYPE B
main90467-08144-03i199004-199111
LIGHT GRAY,TRIM1#,TYPE B
sub90467-08144
main90467-08144-04i199004-199111
LIGHT BLUE,TRIM8#,TYPE B
sub90467-08144
main90467-08144-05i199108-199111
LIGHT GREIGE,TRIM4#,TYPE B
sub90467-08144
main90467-08144-06i199004-199108
LIGHT TAN,TRIM4#,TYPE B
sub90467-08144
main90467-08157-B0i199111-199707
GRAY,TRIM1#
sub90467-08157
main90467-08157-E1i199111-199707
GREIGE,TRIM4#
sub90467-08157
main90467-08157-J0i199111-199408
BLUE,TRIM8#
sub90467-08157
main90467-10034-10i199004-199108
TAN,TRIM4#,TYPE A
sub90467-10034
main90467-10034-10i199001-199004
TAN,TRIM4#
sub90467-10034
main90467-10034-23i199001-199004
GRAY,TRIM1#
sub90467-10034
main90467-10034-23i199004-199111
GRAY,TRIM1#,TYPE A
sub90467-10034
main90467-10034-35i199108-199111
GREIGE,TRIM4#,TYPE A
sub90467-10034
main90467-10034-44i199001-199004
BLUE,TRIM8#
sub90467-10034
main90467-10034-44i199004-199111
BLUE,TRIM8#,TYPE A
sub90467-10034
6777112050WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-12050
6777126010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-26010
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9021011003
main90210-11003
9046710133
main90467-10133
9046805047
main90468-05047

11 parts on this diagram · 2 diagrams in section
