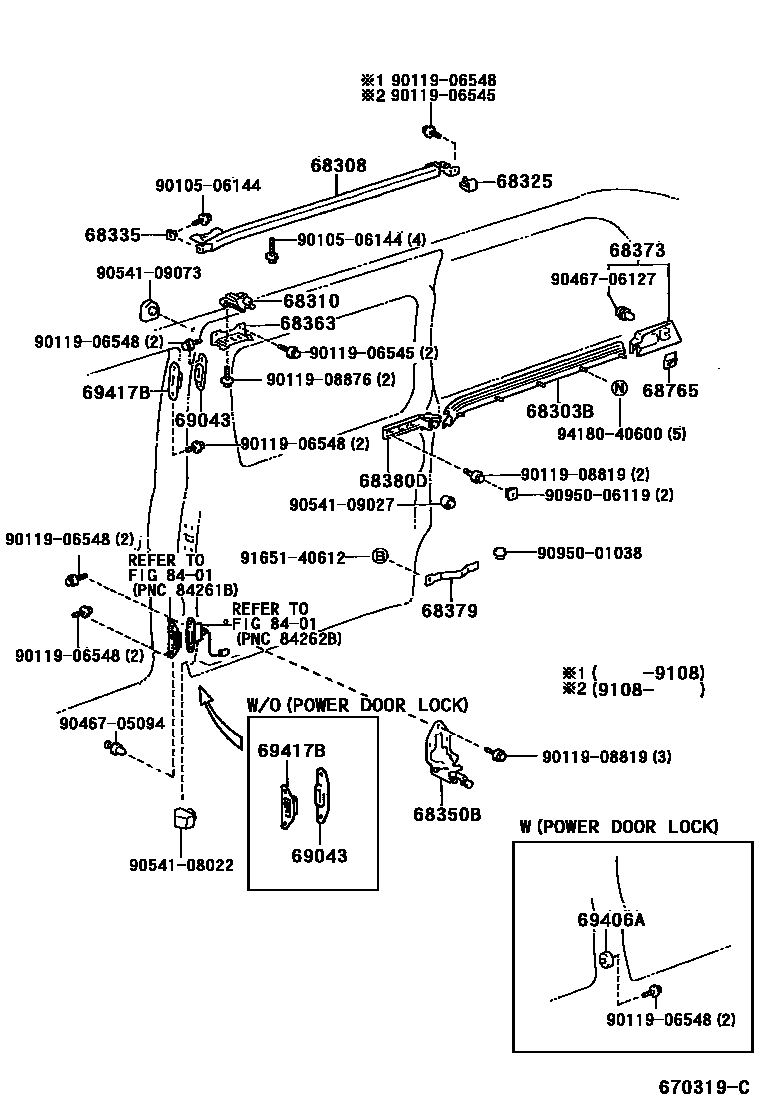

SLIDE ROLLER & RAIL
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
W(BLACK PAINTED)
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68310ROLLER ASSY, SLIDE DOOR, UPPER
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68335PAD, SLIDE DOOR UPPER RAIL
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68363BRACKET, SLIDE DOOR UPPER ROLLER
68373MOULDING, SLIDE RAIL END, RH
W(BLACK PAINTED)
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
68765BRACKET, SLIDE DOOR RAIL END MOULDING, RH
69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
W(POWER DOOR LOCK)
W(THEFT-DETERRENT SYSTEM OR POWER WINDOW)
W(THEFT-DETERRENT SYSTEM OR POWER DOOR LOCK)
69406ASTOP SUB-ASSY, SLIDE DOOR DOWN MALE
69417BSTOPPER, SLIDE DOOR DOWN MALE, LOWER RH
UPPER
W(POWER DOOR LOCK)
LOWER
8401
9010506144
main90105-06144
9011906545
main90119-06545
9011906548
main90119-06548
9011908819
main90119-08819
9011908876
main90119-08876
9046705094
main90467-05094
9046706127
main90467-06127
9054108022
main90541-08022
9054109027
main90541-09027
9054109073
main90541-09073
9095001038
main90950-01038
9095006119
main90950-06119
9165140612
main91651-40612
9418040600
main94180-40600
29 parts on this diagram · 1 diagram in section
