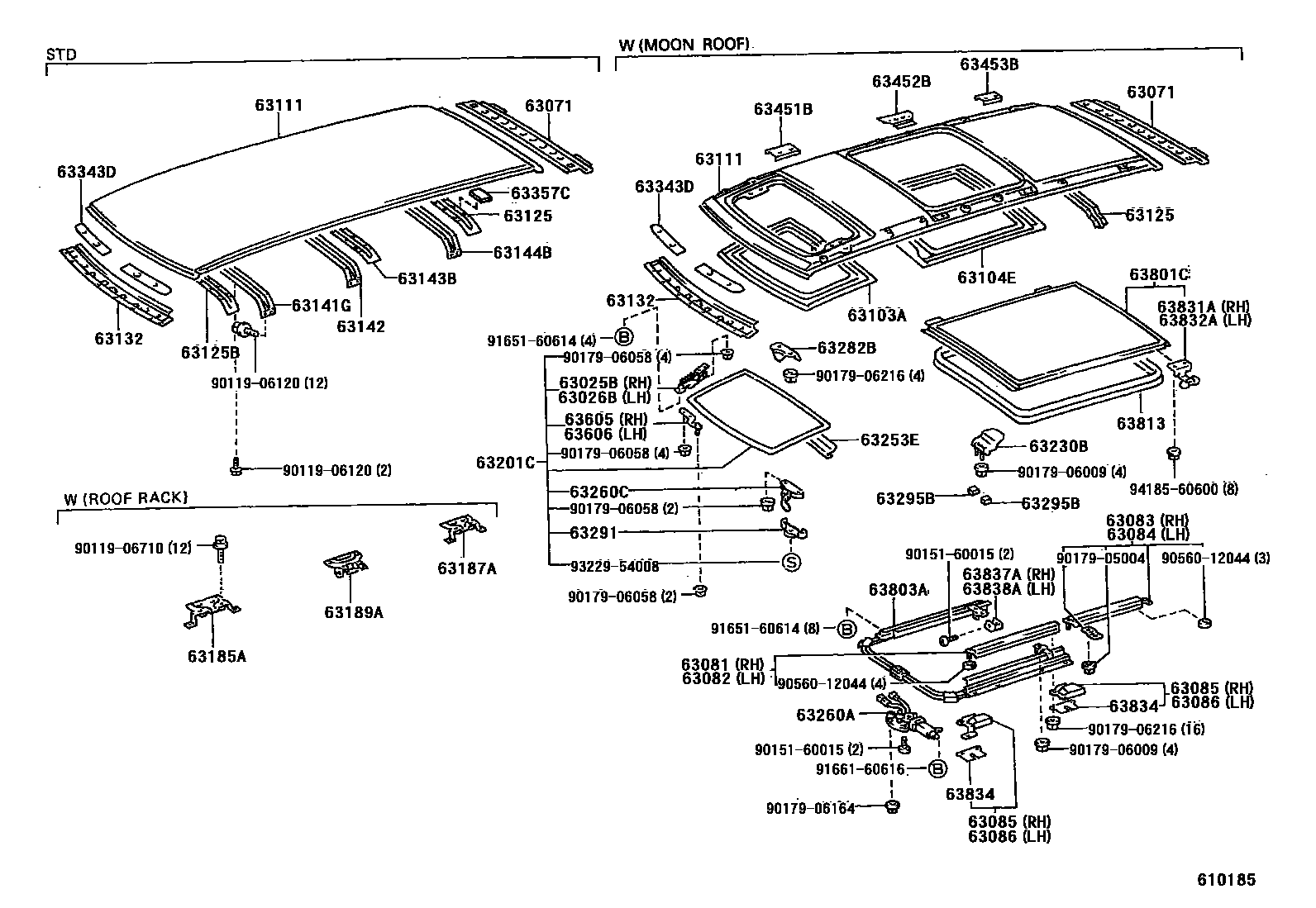

ROOF PANEL & BACK PANEL

63025BLINK SUB-ASSY, TILT ROOF, RH

main63025-95D00iTCR10..07S199001-199707

63026BLINK SUB-ASSY, TILT ROOF, LH

main63026-95D00iTCR10..07S199001-199707

63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER

main63071-95D00iTCR10,20199001-199707

63081RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT RH

main63081-28020iTCR10..07S199608-199707

main63081-95D00iTCR10..07S199001-199608

63082RAIL SUB-ASSY, REAR SLIDE ROOF, FRONT LH

main63082-28020iTCR10..07S199608-199707

main63082-95D00iTCR10..07S199001-199608

63083RAIL SUB-ASSY, REAR SLIDE ROOF, REAR RH

main63083-28030iTCR10..07S199608-199707

main63083-95D00iTCR10..07S199001-199608

63084RAIL SUB-ASSY, REAR SLIDE ROOF, REAR LH

main63084-28030iTCR10..07S199608-199707

main63084-95D00iTCR10..07S199001-199608

63085GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, RH

main63085-28020iTCR10..07S199608-199707

FRONT

main63085-95D00iTCR10..07S199001-199608

FRONT

main63085-95D01iTCR10..07S199001-199707

REAR

63086GUIDE SUB-ASSY, REAR SLIDE ROOF LIFT, LH

main63086-28020iTCR10..07S199608-199707

FRONT

main63086-95D00iTCR10..07S199001-199608

FRONT

main63086-95D01iTCR10..07S199001-199707

REAR

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-95D00iTCR10..07S199001-199707

63104EREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63104-28030iTCR10..07S199608-199707

main63104-95D00iTCR10..07S199001-199608

sub63104-28030

63111PANEL, ROOF

main63111-28050iTCR10,20199207-199707

sub63111-28051

sub63132-28050

sub63132-28060

main63111-28150iTCR10..07S199608-199707

W(MOON ROOF)

main63111-95D01iTCR10,20199001-199207

sub63111-28050

sub75555-28010

sub75556-28010

sub90179-05020

main63111-95D02iTCR10..07S199001-199608

W(SUNROOF)

sub63111-28150

sub90333-25003

63125REINFORCEMENT, ROOF PANEL, NO.2

main63125-95D00iTCR10,20199001-199707

main63125-95D01iTCR10..07S199001-199707

W(TWIN SUN ROOF)

63125BREINFORCEMENT, ROOF PANEL, FRONT

main63122-95D00iTCR10,20199001-199707

63132PANEL, WINDSHIELD HEADER, INNER

main63132-95D00iTCR10,20199001-199707

sub63132-28050

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-95D01iTCR10,20199001-199707

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-95D00iTCR10,20199001-199707

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-95D00iTCR10,20199001-199707

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-95D00iTCR10,20199001-199707

63185ABRACKET, ROOF RACK, FRONT RH

main63185-28010iTCR10..07S199001-199707

63187ABRACKET, ROOF RACK, REAR

main63187-28010iTCR10..07S199001-199707

63189ABRACKET, ROOF RACK, CENTER

main63189-28010iTCR10..07S199001-199707

63201CGLASS SUB-ASSY, TILT ROOF

main63201-28180iTCR10..07S199308-199707

*LAM,T=4.7,CLEAR

main63201-95D00iTCR10..07S199001-199308

*TL,T=4.7

63230BPANEL ASSY, ROOF WIND DEFLECTOR

main63230-28010iTCR10..07S199001-199707

63253EDAM, ROOF WINDOW, NO.3

main63253-28010iTCR10..07S199001-199305

sub63253-28011

main63253-28011iTCR10..07S199305-199707

63260AGEAR SUB-ASSY, SLIDING ROOF DRIVE

main63260-28050iTCR10..07S199104-199608

main63260-28080iTCR10..07S199608-199707

main63260-95D00iTCR10..07S199001-199104

sub63260-28050

63260CHANDLE ASSY, TILT ROOF LOCK

main63260-95D01iTCR10..07S199001-199707

63282BSTRIKER, TILT ROOF LOCK

main63282-95D00iTCR10..07S199001-199707

63291GARNISH, ROOF WINDOW LOCK, OUTER

main63291-95D00iTCR10..07S199001-199707

63295BPAD, ROOF WIND DEFLECTOR PANEL

main63295-28020iTCR10..07S199001-199707

63343DPAD, ROOF SILENCER, NO.3

main63343-95D00iTCR10,20199001-199707

63357CSILENCER, ROOF

main63357-28010iTCR10,20199308-199707

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-28020iTCR10..07S199001-199707

63452BREINFORCEMENT, ROOF RACK, NO.2

main63452-28010iTCR10..07S199001-199707

63453BREINFORCEMENT, ROOF RACK, NO.3

main63453-28010iTCR10..07S199001-199707

63605HINGE SUB-ASSY, TILT ROOF, RH

main63605-95D00iTCR10..07S199001-199707

63606HINGE SUB-ASSY, TILT ROOF, LH

main63606-95D00iTCR10..07S199001-199707

63801CGLASS SUB-ASSY, REAR SLIDE ROOF

main63801-28060iTCR10..07S199308-199707

*LAM,T=4.7,CLEAR

main63801-95D00iTCR10..07S199001-199308

*TL,T=4.7,BLUE

63803ACABLE SUB-ASSY, REAR SLIDE ROOF DRIVE

main63803-95D00iTCR10..07S199001-199707

63813WEATHERSTRIP, REAR SLIDE ROOF

main63813-28020iTCR10..07S199205-199707

main63813-95D00iTCR10..07S199001-199205

sub63813-28020

63831ASHOE, REAR SLIDE ROOF, RH

main60383-28020iTCR10..07S199001-199707

63832ASHOE, REAR SLIDE ROOF, LH

main60384-28020iTCR10..07S199001-199707

63834PACKING, REAR SLIDE ROOF GUIDE

main63834-28010iTCR10..07S199608-199707

W(SUN ROOF & ROOF RAIL)

main63834-95D00iTCR10..07S199004-199707

63837AGARNISH, REAR SLIDE ROOF, RH

main63837-95D00iTCR10..07S199001-199707

63838AGARNISH, REAR SLIDE ROOF, LH

main63838-95D00iTCR10..07S199001-199707

9011906120

main90119-06120

9011906710

main90119-06710

9015160015

main90151-60015

9017905004

main90179-05004

9017906009

main90179-06009

9017906058

main90179-06058

9017906164

main90179-06164

9017906216

main90179-06216

9056012044

main90560-12044

9165160614

main91651-60614

9166160616

main91661-60616

9322954008

main93229-54008

9418560600

main94185-60600

58 parts on this diagram · 1 diagram in section
