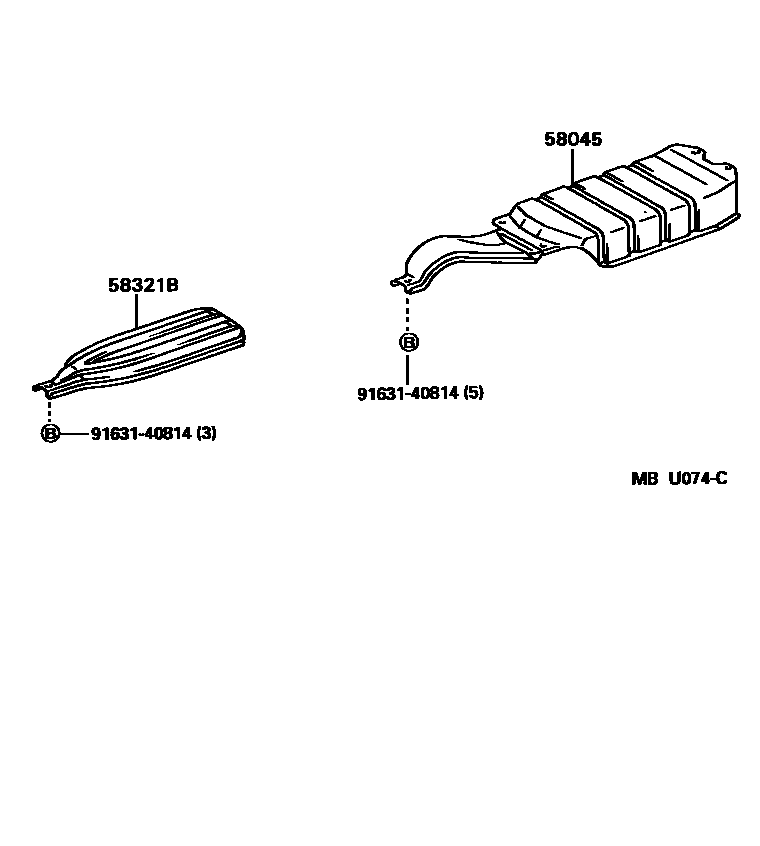

FLOOR INSULATOR

0001 1 0002 1

58045INSULATOR SUB-ASSY, REAR FLOOR HEAT

main58045-95D00iTCR10,20..EFI¥7,900199001-199608

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58041-28020iTCR10,20..SPC¥6,800199401-199707

main58321-95D02iTCR10,20..EFI¥5,200199001-199608

9163140814

main91631-40814¥130

3 parts on this diagram · 2 diagrams in section
