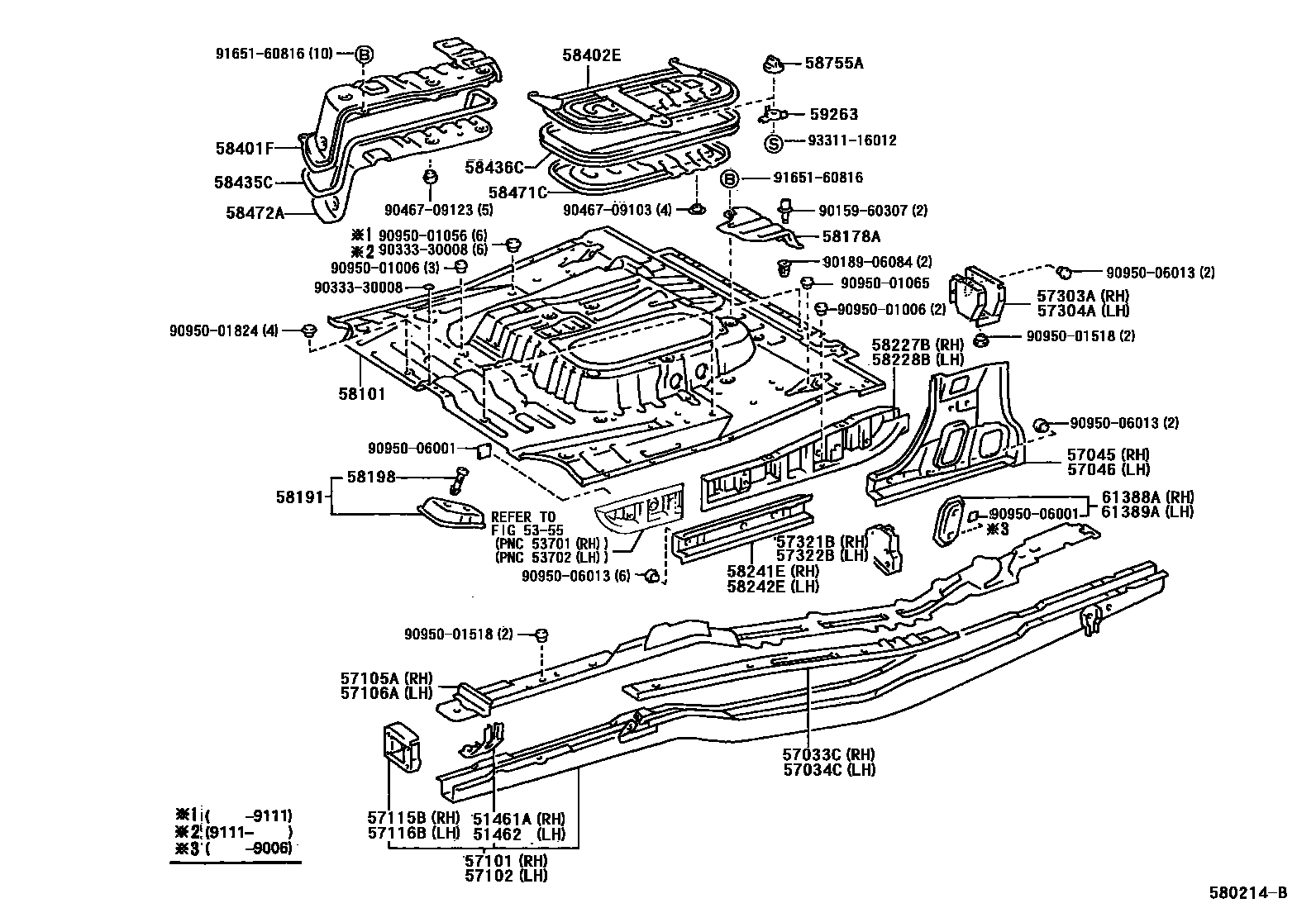

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51461ABRACKET, RADIATOR MOUNTING, LOWER RH

main51461-95D00iTCR20;TCR10..EFI;TCR10..USA..SPC199001-199707

51462BRACKET, RADIATOR MOUNTING, LOWER LH

main51462-95D00iTCR20;TCR10..EFI;TCR10..USA..SPC199001-199707

5355

57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH

main57033-95D01iTCR20;TCR10..EFI;TCR10..USA..SPC199001-199707

57034CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 LH

main57034-95D01iTCR20;TCR10..EFI;TCR10..USA..SPC199001-199707

57045PLATE SUB-ASSY, FLOOR SIDE RAIL, RH

main57045-28090iTCR10,20199604-199707

main57045-95D00iTCR10,20199001-199604

57046PLATE SUB-ASSY, FLOOR SIDE RAIL, LH

main57046-28040iTCR10,20..05S199604-199707

DUAL AIR CONDITIONER

main57046-28140iTCR10,20..05S199604-199707

main57046-95D00iTCR10..05S;TCR20..05S..USA199405-199604

DUAL AIR CONDITIONER

main57046-95D00iTCR10,20199001-199405

main57046-95D02iTCR10..05S;TCR20..05S..USA199405-199604

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28150iTCR10,20199108-199308

sub57101-28161

main57101-28151iTCR10,20..USA199308-199707

sub57101-28480

main57101-28480iTCR20..CND;TCR10..CND..EFI199308-199707

main57101-95D17iTCR10,20199001-199108

sub57101-28150

sub52021-28110

sub57105-28030

sub91651-40820

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28120iTCR10,20199108-199308

sub57102-28320

main57102-28121iTCR10,20..USA199308-199707

sub57102-28310

main57102-28310iTCR20..CND;TCR10..CND..EFI199308-199707

main57102-95D13iTCR10,20199001-199108

sub57102-28120

sub52022-28030

sub57106-28040

sub91651-40820

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-28030iTCR20;TCR10..EFI;TCR10..USA..SPC199108-199707

main57105-95D01iTCR10,20199001-199108

sub57105-28060

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28030iTCR20;TCR10..EFI;TCR10..USA..SPC199108-199707

main57106-95D01iTCR10,20199001-199108

sub57106-28060

57115BPLATE, FRONT SIDE MEMBER, NO.1 RH

main57115-28040iTCR10,20199108-199308

main57115-28041iTCR10,20199308-199707

main57115-95D00iTCR10,20199001-199108

57116BPLATE, FRONT SIDE MEMBER, NO.1 LH

main57115-28040iTCR10,20199108-199308

main57115-28041iTCR10,20199308-199707

main57115-95D00iTCR10,20199001-199108

57303AOUTRIGGER SUB-ASSY, NO.2 RH

main57303-95D00iTCR10,20199001-199707

sub57303-28020

sub91651-40816

57304AOUTRIGGER SUB-ASSY, NO.2 LH

main57304-95D00iTCR10,20199001-199707

sub57304-28010

sub91651-40816

57321BOUTRIGGER, NO.5, RH

main57321-95D00iTCR10,20199001-199707

57322BOUTRIGGER, NO.5, LH

main57322-95D00iTCR10,20199001-199707

58101PAN SUB-ASSY, FRONT FLOOR

main58101-28330iTCR10,20..ATM199001-199108

sub58101-28550

sub90950-01269

main58101-28340iTCR10,20..MTM199001-199108

sub58101-28560

sub90950-01269

main58101-28350iTCR10,20..ATM199001-199108

W(COOL & HOT BOX)

sub58101-2J250

main58101-28360iTCR10,20..MTM199001-199108

W(COOL & HOT BOX)

sub58101-2J260

main58101-28550iTCR10,20..ATM199108-199508

sub58101-28570

sub90333-40001

main58101-28551iTCR10,20199508-199707

sub58101-28571

sub90333-40001

main58101-28560iTCR10,20..MTM199108-199308

main58101-28570iTCR10,20..ATM199108-199508

W(COOL & HOT BOX)

main58101-28571iTCR10..07S..USA..SPC199508-199707

W(COOL & HOT BOX)

58178AEXTENSION, FRONT FLOOR PANEL, LH

main58178-95D01iTCR10,20199001-199707

58191FOOTREST, FRONT FLOOR

main58192-95D00iTCR10,20..07S199001-199707

58198CLIP, FOOTREST

main58198-95D01iTCR10,20..07S199001-199707

58227BPLATE, FRONT FLOOR PANEL SIDE, RH

main58227-95D00iTCR10,20199001-199707

58228BPLATE, FRONT FLOOR PANEL SIDE, LH

main58228-95D02iTCR10,20199001-199707

58241EPANEL, FLOOR SIDE, FRONT RH

main58241-95D00iTCR10,20199001-199707

58242EPANEL, FLOOR SIDE, FRONT LH

main58242-95D00iTCR10,20199001-199707

58401FCOVER SUB-ASSY, ENGINE SERVICE HOLE, RH

main58401-95D00iTCR10,20199001-199707

58402ECOVER SUB-ASSY, ENGINE SERVICE HOLE, LH

main58402-95D00iTCR10,20199001-199707

58435CPACKING, ENGINE SERVICE HOLE COVER, RH

main58435-28030iTCR10,20199108-199112

sub58444-28020

main58435-95D00iTCR10,20199001-199108

sub58435-28030

main58444-28020iTCR10,20199112-199707

sub58444-28010

58436CPACKING, ENGINE SERVICE HOLE COVER, LH

main58436-95D00iTCR10,20199001-199707

58471CSILENCER, ENGINE MAIN COVER

main58471-95D02iTCR10,20199001-199707

58472ASILENCER, ENGINE SUB COVER

main58472-95D00iTCR10,20199001-199707

58755AHANDLE, ENGINE SERVICE COVER CATCH

main58755-95D00iTCR10,20199001-199707

59263HOOK, ENGINE COVER LOCK

main59263-95D00iTCR10,20199001-199707

61388APLATE, CENTER BODY PILLAR END, RH

main61305-28010iTCR10,20199006-199707

main61388-95D00iTCR10,20199001-199006

61389APLATE, CENTER BODY PILLAR END, LH

main61306-28010iTCR10,20199006-199707

main61389-95D00iTCR10,20199001-199006

9015960307

main90159-60307

9018906084

main90189-06084

9033330008

main90333-30008

9046709103

main90467-09103

9046709123

main90467-09123

9095001006

main90950-01006

9095001056

main90950-01056

9095001065

main90950-01065

9095001518

main90950-01518

9095001824

main90950-01824

9095006001

main90950-06001

9095006013

main90950-06013

9165160816

main91651-60816

9331116012

main93311-16012

49 parts on this diagram · 1 diagram in section
