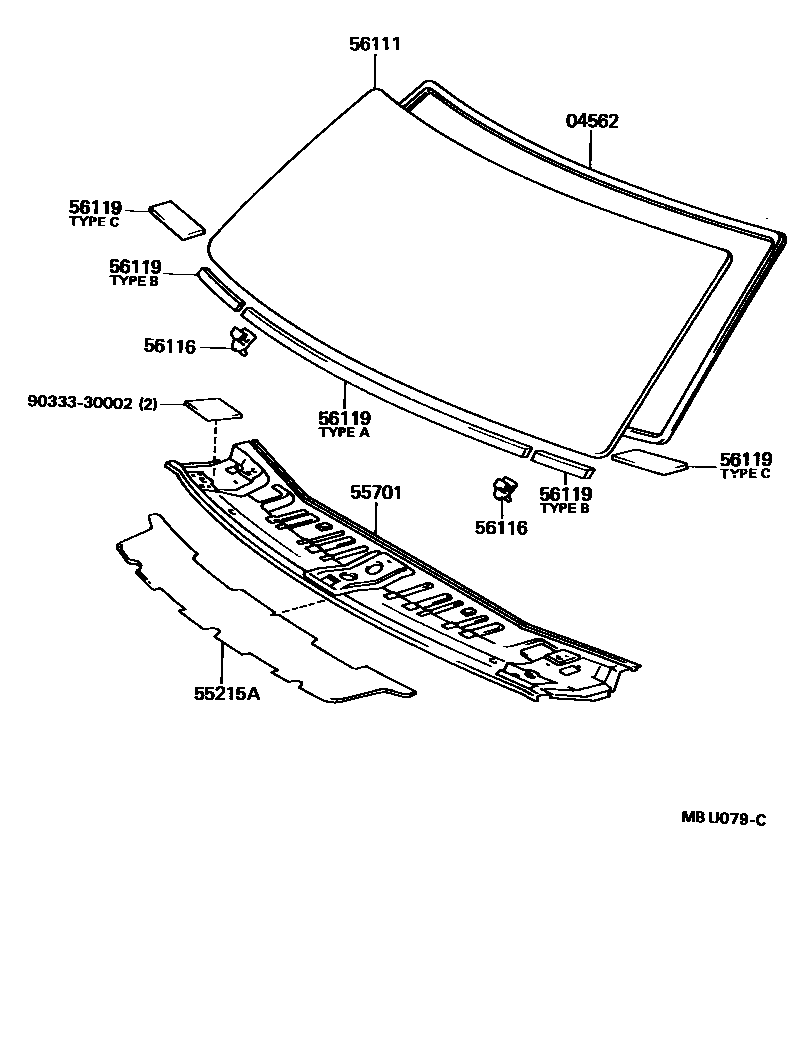

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-28020iTCR10,20199001-199707

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-95D00iTCR10,20..EFI199001-199608

55701PANEL SUB-ASSY, COWL

main55701-95D02iTCR10,20199001-199707

56111GLASS, WINDSHIELD

main56111-28280iTCR10,20..05S199608-199707

*LAM,T=5.3,GREEN

main56111-95D00iTCR10,20..05S199001-199108

*LAM,T=5.3

sub56111-95D01

main56111-95D01iTCR10,20199001-199707

*TL,T=5.3,BLUE

main56111-95D03iTCR20;TCR10..07S;TCR10..05S..USA199001-199707

*LAM,T=5.3,BRONZE

main56111-95D08iTCR20;TCR10..07S;TCR10..05S..USA199001-199707

*LAM,T=5.3,GRAY

sub56111-95D03

56116SPACER, WINDSHIELD GLASS

main56116-20070iTCR10,20199011-199502

main56116-20080iTCR10,20199001-199011

main56116-28030iTCR10,20199502-199707

56119SEAL, WINDSHIELD GLASS

main56119-28010iTCR10,20199001-199707

TYPE A

main56119-28020iTCR10,20199001-199707

TYPE B

main56119-28030iTCR10,20199001-199707

TYPE C

9033330002

main90333-30002

7 parts on this diagram · 1 diagram in section
