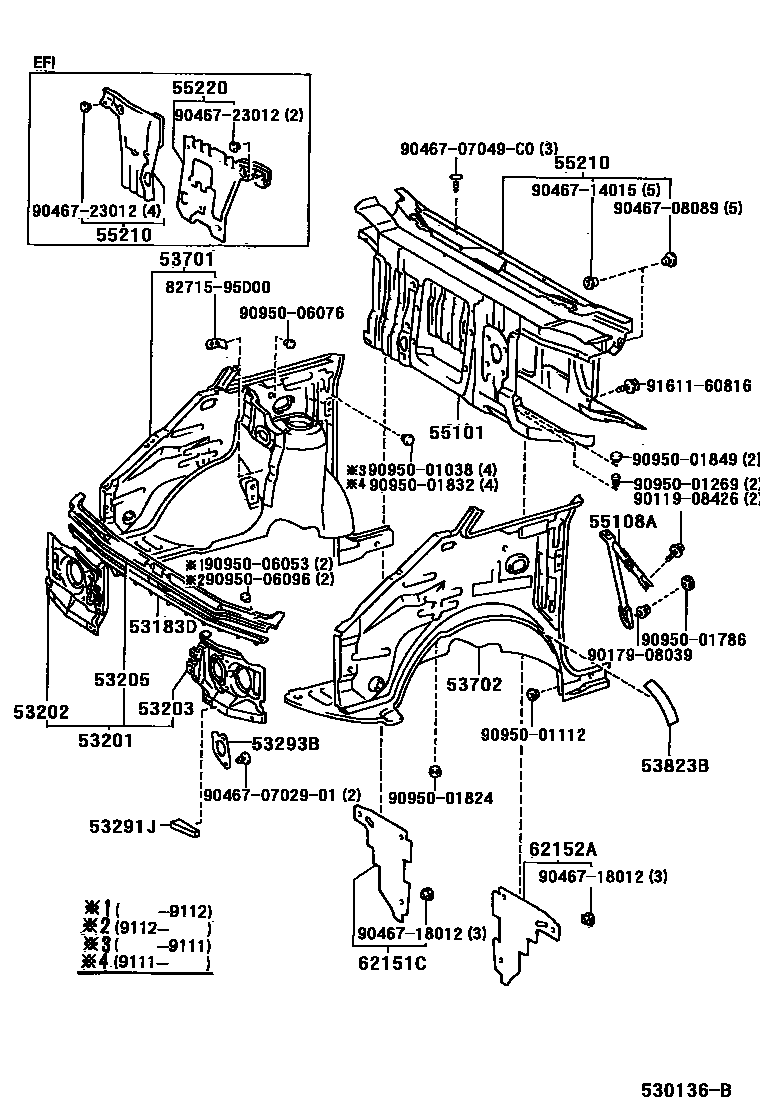

FRONT FENDER APRON & DASH PANEL
53183DSEAL, HEADLAMP COVER TO HOOD
53201SUPPORT SUB-ASSY, RADIATOR
sub53210-28060
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53291JSEAL, RADIATOR SUPPORT
53293BSEAL, RADIATOR SUPPORT SERVICE HOLE
53823BPROTECTOR, FRONT SIDE PANEL, NO.2
55101PANEL SUB-ASSY, DASH
W(*66) & W(COOL & HOT BOX)
W(*66)
sub55101-2J170
W(*66) & W(COOL & HOT BOX)
W(*66)
sub55101-2J230
55108ABRACE SUB-ASSY, PEDAL SUPPORT TO COWL
55210INSULATOR ASSY, DASH PANEL
55220INSULATOR ASSY, DASH PANEL, NO.2
62151CPAD, COWL SIDE SILENCER, RH
62152APAD, COWL SIDE SILENCER, LH
8271595D00BRACKET,WIRING HARNESS CLAMP
main82715-95D00
9011908426
main90119-08426
9017908039
main90179-08039
904670702901
main90467-0702901
9046707049C0
main90467-07049C0
9046708089
main90467-08089
9046714015
main90467-14015
9046718012
main90467-18012
9046723012
main90467-23012
9095001038
main90950-01038
9095001112
main90950-01112
9095001269
main90950-01269
9095001786
main90950-01786
9095001824
main90950-01824
9095001832
main90950-01832
9095001849
main90950-01849
9095006053
main90950-06053
9095006076
main90950-06076
9095006096
main90950-06096
9161160816
main91611-60816
36 parts on this diagram · 1 diagram in section
