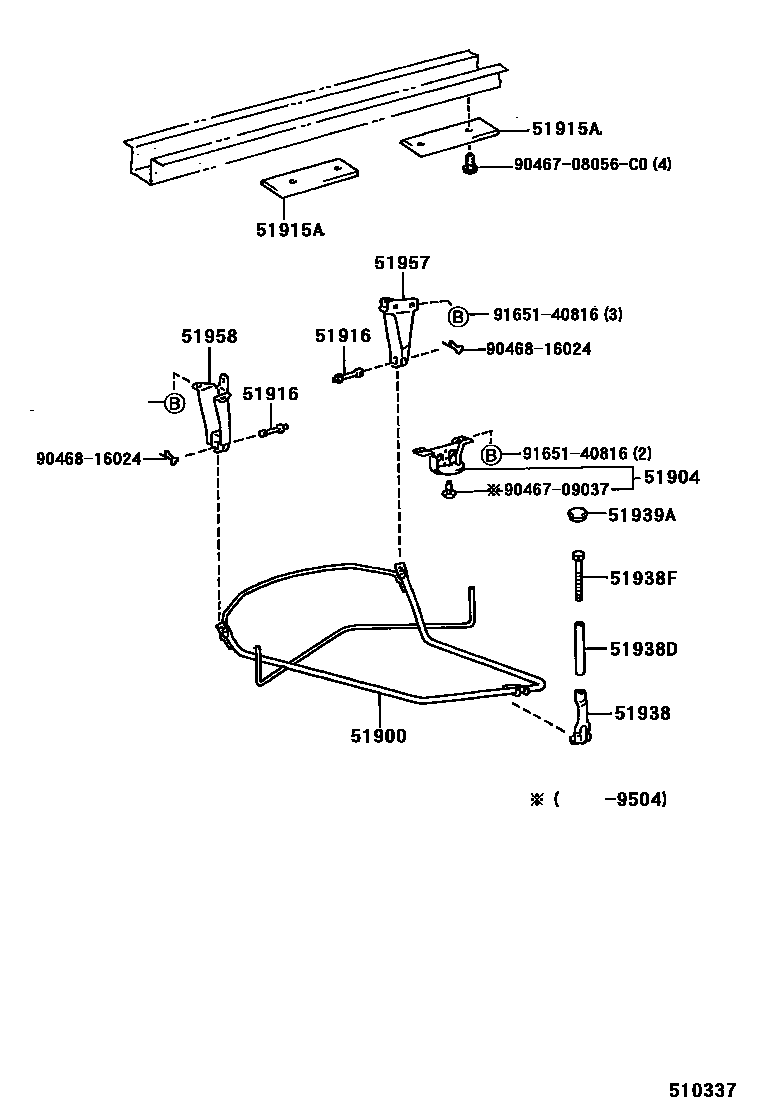

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-28160iTCR10,20199001-199108

sub51900-28161

main51900-28161iTCR10,20199108-199501

sub51900-28162

main51900-28162iTCR10,20199501-199707

51904BRACKET SUB-ASSY, SPEARE WHEEL CARRIER

main51904-28020iTCR10,20199005-199504

sub51915-28030

sub51933-28121

main51904-28040iTCR10,20199001-199005

sub51904-28020

main51933-28121iTCR10,20199504-199707

51915ABASE, SPARE WHEEL CARRIER

main51915-28020iTCR10,20199005-199707

main51915-28030iTCR10,20199504-199707

TEMPORARY USE = SPARE TIRE

51916PIN, SPARE TIRE CARRIER

main51916-27020iTCR10,20199001-199707

51938LOCK, SPARE WHEEL CARRIER

main51938-27070iTCR10,20199001-199707

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-17051iTCR10,20199001-199707

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90119-12190iTCR10,20199001-199707

51939ACAP, SPARE WHEEL CARRIER HANDLE

main51939-28090iTCR10,20199112-199707

main90950-01119iTCR10,20199001-199112

sub90950-01901

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51957-28010iTCR10,20199001-199707

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51958-28010iTCR10,20199001-199707

9046708056C0

main90467-08056C0

9046709037

main90467-09037

9046816024

main90468-16024

9165140816

main91651-40816

14 parts on this diagram · 1 diagram in section
