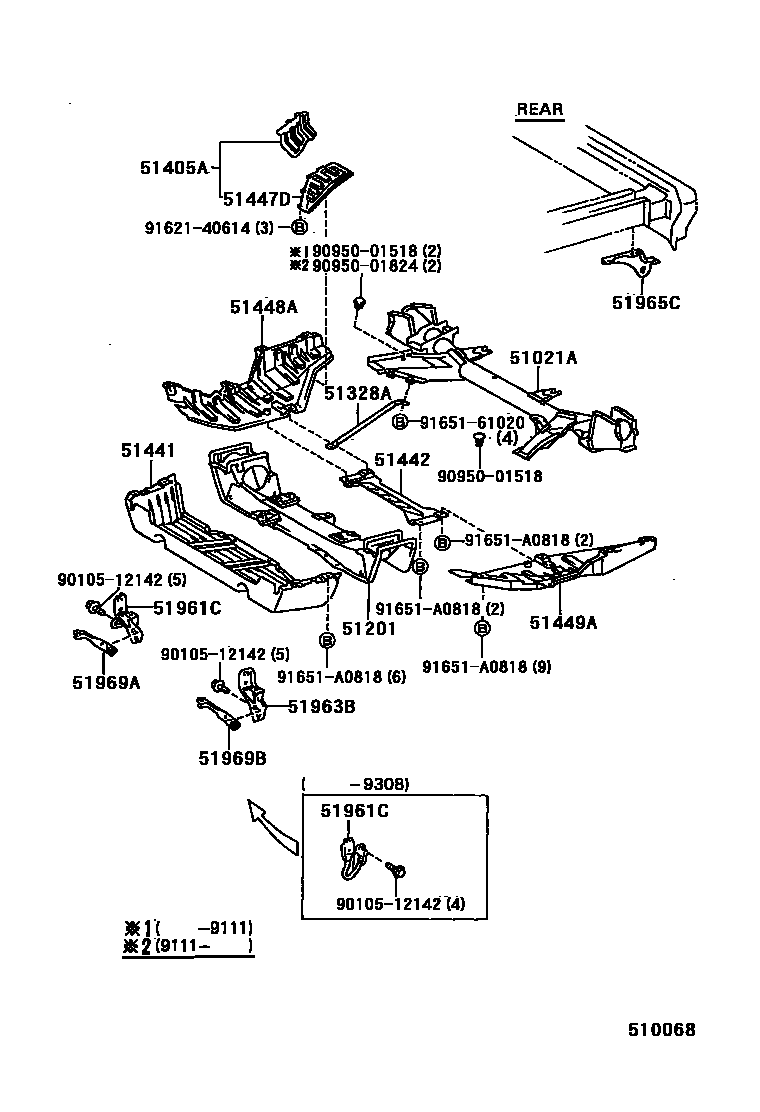

SUSPENSION CROSSMEMBER & UNDER COVER

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51021-95D00iTCR10199001-199707

main51021-95D01iTCR20199001-199707

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-28070iTCR10..SPC199401-199707

sub51201-28080

main51201-28080iTCR20..SPC199401-199707

main51201-28140iTCR10..EFI199308-199608

sub51201-28150

main51201-28150iTCR20..EFI199308-199508

main51201-95D02iTCR10199001-199308

sub51201-28180

sub52383-28030

sub52384-28020

main51201-95D03iTCR20199001-199308

sub51201-28190

sub52383-28030

sub52384-28020

51328ASUPPORT, FRONT SUSPENSION MEMBER, FRONT

main51328-95D00iTCR10,20199001-199707

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-28060iTCR10,20..SPC199401-199707

51441COVER, ENGINE UNDER, NO.1

main51441-28080iTCR10,20..SPC199401-199707

main51441-95D01iTCR10,20..EFI199001-199608

51442COVER, ENGINE UNDER, NO.2

main51442-28090iTCR10,20199412-199707

main51442-95D01iTCR10,20199001-199412

51447DCOVER, ENGINE UNDER, NO.4 CENTER

main51447-28040iTCR10,20..SPC199401-199707

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-28010iTCR10,20..SPC199401-199707

main51448-95D00iTCR10,20..EFI199001-199608

sub51448-28010

51449ACOVER, ENGINE SIDE UNDER, LH

main51449-95D01iTCR10,20199001-199707

sub51449-28020

51961CHOOK, FRONT

main51961-28020iTCR10,20..CND199003-199308

main51961-28030iTCR10,20..USA;TCR20..CND..SPC199308-199707

main51961-28040iTCR10,20..CND..EFI199308-199508

main51961-95D00iTCR10,20..USA199001-199308

51963BHOOK, TRANSPORT, FRONT RH

main51964-28050iTCR10,20..USA;TCR20..CND..SPC199308-199707

main51964-28060iTCR10,20..CND..EFI199308-199508

51965CHOOK, REAR

main51965-28050iTCR10,20199308-199707

main51965-95D00iTCR10,20199001-199308

51969AREINFORCEMENT, TRANSPORT HOOK MOUNTING, REAR RH

main51969-28020iTCR10,20..CND..EFI199308-199508

51969BREINFORCEMENT, TRANSPORT HOOK MOUNTING, REAR LH

main51979-28010iTCR10..CND;TCR20..CND..EFI199308-199701

9010512142

main90105-12142

9095001518

main90950-01518

9095001824

main90950-01824

9162140614

main91621-40614

9165161020

main91651-61020

91651A0818

main91651-A0818

20 parts on this diagram · 1 diagram in section
