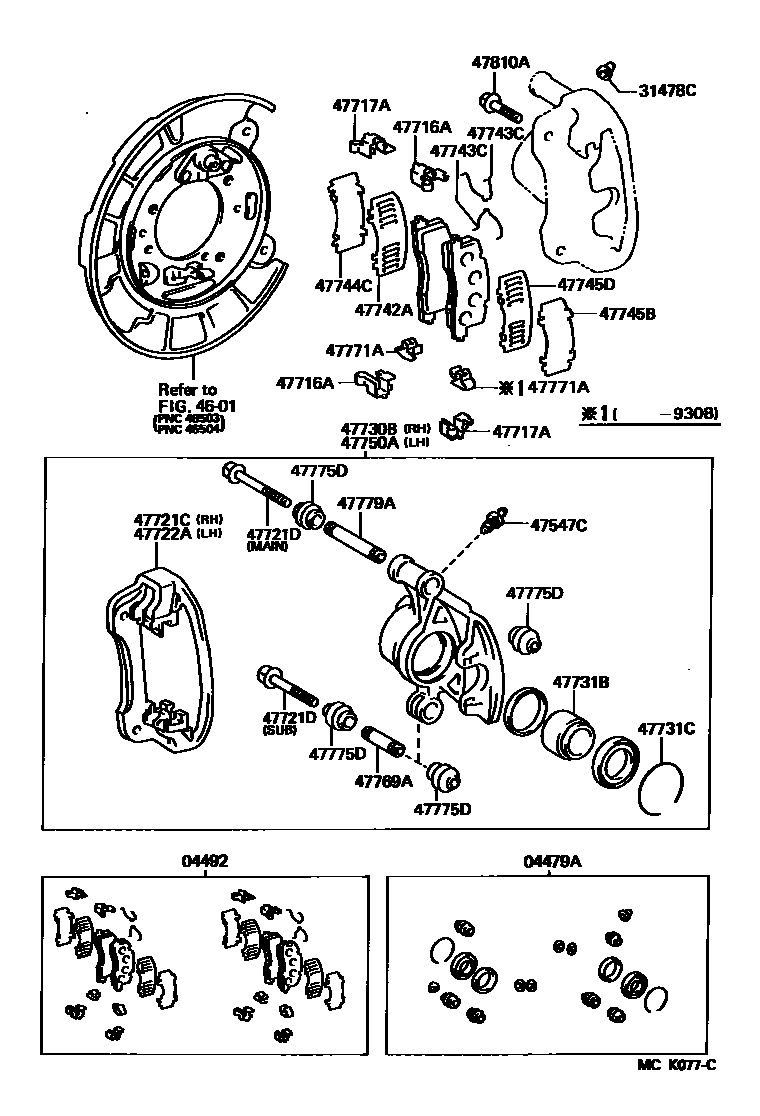

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-28060iTCR10,20¥2,950199001-199005

main04479-28070iTCR10,20¥2,940199005-199707

04492PAD KIT, DISC BRAKE, REAR

main04492-28010iTCR10,20¥11,800199001-199505

sub04466-28010¥9,400

main04492-28020iTCR10..07S..USA¥11,800199302-199308

CHINA SPEC

sub04466-28020¥9,400

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iTCR10,20¥160199001-199707

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-12030iTCR10,20¥400199001-199707

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32031iTCR10,20¥390199001-199707

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32031iTCR10,20¥390199001-199707

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-28010iTCR10,20¥5,200199001-199707

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-09003iTCR10,20¥550199001-199707

*9-1.25PX71-25

main90119-09004iTCR10,20¥550199001-199707

*9-1.25PX91-25

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-28010iTCR10,20¥5,200199001-199707

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-28180iTCR10,20¥42,300199001-199005

main47730-28190iTCR10,20¥41,800199005-199707

main47730-28190iTCR10..07S..USA¥41,800199302-199308

CHINA SPEC

47731BPISTON, REAR DISC BRAKE

main47731-28050iTCR10,20¥1,700199001-199005

main47731-28060iTCR10,20¥1,700199005-199604

sub47731-28061¥1,700

main47731-28061iTCR10,20¥1,700199604-199707

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-48003iTCR10,20¥250199001-199005

main90522-53001iTCR10,20¥230199005-199707

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47744-28110iTCR10,20¥270199001-199707

47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)

main47743-32010iTCR10,20¥300199001-199506

sub47743-12070¥310

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47745-28050iTCR10,20¥270199001-199707

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-28050iTCR10,20¥270199001-199707

47745DSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)

main47744-28110iTCR10,20¥270199001-199707

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main44750-28190iTCR10..07S..USA199302-199308

CHINA SPEC

main47750-28180iTCR10,20¥42,300199001-199005

main47750-28190iTCR10,20¥41,800199005-199707

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-12030iTCR10,20¥590199308-199707

47771APLATE, PAD WEAR INDICATOR(FOR REAR DISC BRAKE)

main47771-12050iTCR10,20¥250199001-199707

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32010iTCR10,20¥510199001-199707

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-16010iTCR10,20¥590199001-199707

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-12185iTCR10,20¥160199001-199707

24 parts on this diagram · 2 diagrams in section
