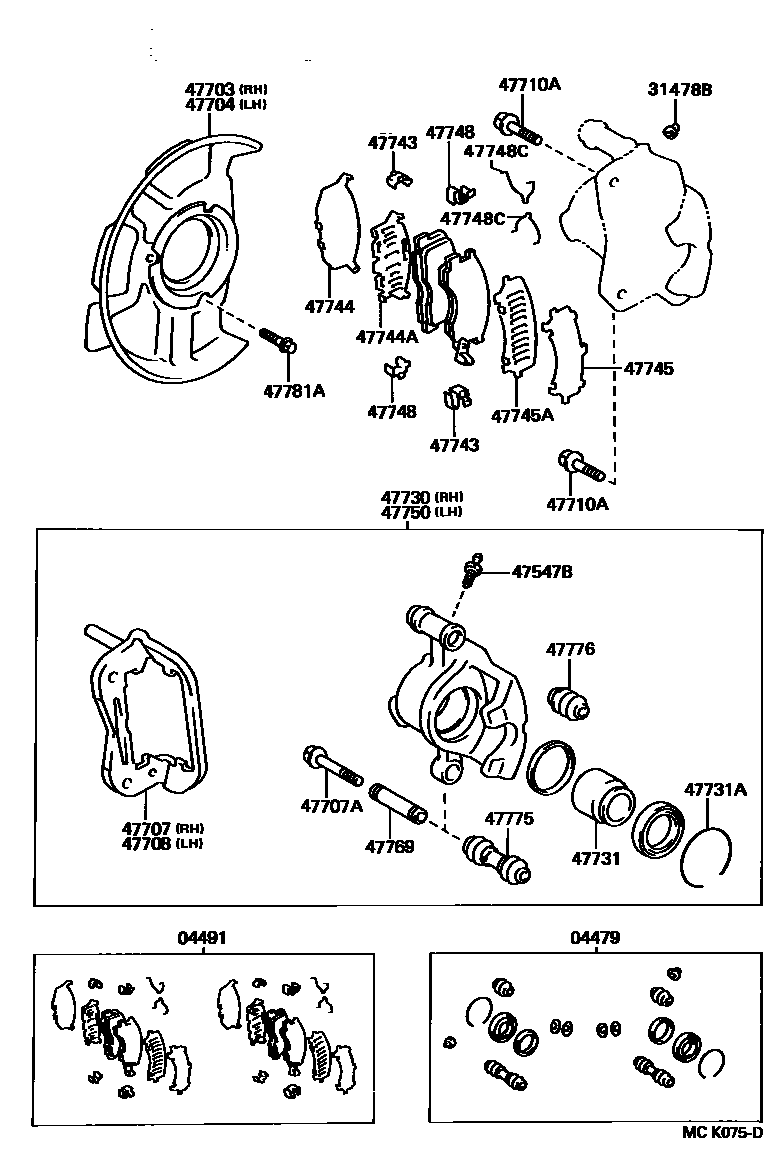

FRONT DISC BRAKE CALIPER & DUST COVER
04479CYLINDER KIT, DISC BRAKE, FRONT
W(ABS)
W(REAR DISC BRAKE)
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
W(REAR DISC BRAKE)
W(ABS)
47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
W(REAR DISC BRAKE)
W(ABS)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*12-1.25PX57-25
*12-1.25PX33-15
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
W(REAR DISC BRAKE)
W(ABS & REAR DISC BRAKE)
47731PISTON, FRONT DISC BRAKE
W(ABS)
W(REAR DISC BRAKE)
47731ARING, SET(FOR FRONT DISC BRAKE PISTON)
W(ABS)
W(ABS)
W(REAR DISC BRAKE)
47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
OUTER
INNER
47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
W(ABS)
CHINA SPEC
W(ABS)
47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)
CHINA SPEC
W(ABS)
W(ABS)
47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
CHINA SPEC
W(ABS)
W(ABS)
47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)
CHINA SPEC
W(ABS)
W(ABS)
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
OUTER
INNER
47748CSPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47750CYLINDER ASSY, DISC BRAKE, LH
W(REAR DISC BRAKE)
W(ABS & REAR DISC BRAKE)
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47776BOOT, MAIN PIN(FOR FRONT DISC BRAKE)
47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
25 parts on this diagram · 3 diagrams in section
