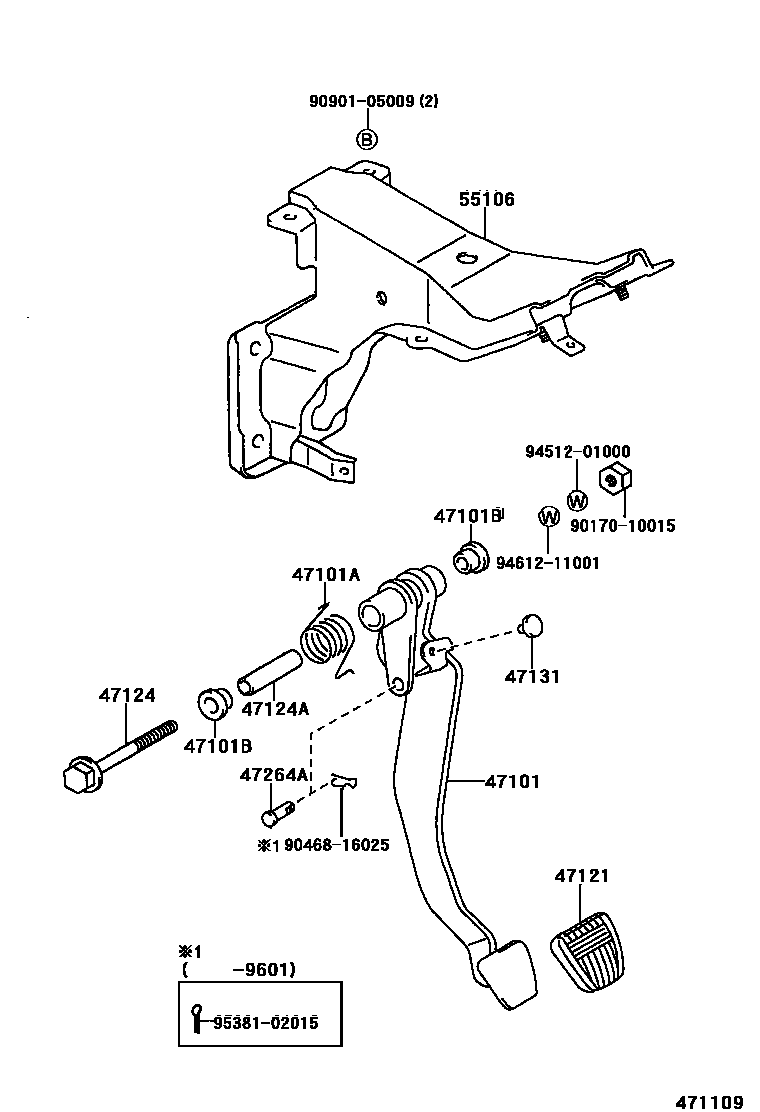

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1CHINA SPEC

47101PEDAL SUB-ASSY, BRAKE

main47101-28100iTCR10,20..MTM199001-199308

main47101-28110iTCR10..07S..USA199302-199306

CHINA SPEC

sub47101-28111

main47101-28111iTCR10..07S..USA199306-199308

CHINA SPEC

main47101-28120iTCR10,20..ATM199001-199306

sub47101-28121

main47101-28121iTCR10,20..ATM199306-199707

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35036iTCR10..07S..USA199302-199308

CHINA SPEC

main90508-35036iTCR10,20..MTM199001-199308

main90508-40010iTCR10,20..ATM199001-199707

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iTCR10,20199001-199707

47121PAD, BRAKE PEDAL

main31321-14020iTCR10,20..MTM199001-199308

main47121-12011iTCR10,20..ATM199001-199707

sub47121-12020

47124SHAFT, BRAKE PEDAL

main90101-10043iTCR10,20199001-199108

main90105-10017iTCR10,20199108-199707

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10002iTCR10,20199001-199707

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iTCR10,20..ATM199001-199308

sub90541-06036

main90541-06032iTCR10,20..ATM199011-199308

PEDAL SIDE

sub90541-06036

main90541-06032iTCR10..07S..USA199302-199308

CHINA SPEC

sub90541-06036

main90541-06036iTCR10,20199308-199707

PEDAL SIDE

main90541-06049iTCR10,20..ATM199011-199707

SHIFT LOCK SIDE

47264APIN(FOR PUSH ROD)

main90240-10037iTCR10,20199005-199707

main90240-10083iTCR10,20199001-199005

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-28110iTCR10,20199101-199308

main55106-28111iTCR10,20199308-199707

main55106-95D00iTCR10,20199001-199101

9017010015

main90170-10015

9046816025

main90468-16025

9090105009

main90901-05009

9451201000

main94512-01000

9461211001

main94612-11001

9538102015

main95381-02015

15 parts on this diagram · 3 diagrams in section
