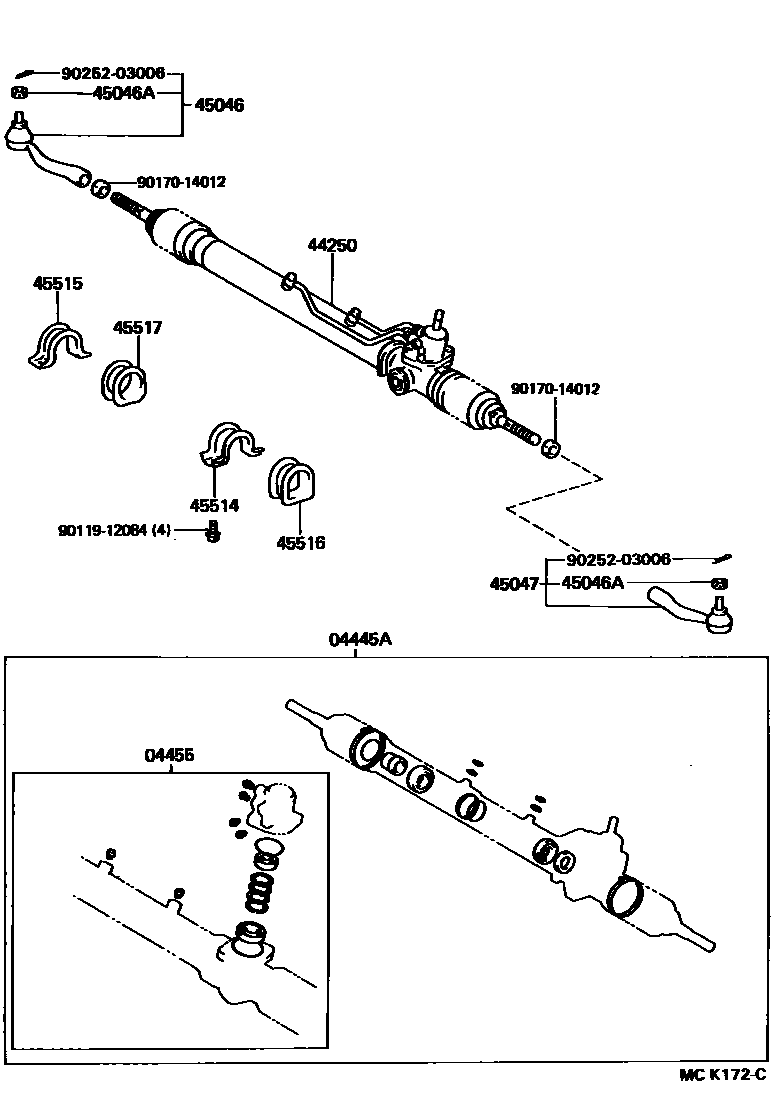

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-28030iTCR10,20199001-199707

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-28020iTCR10,20199001-199707

sub04455-20120

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28150iTCR10,20199001-199005

sub44250-28151

main44250-28151iTCR10,20199005-199108

main44250-28152iTCR10,20..EFI199108-199605

main44250-28171iTCR10..07S..USA199302-199308

CHINA SPEC

main44250-28290iTCR10,20..SPC199401-199608

main44250-28291iTCR10,20199608-199610

sub44250-28292

main44250-28292iTCR10,20199610-199707

45046END SUB-ASSY, TIE ROD, RH

main45046-29235iTCR10,20199001-199707

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iTCR10,20199001-199707

45047END SUB-ASSY, TIE ROD, LH

main45047-29065iTCR10,20199001-199707

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-28030iTCR10,20199001-199707

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-28040iTCR10,20199001-199707

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-28030iTCR10,20199001-199707

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-28020iTCR10,20199001-199707

9011912084

main90119-12084

9017014012

main90170-14012

9025203006

main90252-03006

13 parts on this diagram · 3 diagrams in section
