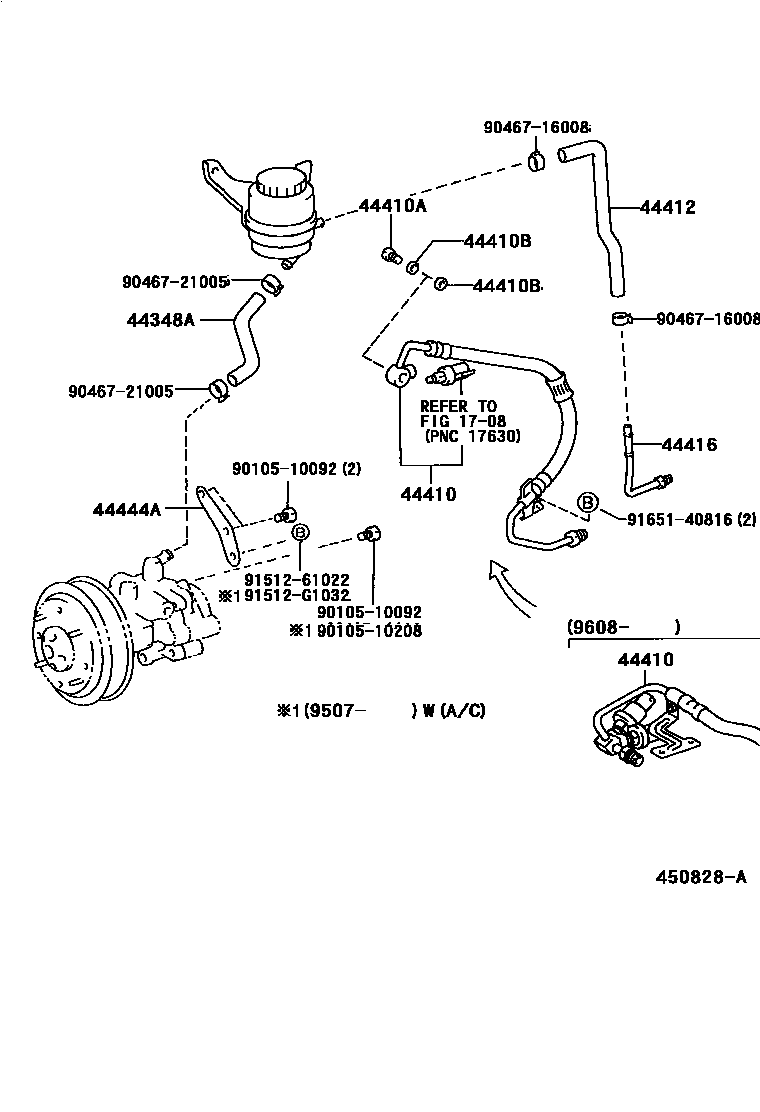

POWER STEERING TUBE

0001 1 0002 1

1708

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28100iTCR10,20..EFI¥2,020199001-199608

main44348-28190iTCR10,20..SPC¥3,710199401-199707

44410TUBE ASSY, PRESSURE FEED

main44410-28150iTCR10,20..EFI¥20,200199001-199608

main44410-28320iTCR10,20..SPC¥31,100199401-199707

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16014iTCR10,20¥670199001-199707

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16242iTCR10,20¥190199001-199707

44412HOSE, RETURN

main44412-28160iTCR10,20..EFI¥2,020199001-199608

main44412-28240iTCR10,20..SPC¥3,000199401-199707

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28140iTCR10,20..EFI¥1,730199001-199608

44444ASTAY, PUMP, REAR NO.1

main44444-28010iTCR10,20..EFI¥610199001-199608

main44444-28030iTCR10,20..SPC¥780199401-199707

9010510092

main90105-10092¥260

9010510208

main90105-10208¥310

9046716008

main90467-16008¥240

9046721005

main90467-21005¥330

9151261022

main91512-61022¥180

91512G1032

main91512-G1032¥180

9165140816

main91651-40816¥80

15 parts on this diagram · 2 diagrams in section
