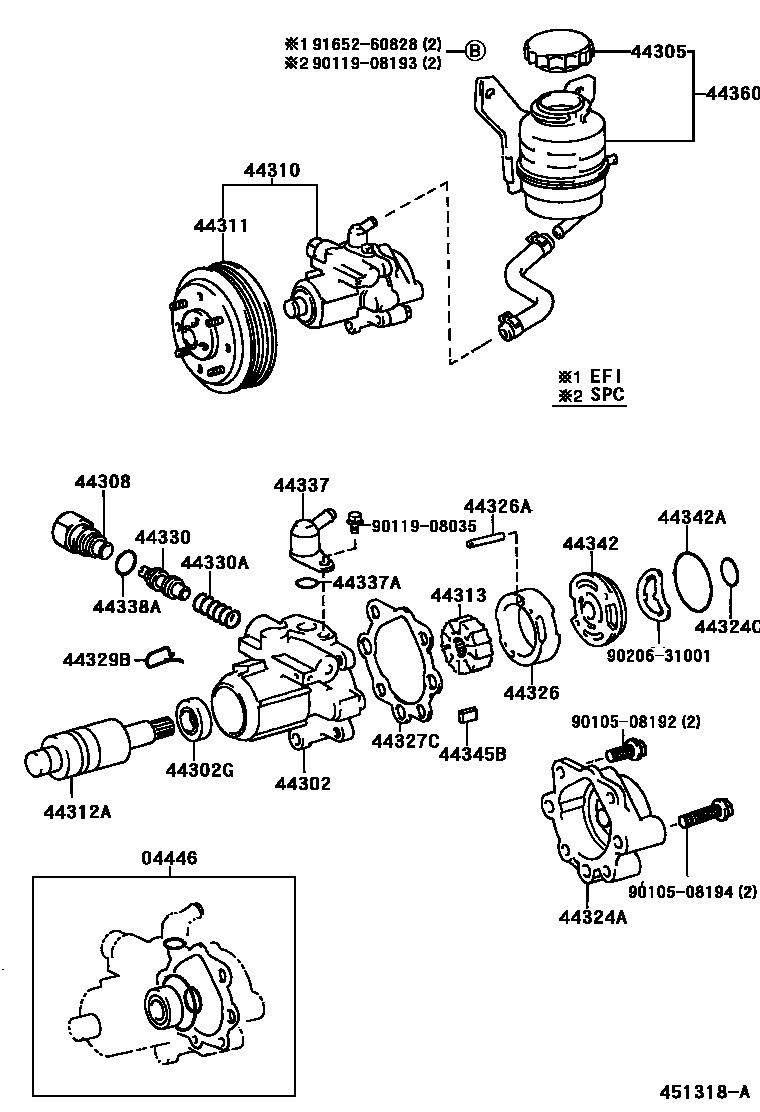

VANE PUMP & RESERVOIR (POWER STEERING)

04446GASKET KIT, POWER STEERING PUMP

main04446-28010iTCR10,20¥1,880199001-199707

sub04446-43020¥1,860

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-28010iTCR10,20¥13,200199001-199105

sub44302-28011¥19,700

main44302-28011iTCR10,20¥19,700199105-199201

main44302-28012iTCR10,20¥19,800199201-199707

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iTCR10,20¥190199001-199707

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iTCR10,20¥1,840199001-199109

sub44305-22050¥1,260

main44305-28020iTCR10,20¥1,470199312-199707

sub44305-28050¥1,460

main44305-32030iTCR10,20¥1,830199109-199312

sub44305-28050¥1,460

44308UNION SUB-ASSY, PRESSURE PORT

main44308-28020iTCR10,20¥2,000199001-199105

main44308-28021iTCR10,20¥1,980199105-199707

44310PUMP ASSY, VANE

main44310-28051iTCR10,20..EFI¥94,200199001-199608

main44310-28170iTCR10,20..SPC¥94,500199401-199707

44311PULLEY, VANE PUMP

main44311-28011iTCR10,20¥7,800199001-199707

44312ABEARING(FOR VANE PUMP SHAFT)

main44317-28030iTCR10,20¥6,300199001-199707

44313ROTOR, VANE PUMP

main44313-26060iTCR10,20¥7,700199001-199707

NO MARK

main44313-26070iTCR10,20¥7,700199001-199707

MARK 1

main44313-26080iTCR10,20¥7,700199001-199707

MARK 2

main44313-26090iTCR10,20¥7,700199001-199707

MARK 3

main44313-26100iTCR10,20¥7,700199001-199707

MARK 4

44324AHOUSING, PUMP, REAR

main44324-26040iTCR10,20¥3,990199001-199201

main44324-28030iTCR10,20¥2,510199201-199707

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-18007iTCR10,20¥110199001-199707

44326RING, CAM(FOR VANE PUMP)

main44325-26010iTCR10,20¥6,700199001-199008

NO MARK

main44325-26020iTCR10,20¥6,700199001-199008

MARK 1

main44325-26030iTCR10,20¥6,700199001-199008

MARK 2

main44325-26040iTCR10,20¥6,700199001-199008

MARK 3

main44325-26050iTCR10,20¥6,700199001-199008

MARK 4

main44325-32110iTCR10,20¥8,500199008-199201

NO MARK

main44325-32120iTCR10,20¥8,500199008-199201

MARK 1

main44325-32130iTCR10,20¥8,500199008-199201

MARK 2

main44325-32140iTCR10,20¥8,500199008-199201

MARK 3

main44325-32150iTCR10,20¥8,200199008-199201

MARK 4

main44325-32270iTCR10,20¥6,700199201-199707

NO MARK

main44325-32280iTCR10,20¥6,700199201-199707

MARK 1

main44325-32290iTCR10,20¥6,700199201-199707

MARK 2

main44325-32300iTCR10,20¥6,700199201-199707

MARK 3

main44325-32310iTCR10,20¥6,700199201-199707

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04071iTCR10,20¥110199001-199707

L=23.3,OD=4.0

44327CGASKET, VANE PUMP HOUSING

main44327-26010iTCR10,20¥460199001-199707

44329BWIRE, VANE PUMP BEARING

main44329-28010iTCR10,20¥370199001-199707

44330VALVE ASSY, FLOW CONTROL

main44330-28010iTCR10,20¥8,600199001-199105

MARK A

sub44330-28011¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28011iTCR10,20¥8,700199105-199707

MARK A

main44330-28020iTCR10,20¥8,600199001-199105

MARK B

sub44330-28021¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28021iTCR10,20¥8,700199105-199707

MARK B

main44330-28030iTCR10,20¥8,600199001-199105

MARK C

sub44330-28031¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28031iTCR10,20¥8,700199105-199707

MARK C

main44330-28040iTCR10,20¥8,600199001-199105

MARK D

sub44330-28041¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28041iTCR10,20¥8,700199105-199707

MARK D

main44330-28050iTCR10,20¥8,600199001-199105

MARK E

sub44330-28051¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28051iTCR10,20¥8,700199105-199707

MARK E

main44330-28060iTCR10,20¥8,600199001-199105

MARK F

sub44330-28061¥8,700

sub44308-14081¥4,240

sub44308-22102¥4,240

sub44308-28021¥1,980

sub90501-13034¥160

main44330-28061iTCR10,20¥8,700199105-199707

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-11047iTCR10,20¥110199001-199105

main90501-13034iTCR10,20¥160199105-199707

44337UNION, POWER STEERING SUCTION PORT

main44337-22060iTCR10,20..EFI¥1,900199001-199608

main44337-28060iTCR10,20..SPC¥1,880199401-199707

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iTCR10,20¥270199001-199609

sub90301-11016¥140

main90301-11016iTCR10,20¥140199609-199707

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iTCR10,20¥300199001-199609

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-19013iTCR10,20¥260199609-199707

ID=19.2,OD=22.3

sub90301-19018¥240

44342PLATE, VANE PUMP SIDE, REAR

main44342-26010iTCR10,20¥1,550199001-199008

main44342-26020iTCR10,20¥1,530199204-199707

main44342-32050iTCR10,20¥1,530199008-199201

main44342-32060iTCR10,20¥1,530199201-199204

sub44342-26020¥1,530

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-47001iTCR10,20¥170199001-199707

44345BPLATE, VANE PUMP

main44345-26010iTCR10,20¥700199001-199707

L=15.000

main44345-26020iTCR10,20¥700199001-199707

L=14.998

main44345-26030iTCR10,20¥700199001-199707

L=14.996

main44345-26040iTCR10,20¥700199001-199707

L=14.994

main44345-26050iTCR10,20¥700199001-199707

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-28070iTCR10,20¥10,300199001-199112

sub44360-28071¥10,500

main44360-28071iTCR10,20..EFI¥10,500199112-199608

main44360-28130iTCR10,20..SPC¥10,300199401-199707

9010508192

main90105-08192¥130

9010508194

main90105-08194¥130

9011908035

main90119-08035¥110

9011908193

main90119-08193¥190

9020631001

main90206-31001¥160

9165260828

main91652-60828¥130

30 parts on this diagram · 1 diagram in section
