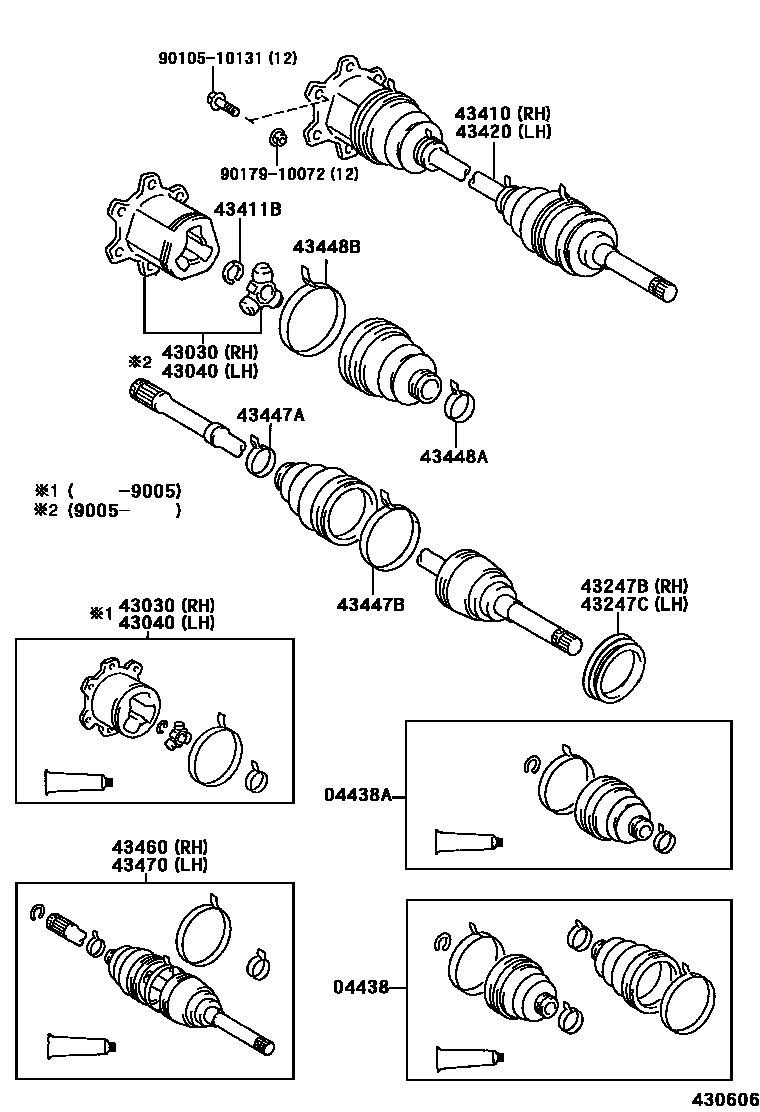

FRONT DRIVE SHAFT
04438BOOT KIT, FRONT DRIVE SHAFT
04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
sub04437-28021
43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247CDEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43410SHAFT ASSY, FRONT DRIVE, RH
43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
43420SHAFT ASSY, FRONT DRIVE, LH
43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)
43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
sub43460-29177
43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
sub43460-29177
9010510131
main90105-10131
9017910072
main90179-10072
17 parts on this diagram · 1 diagram in section
