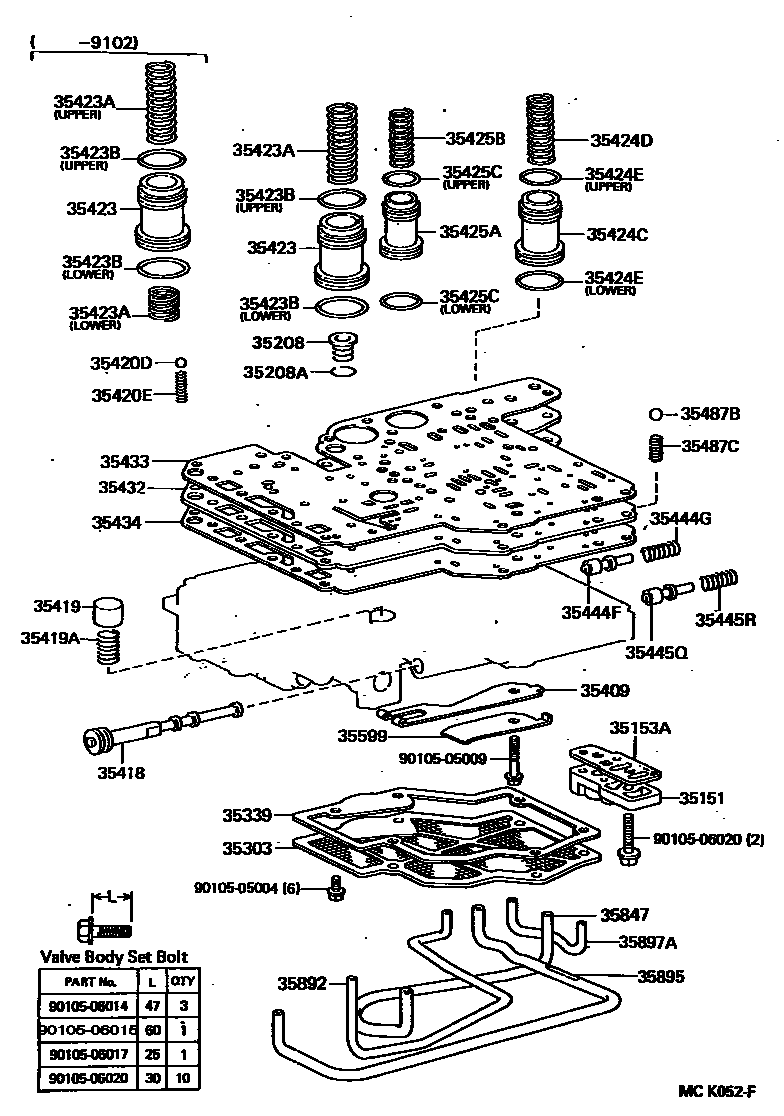

VALVE BODY & OIL STRAINER (ATM)

0001 1A46DE,A46DF 0002 1A46DE,A46DF 0003 1A46DE,A46DF 0004 1A340E,A340F 0005 1A340E,A340F 0006 1A340E,A340F 0007 1A340E,A340F

35151COVER, TRANSMISSION CASE, LOWER

main35151-30020iTCR10,20..ATM..EFI¥1,440199001-199608

35153AGASKET, TRANSMISSION CASE LOWER COVER

main35153-30010iTCR10,20..ATM..EFI¥240199001-199608

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-26010iTCR10,20..ATM..EFI¥240199102-199608

main35208-30010iTCR10,20..SPC¥180199401-199707

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iTCR10,20..ATM¥100199102-199707

35303STRAINER SUB-ASSY, OIL

main35303-30060iTCR10,20..ATM..EFI¥2,240199001-199608

35339GASKET, OIL STRAINER

main35339-28030iTCR10,20..ATM..EFI¥460199012-199608

main35339-30060iTCR10,20..ATM¥380199001-199012

sub35339-28030¥460

35409SPRING SUB-ASSY, MANUAL DETENT

main35409-22020iTCR10,20..SPC¥870199401-199707

main35409-28010iTCR10,20..ATM..EFI¥870199001-199608

35418VALVE, MANUAL

main35418-30060iTCR10,20..ATM..EFI¥2,390199001-199608

main35418-30070iTCR10,20..SPC¥3,670199401-199707

35419VALVE, CHECK, NO.1

main35419-12030iTCR10,20..SPC¥770199401-199707

main35419-22010iTCR10,20..ATM..EFI¥880199001-199608

35419ASPRING, COMPRESSION (FOR CHECK VALVE)

main90501-11039iTCR10,20..SPC¥140199401-199707

main90501-15015iTCR10,20..ATM..EFI¥140199001-199503

main90501-16083iTCR10,20..EFI¥200199503-199608

35420BODY ASSY, LOWER VALVE

main35420-30172iTCR10,20..ATM..EFI¥74,200199001-199608

35420DBALL (FOR LOWER VALVE BODY)

main35496-22030iTCR10,20..ATM..EFI¥390199001-199608

OD=6.35,RUBBER

35420ESPRING (FOR LOWER VALVE BODY)

main90501-04727iTCR10,20..ATM..EFI¥220199001-199608

35423PISTON, B-2 ACCUMULATOR

main35421-22040iTCR10,20..ATM199001-199102

main35421-26010iTCR10,20..ATM..EFI¥1,350199102-199608

main35423-30030iTCR10,20..SPC¥1,490199401-199707

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-19007iTCR10,20..ATM¥200199001-199102

LOWER

main90501-19008iTCR10,20..ATM¥250199001-199102

UPPER

main90501-21014iTCR10,20..ATM..EFI¥260199102-199608

main90501-25026iTCR10,20..SPC¥270199401-199707

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23194iTCR10,20..ATM¥400199001-199707

UPPER

main90301-29187iTCR10,20..ATM..EFI¥620199001-199608

LOWER

main90301-31002iTCR10,20..SPC¥270199401-199707

LOWER

sub90301-31010¥160

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iTCR10,20..ATM..EFI¥1,270199001-199608

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20063iTCR10,20..ATM..EFI¥300199001-199608

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-22185iTCR10,20..ATM..EFI¥400199001-199608

UPPER

main90301-26190iTCR10,20..ATM..EFI¥490199001-199608

LOWER

35425SEAT, PRESSURE REGULATOR VALVE SLEEVE

main35425-14010iTCR10,20..ATM..EFI¥200199001-199608

35425APISTON, C-2 ACCUMULATOR

main35425-30020iTCR10,20..SPC¥1,130199401-199707

main35441-30010iTCR10,20..ATM..EFI¥1,240199001-199608

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-21008iTCR10,20..SPC¥260199401-199707

OUTER

main90501-23093iTCR10,20..SPC¥290199401-199707

INNER

main90501-27013iTCR10,20..ATM..EFI¥300199001-199608

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18186iTCR10,20..ATM..EFI¥390199001-199608

UPPER

sub90301-18010¥270

main90301-25003iTCR10,20..SPC¥270199401-199707

UPPER

sub90301-25010¥180

main90301-26190iTCR10,20..ATM..EFI¥490199001-199608

LOWER

main90301-31002iTCR10,20..SPC¥270199401-199707

LOWER

sub90301-31010¥160

35432PLATE, VALVE BODY, NO.1

main35432-22100iTCR10,20..ATM¥3,030199001-199102

main35432-22101iTCR10,20..ATM..EFI¥3,450199102-199402

main35432-22102iTCR10,20..EFI¥3,450199402-199608

sub35432-22103¥3,480

main35432-28050iTCR20..SPC¥3,470199401-199707

main35432-30291iTCR10..SPC¥4,130199401-199707

35433GASKET, VALVE BODY, NO.1

main35433-22040iTCR10,20..ATM..EFI¥1,150199306-199608

sub35433-22041¥1,160

main35433-30064iTCR10,20..SPC¥760199401-199707

main35433-30072iTCR10,20..ATM¥1,080199001-199306

sub35433-22040¥1,150

35434GASKET, VALVE BODY, NO.2

main35434-22040iTCR10,20..ATM..EFI¥1,150199306-199608

sub35434-22041¥1,160

main35434-30062iTCR10,20..ATM¥1,080199001-199306

sub35434-22040¥1,150

main35434-30076iTCR10,20..SPC¥780199401-199707

35444FVALVE, INTERMEDIATE COAST MODULATOR

main35444-22010iTCR10,20..ATM..EFI¥850199001-199608

35444GSPRING (FOR INTERMEDIATE COAST MODULATOR VALVE)

main90501-09686iTCR10,20..ATM..EFI¥220199001-199608

35445QVALVE, LOW COAST MODULATOR

main35444-22010iTCR10,20..ATM..EFI¥850199001-199608

main35445-30011iTCR10,20..SPC¥720199401-199707

35445RSPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE)

main90501-08101iTCR10,20..SPC¥100199401-199707

main90501-08725iTCR10,20..ATM..EFI¥230199001-199608

35487BBALL, CHECK, NO.4

main35487-30010iTCR10,20..ATM..EFI¥320199001-199608

35487CSPRING, COMPRESSION (FOR CHECK BALL)

main90504-05006iTCR10,20..ATM..EFI¥170199001-199608

35599COVER, MANUAL DETENT SPRING

main35599-22020iTCR10,20¥400199401-199707

main35599-28010iTCR10,20..ATM..EFI¥410199001-199608

main35599-30020iTCR20..SPC¥370199401-199706

35847TUBE, TRANSMISSION LUBE APPLY

main35847-30010iTCR10,20..ATM..EFI¥850199001-199608

35892TUBE, OVERDRIVE BRAKE

main35892-30030iTCR10,20..ATM..EFI¥1,140199001-199608

sub35892-26010¥1,160

35895TUBE, FRONT CLUTCH APPLY

main35895-30030iTCR10,20..ATM..EFI¥1,450199001-199608

35897ATUBE, 1ST & REVERSE BRAKE, NO.1

main35897-30010iTCR10,20..ATM..EFI¥940199001-199608

main35897-30020iTCR20..SPC¥930199401-199707

9010505004

main90105-05004¥80

9010505009

main90105-05009¥80

9010506014

main90105-06014¥220

9010506015

main90105-06015¥180

9010506017

main90105-06017¥140

9010506020

main90105-06020¥200

43 parts on this diagram · 7 diagrams in section
