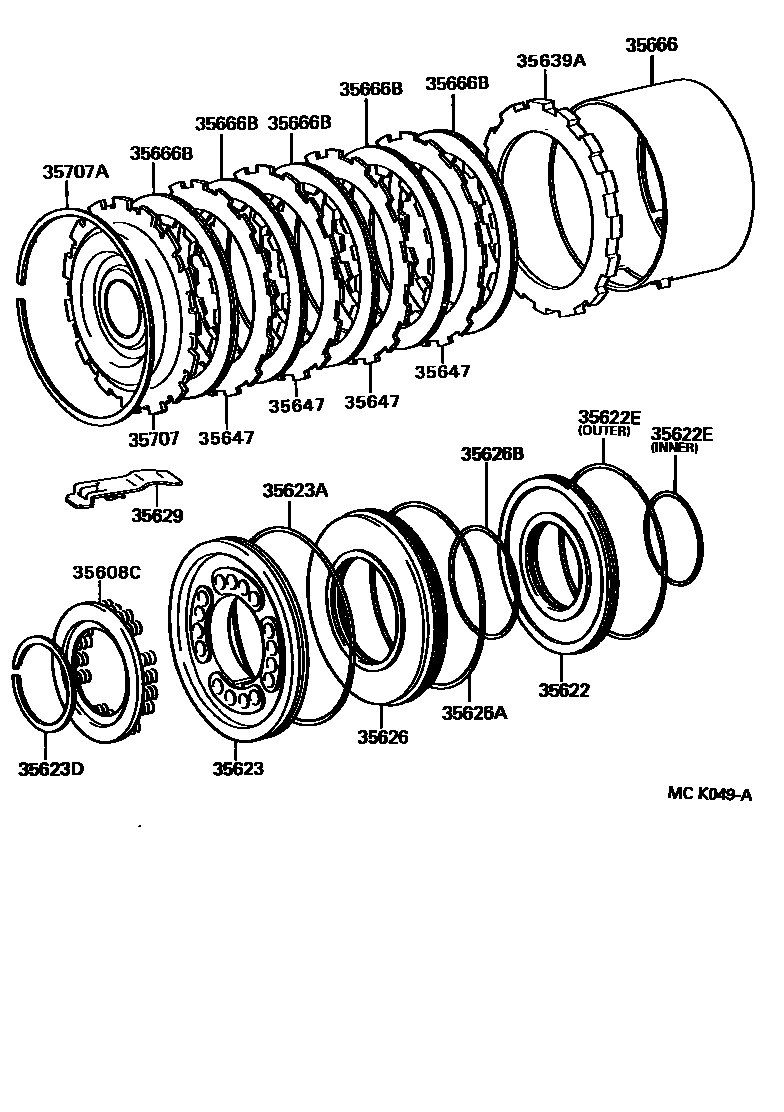

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A46DE,A46DF 0002 1A340E,A340F

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iTCR10,20..ATM..EFI¥1,060199001-199608

35622PISTON, BRAKE, NO.2

main35622-22010iTCR10,20..ATM..EFI¥1,850199001-199608

main35622-30010iTCR10,20..SPC¥2,500199401-199707

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-57188iTCR10,20..ATM¥630199001-199707

INNER

main90301-99193iTCR10,20..ATM¥800199001-199707

OUTER

35623PISTON, BRAKE, NO.3

main35623-22010iTCR10,20..ATM..EFI¥2,330199001-199608

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iTCR10,20..ATM..EFI¥800199001-199608

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iTCR10,20..ATM..EFI¥240199001-199608

35626SLEEVE, BRAKE REACTION

main35626-22010iTCR10,20..ATM..EFI¥2,100199001-199608

main35626-30020iTCR10,20..SPC¥3,150199401-199707

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iTCR10,20..ATM..EFI¥800199001-199608

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iTCR10,20..ATM¥630199001-199707

sub90301-67005¥190

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iTCR10,20..ATM..EFI¥270199001-199608

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iTCR10,20..ATM..EFI¥3,250199001-199608

35647PLATE, CLUTCH, NO.2

main35647-22010iTCR10,20..ATM..EFI¥1,670199001-199608

35666TUBE, BRAKE APPLY

main35666-30010iTCR10,20..ATM..EFI¥2,460199001-199608

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iTCR10,20..ATM¥2,640199001-199109

sub35633-30060¥2,630

main35633-30060iTCR10,20..ATM..EFI¥2,630199109-199608

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30030iTCR10,20..ATM..EFI¥13,600199001-199608

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iTCR10,20..ATM..EFI¥520199001-199608

16 parts on this diagram · 2 diagrams in section
