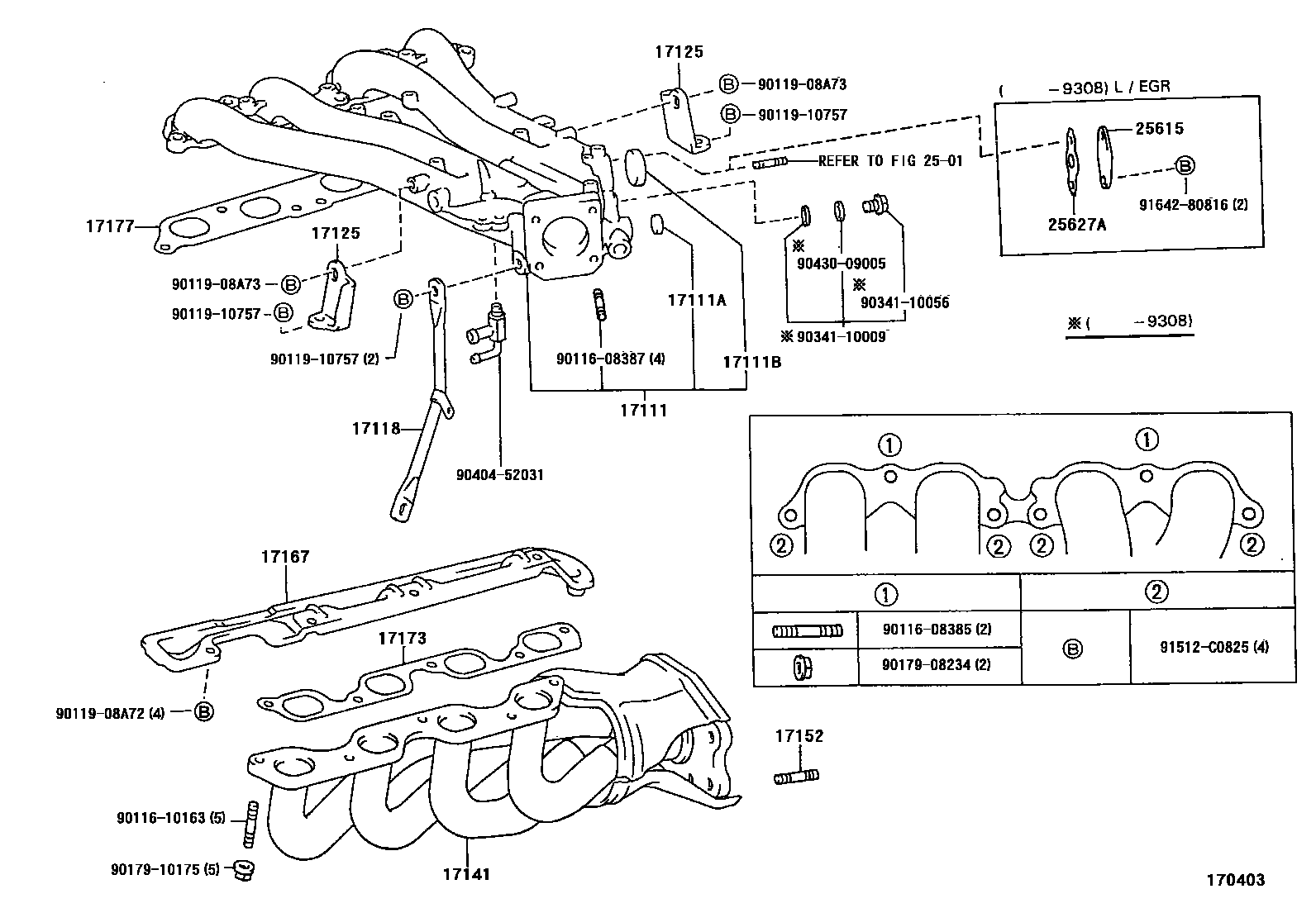

MANIFOLD

0001 1 0002 1 0003 1

17111MANIFOLD, INTAKE

main17101-76010i2TZFE..TCR10,20199001-199401

sub17101-76011

sub90179-08199

main17101-76011i2TZFE..TCR10,20199401-199403

main17101-76012i2TZFE..TCR10,20199403-199608

main17101-76020i2TZFZE..TCR10,20199401-199707

17111APLUG, NO.1

main90331-16001i2TZ#..TCR10,20199001-199707

17111BPLUG, NO.2

main96411-43500i2TZ#..TCR10,20199001-199707

17118STAY, MANIFOLD

main17118-76010i2TZFE..TCR10199001-199608

main17118-76010i2TZ#..TCR10,20199308-199707

NO.1

main17118-76020i2TZFZE..TCR10,20199401-199707

NO.2

17125STAY, SURGE TANK, NO.1

main17125-76010i2TZ#..TCR10,20199001-199707

17141MANIFOLD, EXHAUST

main17141-76040i2TZFE..TCR10,20199001-199608

main17141-76050i2TZFZE..TCR10,20199401-199707

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10149i2TZ#..TCR10,20199001-199707

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-76010i2TZ#..TCR10,20199001-199707

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-76010i2TZ#..TCR10,20199001-199707

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-76011i2TZFE..TCR10,20199001-199401

sub17177-76020

main17177-76020i2TZ#..TCR10,20199401-199707

2501

25615PLATE, EGR HOLE COVER, NO.1

main25615-76010i2TZFE..TCR10..07S..USA199302-199308

CHINA SPEC

25627AGASKET, EGR HOLE COVER PLATE, NO.1

main25627-76010i2TZFE..TCR10..07S..USA199302-199308

CHINA SPEC

9011608385

main90116-08385

9011608387

main90116-08387

9011610163

main90116-10163

9011908A72

main90119-08A72

9011908A73

main90119-08A73

9011910757

main90119-10757

9017908234

main90179-08234

9017910175

main90179-10175

9034110009

main90341-10009

9034110056

main90341-10056

9040452031

main90404-52031

9043009005

main90430-09005

91512C0825

main91512-C0825

9164280816

main91642-80816

27 parts on this diagram · 3 diagrams in section
