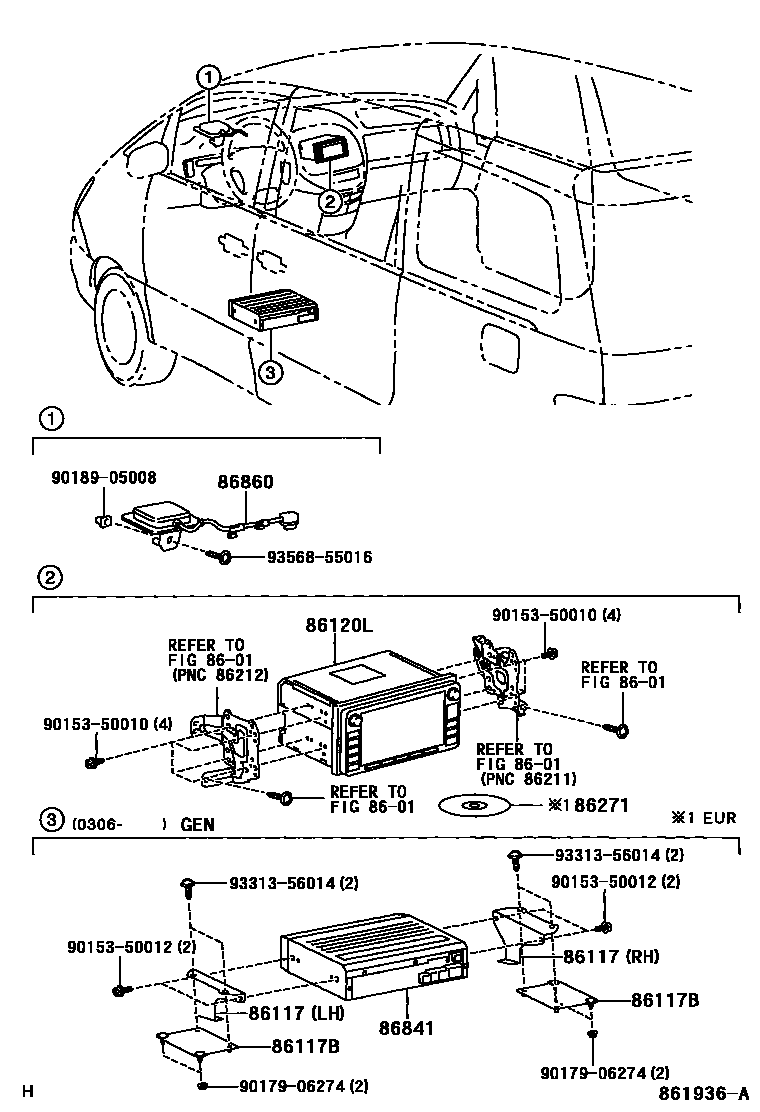

NAVIGATION & FRONT MONITOR DISPLAY

8601

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-28170iACR30..GEN200306

LH

main86117-28180iACR30..GEN200306

RH

86117BBRACKET, TELEVISION DISPLAY, B

main86117-28190iACR30..GEN200306

86120LRECEIVER ASSY, NAVIGATION

main86120-28490iACR30..GEN200304

FUJITSU TEN,ID=18012

main86120-33610iACR30,CLR30..EUR200304-200506

AISIN AW

86271DISC, DISC PLAYER

main86271-53030iACR30,CLR30..EUR200507

sub86271-53031

main86271-64010iACR30,CLR30..EUR200304-200311

sub86271-64011

main86271-64011iACR30,CLR30..EUR200311-200407

sub86271-64012

main86271-64012iACR30,CLR30..EUR200408-200506

sub86271-53030

86841COMPUTER, NAVIGATION

main86841-52010iACR30..GEN200306

86860ANTENNA ASSY, NAVIGATION

main86860-28110iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304-200404

main86860-28120iCLR30..LHD..08S200304-200404

main86860-28130iACR30..GEN200304

9015350010

main90153-50010

9015350012

main90153-50012

9017906274

main90179-06274

9018905008

main90189-05008

9331356014

main93313-56014

9356855016

main93568-55016

13 parts on this diagram · 1 diagram in section
