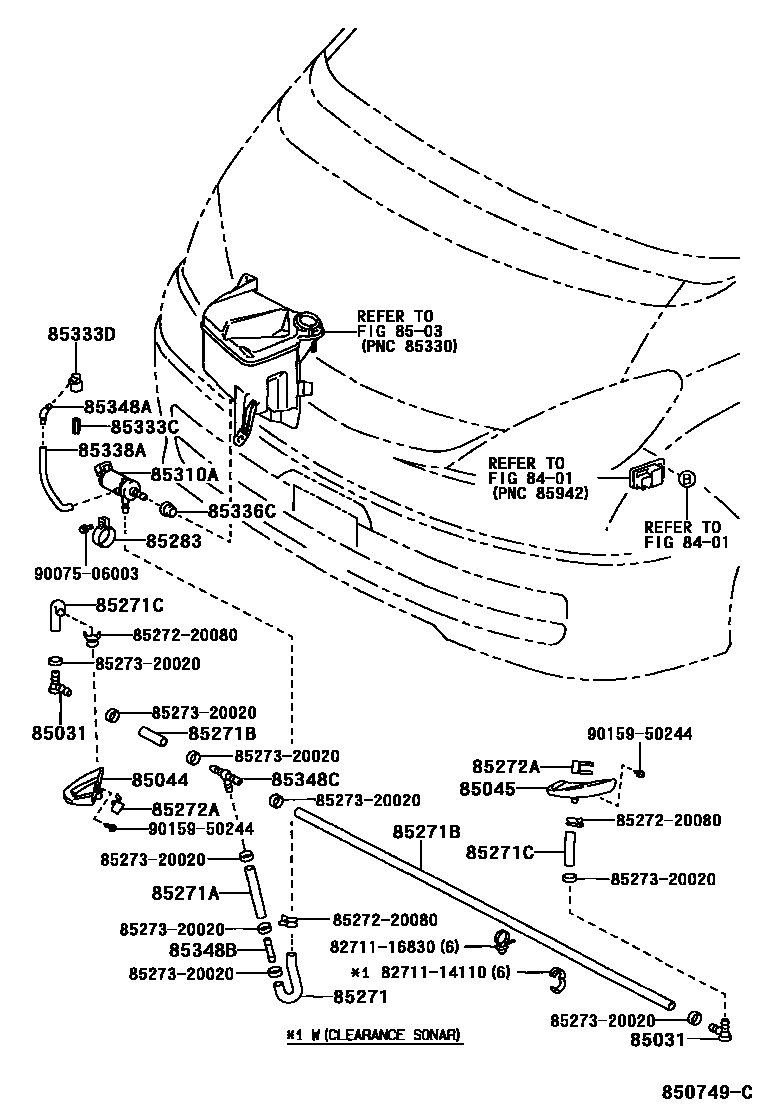

HEADLAMP CLEANER

0001 1 0002 1

8401

8503

85031VALVE, HEADLAMP CLEANER WASHER HOSE

main85031-30020iACR30,CLR30..LHD..EUR200002-200304

85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH

main85044-28010iACR30,CLR30..LHD..EUR200002-200304

85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH

main85045-28010iACR30,CLR30..LHD..EUR200002-200304

85271HOSE, HEADLAMP CLEANER, NO.1

main85271-14100iCLR30..LHD..08S200304-200404

main90075-15011iACR30,CLR30..LHD..EUR200002-200304

85271AHOSE, HEADLAMP CLEANER, NO.2

main85289-20590iACR30,CLR30..LHD..EUR200002-200304

L=130

sub90445-14059

main85376-12380iCLR30..LHD..08S200304-200404

sub85375-12760

85271BHOSE, HEADLAMP CLEANER, NO.3

main85275-42010iACR30,CLR30..LHD..EUR200002-200304

L=45,RH

main85375-20171iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200304-200404

L=60

main90075-15012iACR30,CLR30..LHD..EUR200002-200304

L=1600,LH

85271CHOSE, HEADLAMP CLEANER, NO.4

main85275-33020iCLR30..LHD..08S200304-200404

L=34

sub85375-50020

main85375-32180iACR30,CLR30..LHD..EUR200002-200304

L=70,RH

main90445-14055iACR30,CLR30..LHD..EUR200002-200304

L=60,LH

sub85375-50020

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-30010iACR30,CLR30..LHD..EUR200002-200304

85283BRACKET, HEADLAMP CLEANER WASHER

main85361-33020iACR30..LHD..EUR200002-200012

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

main85330-28080iACR30,CLR30..LHD..EUR200002-200404

85333CFILTER, HEADLAMP CLEANER

main90075-16001iACR30,CLR30..LHD..EUR200002-200404

85333DCOVER, HEADLAMP CLEANER

main90075-15502iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200002-200404

85336CPACKING, HEADLAMP CLEANER MOTOR

main85336-10010iACR30,CLR30..LHD..EUR200002-200404

85338AHOSE, BREATHER

main90075-15014iACR30,CLR30..LHD..EUR200002-200304

sub90446-07001

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main85349-89122iACR30,CLR30..LHD..(EUR,GEN)200304-200601

main85355-20200iACR30,CLR30..LHD..EUR200002-200304

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

main85355-20200iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200304-200404

main85379-89131iACR30,CLR30..LHD..EUR200002-200304

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

main85352-12010iACR30,CLR30..LHD..EUR200002-200304

main85379-89131iCLR30..LHD..08S200304-200404

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20080

8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH

main85273-20020

9007506003

main90075-06003

9015950244

main90159-50244

25 parts on this diagram · 2 diagrams in section
