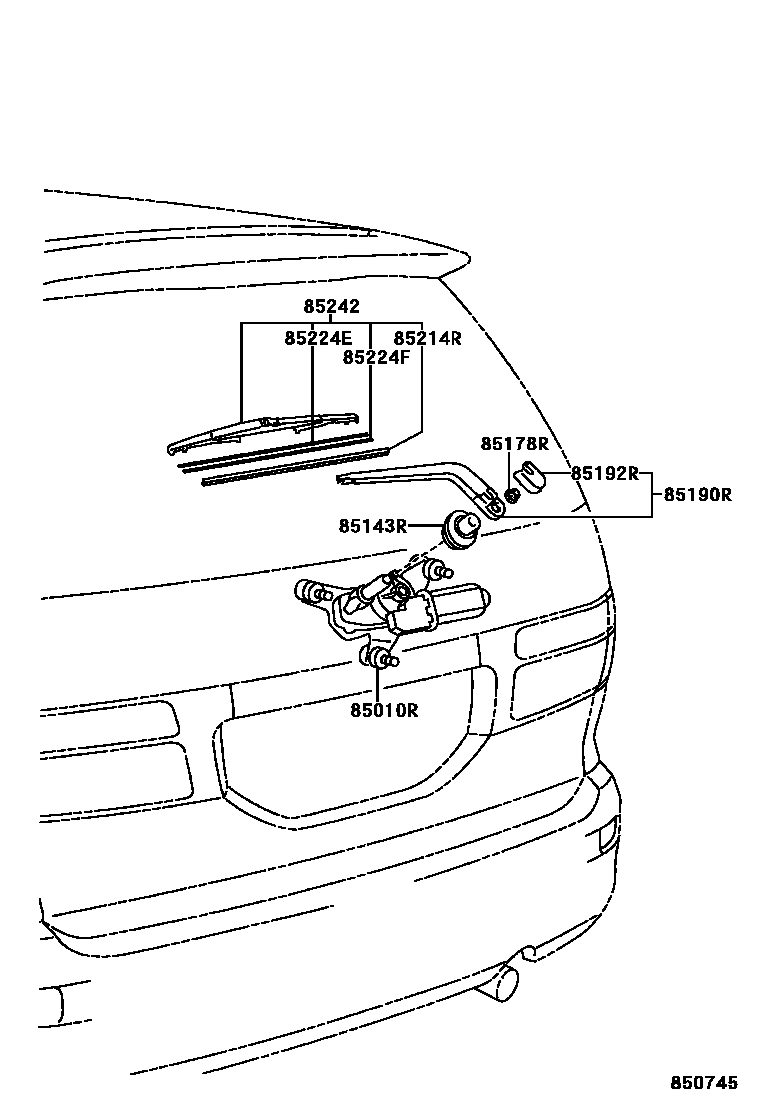

REAR WIPER

0001 1 0002 1

85010RMOTOR & LINK ASSY, RR WIPER

main85020-28010iACR30,CLR30¥33,300200002-200304

sub85020-28020¥33,400

sub85143-28060¥300

main85020-28020iACR30,CLR30..08S..MTM¥33,400200304-200404

85143RGROMMET, REAR WIPER MOTOR

main85143-28060iACR30,CLR30..08S..MTM¥300200304-200404

main85143-44010iACR30,CLR30¥0200002-200304

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06125iACR30..08S..ATM;ACR30,CLR30..06S,07S¥120200002-200404

85190RARM ASSY, REAR WIPER

main85241-28090iACR30..08S..ATM;ACR30,CLR30..06S,07S¥2,710200002-200404

85192RCOVER, REAR WIPER ARM

main85292-28030iACR30,CLR30¥360200002-200404

85214RRUBBER, REAR WIPER

main85214-10100iACR30,CLR30¥650200002-200404

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-28070iACR30,CLR30¥300200002-200304

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-28070iACR30,CLR30¥300200002-200304

85242BLADE, RR WIPER

main85242-28060iACR30,CLR30¥2,090200002-200404

9 parts on this diagram · 2 diagrams in section
