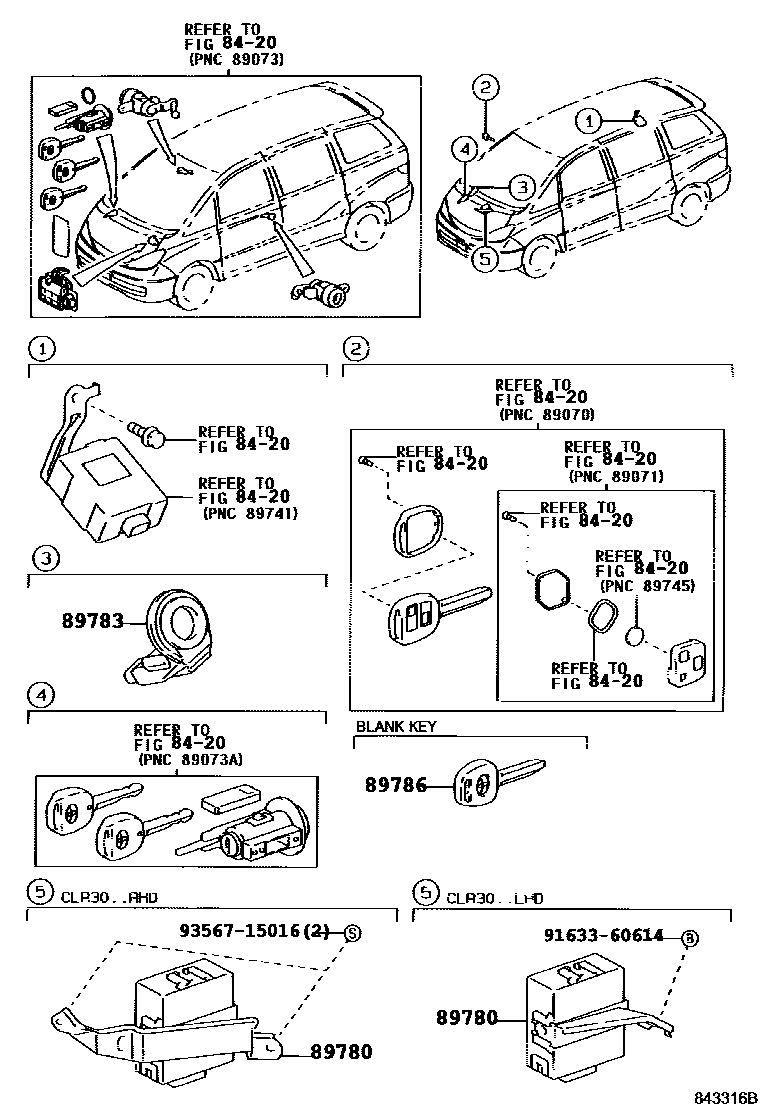

ANTI-THEFT DEVICE

0001 1 0002 1 0003 1

8420

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-28040iCLR30..LHD200102-200304

main89780-28050iCLR30..RHD200102-200304

main89780-28070iACR30,CLR30..LHD200304-200601

main89780-28080iACR30,CLR30..RHD200304-200601

89783AMPLIFIER, TRANSPONDER KEY

main89783-28060iACR30,CLR30..ARL,EUR,GCC200002-200109

sub89783-28061

main89783-28061iACR30,CLR30..ARL,EUR,GCC200109-200304

main89783-28070iACR30,CLR30200304-200601

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-20050iACR30,CLR30..ARL,EUR,GCC200002-200304

main89786-60170iACR30,CLR30200304-200601

9163360614

main91633-60614

9356715016

main93567-15016

6 parts on this diagram · 3 diagrams in section
