CLEARANCE & BACK SONAR

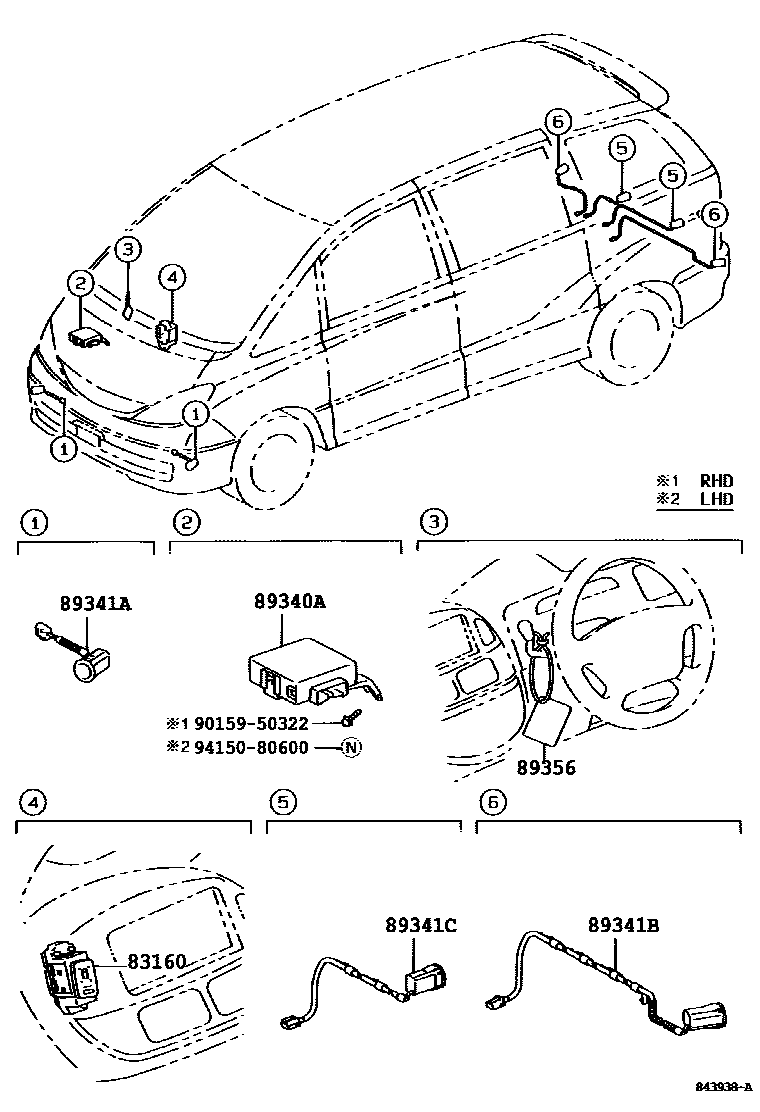

Parts diagram

83160INDICATOR ASSY, CLEARANCE WARNING

main83160-28020i200304-200404

main83160-28030i200304

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-28110i200102-200304

main89340-28120i200102-200304

main89340-28140i200304-200601

main89340-28150i200304-200601

89341ASENSOR, ULTRASONIC, NO.1

main89341-28300×2i200102-200206

main89341-28301×2i200206-200304

89341BSENSOR, ULTRASONIC, NO.2

main89341-28310i200102-200206

RH

main89341-28311i200206-200304

RH

main89341-28320i200102-200206

LH

main89341-28321i200206-200304

LH

main89341-28390-A0i200503

GCC PACKAGE 2;GCC PACKAGE 1,WHITE PM.,042

main89341-28390-A1×4i200304-200601

WHITE,056

main89341-28390-B0×4i200304-200601

SILVER ME.,1C0

main89341-28390-B1×4i200304-200601

GRAY ME.,1D2

main89341-28390-C0×4i200304-200601

BLACK,202

main89341-28390-D0×4i200304-200601

SUPER RED MC.,3J7

main89341-28390-E0×4i200304-200601

BEIGE ME.,4R4

main89341-28390-G0×4i200304-200601

DK.GREEN MC.,6Q7

main89341-28390-J0×4i200304-200601

DK.BLUE M.M.,8P4

89341CSENSOR, ULTRASONIC, NO.3

main89341-28330i200102-200304

RH

main89341-28340i200102-200304

LH

main89341-28410-A0i200503

GCC PACKAGE 2;GCC PACKAGE 1,WHITE PM.,042

main89341-28410-A1×2i200304-200601

WHITE,056

main89341-28410-B0×2i200304-200601

SILVER ME.,1C0

main89341-28410-B1×2i200304-200601

GRAY ME.,1D2

main89341-28410-C0×2i200304-200601

BLACK,202

main89341-28410-D0×2i200304-200601

SUPER RED MC.,3J7

main89341-28410-E0×2i200304-200601

BEIGE ME.,4R4

main89341-28410-G0×2i200304-200601

DK.GREEN MC.,6Q7

main89341-28410-J0×2i200304-200601

DK.BLUE M.M.,8P4

89356LABEL, CLEARANCE WARNING INFORMATION

main89356-28040i200102-200304

9015950322

main90159-50322

9415080600

main94150-80600

8 parts on this diagram · 3 diagrams in section
