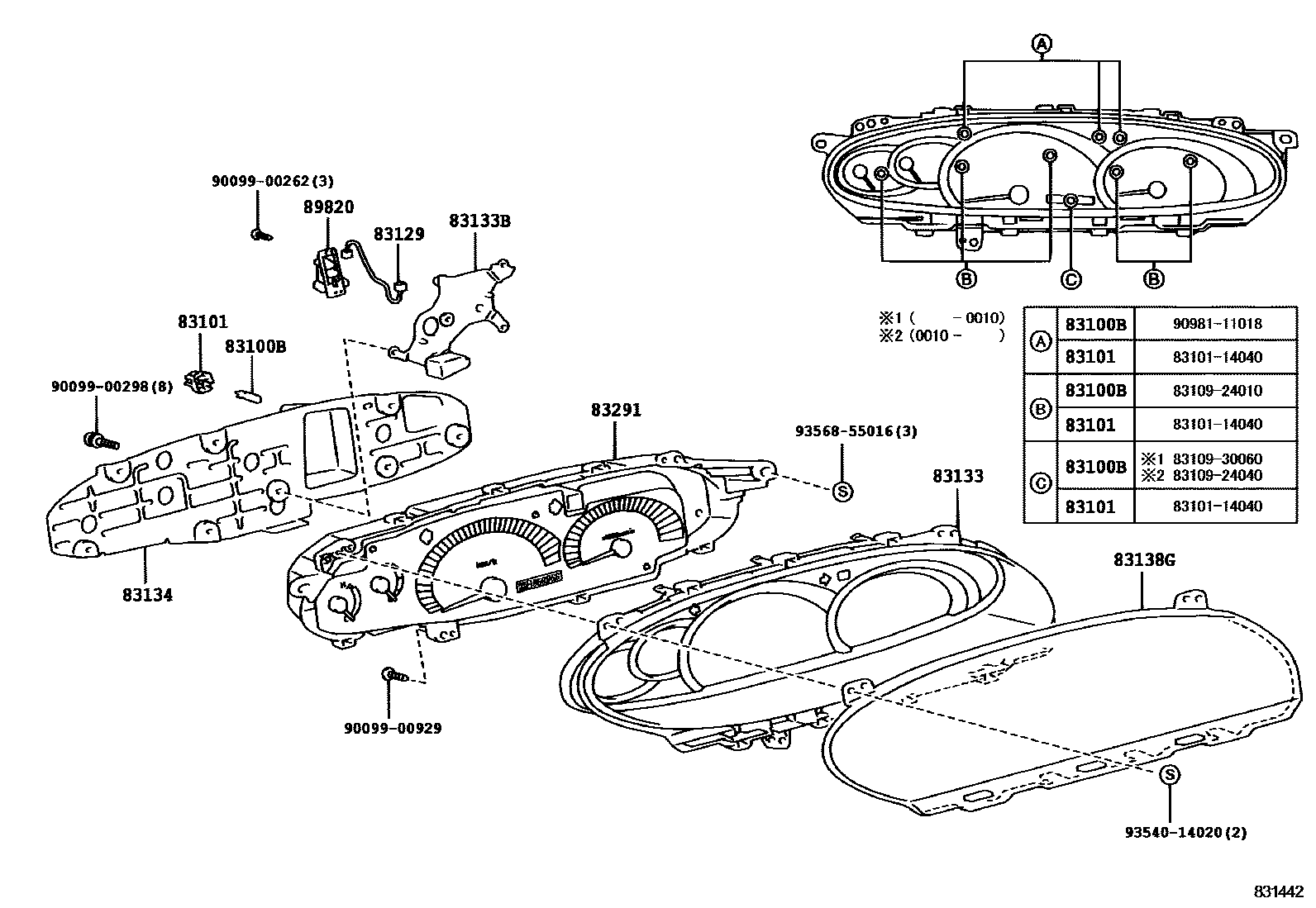

METER

0001 1ANALOGUE METER 0002 1OPTITRON METER 0003 1OPTITRON METER 0004 1INDICATOR 0005 1INDICATOR 0006 1CLOCK

83100METER ASSY, COMBINATION

main83800-28A80iACR30..RHD..07S..EUR200405

main83800-28A90iCLR30..RHD200405

83100BBULB, COMBINATION METER, NO.1

main83109-24010iACR30..ARL200002-200304

12V 1.4W,GREEN CAP,TYPE B:REFER TO ILLUSTRATION

main83109-24010iACR30..ARL200304

12V 1.4W,GREEN CAP,TYPE B:REFER ILLUST.

main83109-24040iACR30..ARL200010-200304

12V1.4W W(GREEN CAP),TYPE C:REFER TO ILLUSTRATION

main83109-24040iACR30..ARL200304

12V1.4W W(GREEN CAP),TYPE C:REFER ILLUST.

main83109-30060iACR30..ARL200002-200010

12V 2.0W,W/GREEN CAP,TYPE C:REFER TO ILLUSTRATION

main90981-11018iACR30..ARL200002-200304

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

main90981-11018iACR30..08S..MTM200304-200404

12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST.

main90981-11018iACR30..GCC200407

12V 1.2W W/O SOCKET

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14040iCLR30..08S200002-200404

83129WIRE, METER

main83875-28770iACR30,CLR30..RHD..08S..MTM200002-200404

main83875-28840iACR30..LHD;CLR30..LHD..(06S,07S)200002-200404

83133PLATE, COMBINATION METER, NO.1

main83811-28770iACR30..ARL200002-200304

main83811-28800iACR30,CLR30..RHD..EUR200002-200404

main83811-28840iACR30,CLR30..LHD200002-200404

83133BPLATE, COMBINATION METER, NO.3

main83813-28770iACR30,CLR30..RHD200002-200404

main83813-28840iACR30..LHD;CLR30..LHD..(06S,07S)200002-200404

83134COVER, COMBINATION METER, NO.1

main83821-28770iACR30..ARL200002-200304

main83821-28800iACR30,CLR30..RHD..EUR200002-200404

main83821-28840iCLR30..LHD..08S200002-200404

83138GGLASS, COMBINATION METER

main83852-28770iACR30..ARL200002-200304

main83852-28800iACR30,CLR30..08S..MTM200002-200404

83291COMPUTER, COMBINATION METER

main83801-28790iACR30..ARL200002-200304

main83801-28791iACR30..ARL200304

main83801-28820iACR30..RHD..(07S,08S)..ATM..EUR200002-200304

BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC

main83801-28830iACR30..RHD..EUR200002-200404

main83801-28840iACR30..LHD..(EUR,GEN)200002-200304

main83801-28840iACR30..GCC200307

PHILIPPINES SPEC

main83801-28890iCLR30..RHD..07S200102-200404

main83801-2J010iCLR30..LHD200102-200404

main83801-2J050iACR30..GCC200105-200407

sub83801-2J052

main83801-2J052iACR30..GCC200407

main83801-2J120iACR30..LHD..07S..ATM..EUR200109-200304

TAIWAN SPEC

89820SENSOR ASSY, INCLINATION

main89820-35010iACR30,CLR30200002-200601

9009900262

main90099-00262

9009900298

main90099-00298

9009900929

main90099-00929

9354014020

main93540-14020

9356855016

main93568-55016

15 parts on this diagram · 6 diagrams in section
