WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1ENGINE 0004 1COWL & SEAT 0005 1INSTRUMENT PANEL 0006 1DOOR 0007 1FLOOR 0008 1ROOF & BACK DOOR 0009 1CLAMP & BRACKET 0010 1CLAMP & BRACKET 0011 1CABLE BOND 0012 1CONNECTOR

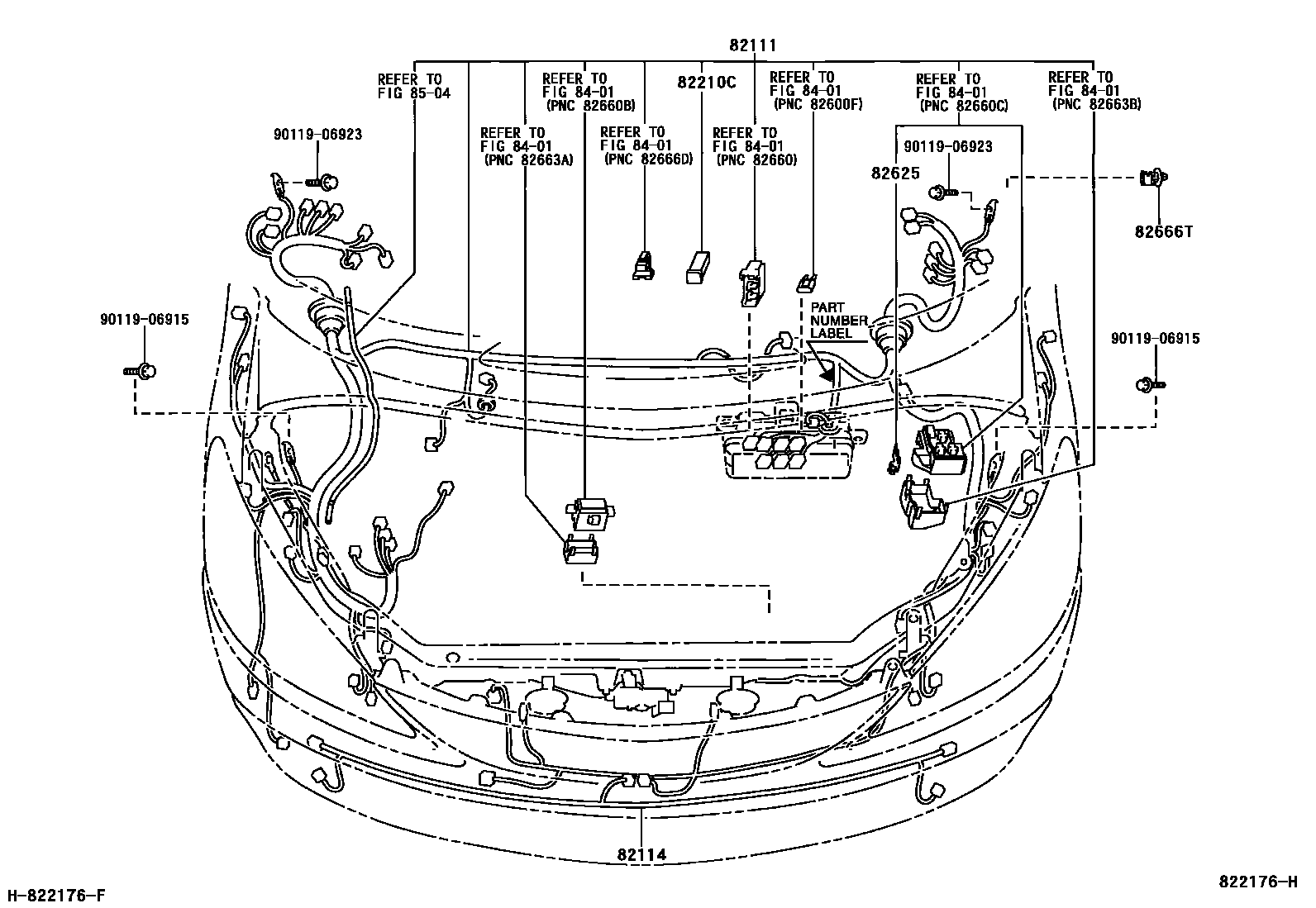

82111WIRE, ENGINE ROOM MAIN

main82111-2X100iACR30..GCC200105-200109

PART NUMBER LABEL=82111-2X100

main82111-2X101iACR30..GCC200109-200304

PART NUMBER LABEL=82111-2X101

main82115-28250iACR30..RHD..(07S,08S)..ATM..EUR200002-200102

PART NUMBER LABEL=82115-28250

sub82115-28251

main82115-28251iACR30..RHD..(07S,08S)..ATM..EUR200102-200109

PART NUMBER LABEL=82115-28251

main82115-28252iACR30..RHD..(07S,08S)..ATM..EUR200109-200304

PART NUMBER LABEL=82115-28252

main82115-28260iACR30..RHD..EUR200002-200008

PART NUMBER LABEL=82115-28260

main82115-28261iACR30..RHD..EUR200008-200102

PART NUMBER LABEL=82115-28261

sub82115-28262

main82115-28262iACR30..RHD..EUR200102-200109

PART NUMBER LABEL=82115-28262

main82115-28263iACR30..RHD..EUR200109-200304

PART NUMBER LABEL=82115-28263

main82115-28270iACR30..RHD..EUR200002-200008

PART NUMBER LABEL=82115-28270

main82115-28271iACR30..RHD..EUR200008-200102

PART NUMBER LABEL=82115-28271

sub82115-28272

main82115-28272iACR30..RHD..EUR200102-200109

PART NUMBER LABEL=82115-28272

main82115-28273iACR30..RHD..EUR200109-200304

PART NUMBER LABEL=82115-28273

main82115-28280iACR30..ARL200002-200102

PART NUMBER LABEL=82115-28280

sub82115-28281

main82115-28281iACR30..ARL200102-200109

PART NUMBER LABEL=82115-28281

main82115-28282iACR30..ARL200109-200304

PART NUMBER LABEL=82115-28282

main82115-28290iACR30..ARL200002-200008

PART NUMBER LABEL=82115-28290

main82115-28291iACR30..ARL200008-200102

PART NUMBER LABEL=82115-28291

sub82115-28292

main82115-28292iACR30..ARL200102-200109

PART NUMBER LABEL=82115-28292

main82115-28293iACR30..ARL200109-200304

PART NUMBER LABEL=82115-28293

main82115-28300iACR30..LHD..(07S,08S)..EUR200002-200008

PART NUMBER LABEL=82115-28300

sub82115-28310

main82115-28301iACR30..LHD..(07S,08S)..EUR200008-200102

PART NUMBER LABEL=82115-28301

main82115-28302iACR30..LHD..(07S,08S)..EUR200102-200109

PART NUMBER LABEL=82115-28302

main82115-28303iACR30..LHD..(07S,08S)..EUR200109-200304

PART NUMBER LABEL=82115-28303

main82115-28310iACR30..DX..ARL;ACR30..07S..EUR;ACR30..RHD..08S..MTM;ACR30..LHD..(06S,08S)..EUR200002-200008

PART NUMBER LABEL=82115-28310

main82115-28311iACR30..LHD..EUR200008-200102

PART NUMBER LABEL=82115-28311

sub82115-28312

main82115-28312iACR30..LHD..(EUR,GCC)200102-200109

PART NUMBER LABEL=82115-28312

main82115-28313iACR30..LHD..(EUR,GCC)200109-200304

PART NUMBER LABEL=82115-28313

main82115-28320iACR30..LHD..EUR200002-200008

PART NUMBER LABEL=82115-28320

main82115-28321iACR30..LHD..EUR200008-200102

PART NUMBER LABEL=82115-28321

sub82115-28322

main82115-28322iACR30..LHD..EUR200102-200109

PART NUMBER LABEL=82115-28322

main82115-28323iACR30..LHD..EUR200109-200304

PART NUMBER LABEL=82115-28323

main82115-28330iACR30..LHD..EUR200002-200008

PART NUMBER LABEL=82115-28330

main82115-28331iACR30..LHD..EUR200008-200102

PART NUMBER LABEL=82115-28331

sub82115-28332

main82115-28332iACR30..LHD..EUR200102-200109

PART NUMBER LABEL=82115-28332

main82115-28333iACR30..LHD..EUR200109-200304

PART NUMBER LABEL=82115-28333

main82115-28340iACR30..GEN200002-200102

PART NUMBER LABEL=82115-28340

sub82115-28341

main82115-28341iACR30..GEN200102-200109

PART NUMBER LABEL=82115-28341

main82115-28342iACR30..GEN200109-200304

PART NUMBER LABEL=82115-28342

main82115-28350iACR30..GEN200002-200008

PART NUMBER LABEL=82115-28350

main82115-28351iACR30..GEN200008-200102

PART NUMBER LABEL=82115-28351

sub82115-28352

main82115-28352iACR30..GEN200102-200109

PART NUMBER LABEL=82115-28352

main82115-28353iACR30..GEN200109-200304

PART NUMBER LABEL=82115-28353

main82115-28370iACR30..LHD..EUR200002-200008

PART NUMBER LABEL=82115-28370

main82115-28371iACR30..LHD..EUR200008-200102

PART NUMBER LABEL=82115-28371

sub82115-28372

main82115-28372iACR30..LHD..EUR200102-200109

PART NUMBER LABEL=82115-28372

main82115-28373iACR30..LHD..EUR200109-200304

PART NUMBER LABEL=82115-28373

main82115-28380iCLR30..RHD200102-200109

PART NUMBER LABEL=82115-28380

main82115-28381iCLR30..RHD200109-200304

PART NUMBER LABEL=82115-28381

main82115-28390iCLR30..LHD200102-200109

PART NUMBER LABEL=82115-28390

main82115-28391iCLR30..LHD200109-200304

PART NUMBER LABEL=82115-28391

main82115-28400iCLR30..LHD200102-200109

PART NUMBER LABEL=82115-28400

main82115-28401iCLR30..LHD200109-200304

PART NUMBER LABEL=82115-28401

main82115-28730iACR30..LHD..EUR200304

PART NUMBER LABEL=82115-28730

main82115-28740iACR30..LHD..(EUR,GCC)200304

PART NUMBER LABEL=82115-28740

main82115-28750iACR30..LHD..(EUR,GEN)200304

PART NUMBER LABEL=82115-28750

main82115-28760iACR30..LHD..EUR200304

PART NUMBER LABEL=82115-28760

main82115-28770iACR30..LHD..EUR200304

PART NUMBER LABEL=82115-28770

main82115-28780iACR30..LHD..EUR200304

PART NUMBER LABEL=82115-28780

main82115-28790iACR30..LHD..EUR200304

PART NUMBER LABEL=82115-28790

main82115-28800iACR30..GCC200304

PART NUMBER LABEL=82115-28800

main82115-28810iACR30..RHD..EUR200304

PART NUMBER LABEL=82115-28810

main82115-28820iACR30..RHD..EUR200304

PART NUMBER LABEL=82115-28820

main82115-28830iACR30..RHD..EUR200304

PART NUMBER LABEL=82115-28830

main82115-28840iACR30..RHD..EUR200304

PART NUMBER LABEL=82115-28840

main82115-28850iACR30..ARL200304

PART NUMBER LABEL=82115-28850

main82115-28860iACR30..ARL200304

PART NUMBER LABEL=82115-28860

main82115-28870iCLR30..RHD200304

PART NUMBER LABEL=82115-28870

main82115-28880iCLR30..RHD200304

PART NUMBER LABEL=82115-28880

main82115-28890iCLR30..LHD200304

PART NUMBER LABEL=82115-28890

main82115-2J010iCLR30..LHD200304

PART NUMBER LABEL=82115-2J010

main82115-2J020iCLR30..LHD200304

PART NUMBER LABEL=82115-2J020

main82115-2J030iCLR30..LHD200304

PART NUMBER LABEL=82115-2J030

82114WIRE, ENGINE ROOM, NO.4

main82114-28010iACR30,CLR30200102-200304

main82114-28070iACR30,CLR30200304

main82114-28080iACR30,CLR30200304

W(CLEARANCE & BACK SONAR)

82210CFUSIBLE LINK

main90982-08203iACR30,CLR30200002-200304

80A,TERM.:MALE,BLK

main90982-08246iACR30,CLR30200002-200304

100A,TERM.:MALE,BLUE

main90982-08280iACR30,CLR30200002-200304

30A,TERM.:FEMALE,PNK

main90982-08281iACR30,CLR30200002-200304

40A,TERM.:FEMALE,GRN

main90982-08282iACR30,CLR30..EUR,GEN200002-200304

50A,TERM.:FEMALE,RED

main90982-08286iACR30,CLR30200002-200304

140A,TERM.:MALE,RBR

82625TERMINAL, FUSIBLE LINK

main82625-28020iACR30,CLR30..EUR,GEN200002-200304

82666THOLDER, CONNECTOR NO.14

main82666-20280iACR30,CLR30..LHD200002-200304

8401

8504

9011906915

main90119-06915

9011906923

main90119-06923

9 parts on this diagram · 12 diagrams in section
