INTERIOR LAMP

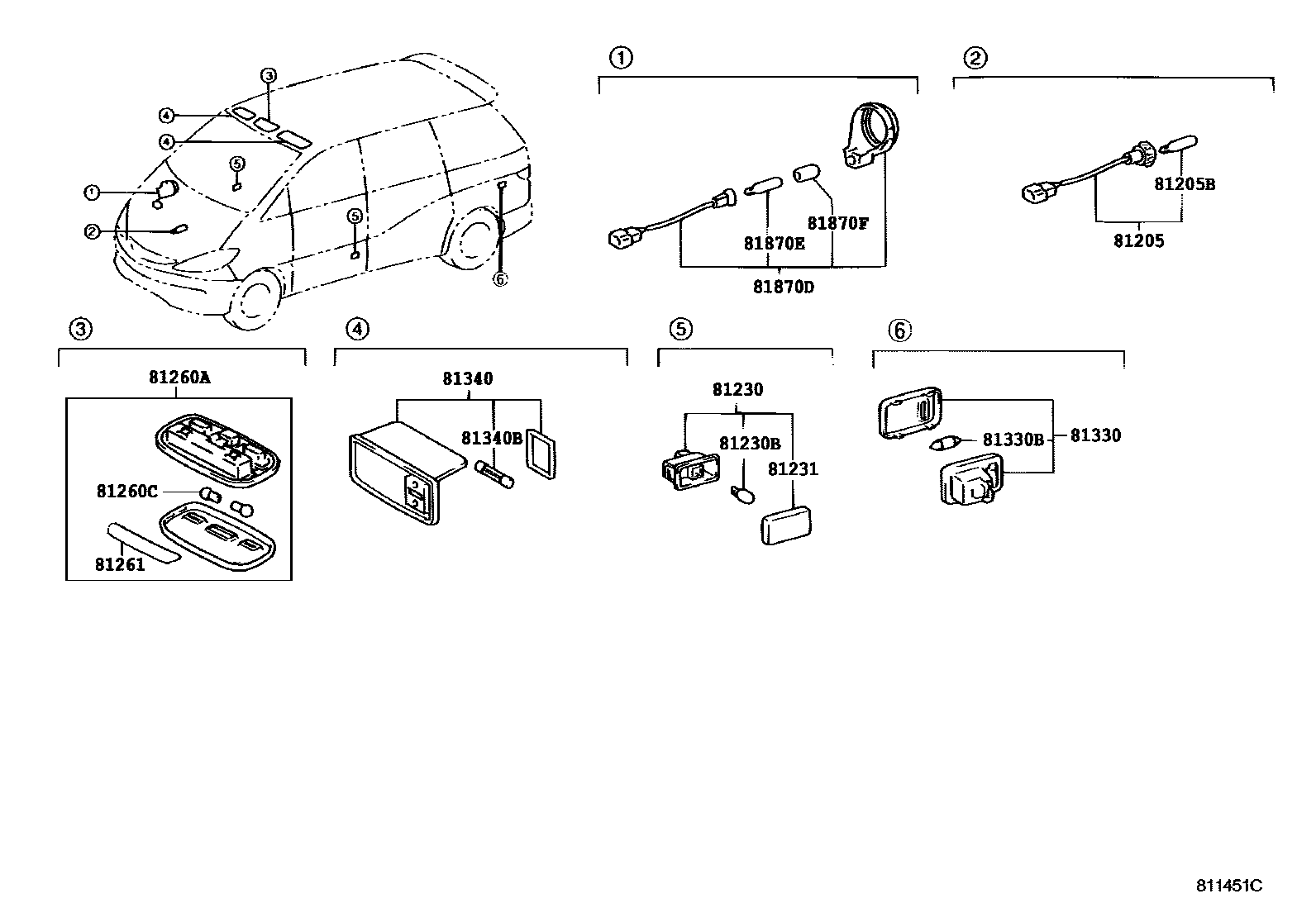

Parts diagram

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-28050i200002-200304

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014i200002-200304

14V 1.4W

81230LAMP ASSY, COURTESY

main81230-30140×2i200002-200304

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2i200002-200304

12V 3.8W

81231LENS, COURTESY LAMP

main81231-50010×2i200002-200304

81260ALAMP ASSY, MAP

main81260-16061-B1i200002-200304

MD.CHARCOAL,TRIM12

main81260-16061-B2i200002-200304

LT. BLUISH GRAY,TRIM11

main81260-16061-B3i200304-200601

LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2i200002-200304

12V 8W

81261LENS AND COVER, MAP LAMP

main81261-16060i200304

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-12030-B3i200010-200304

MD.CHARCOAL,TRIM12

main81250-12030-B6i200010-200304

LT. BLUISH GRAY,TRIM11

main81250-12030-B9i200304-200601

MD.GRAY,TRIM1#

main81250-95J05-B1i200002-200010

LT. BLUISH GRAY,TRIM11

main81250-95J05-B2i200002-200010

MD.CHARCOAL,TRIM12

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-13050i200002-200304

12V 5W

81340LAMP ASSY, VANITY

main81340-33090-B3i200105-200304

MD.CHARCOAL,TRIM12,RH

main81340-33090-B6i200002-200105

LT.BLUISH GRAY,TRIM11,RH

main81340-33090-B9i200304-200401

LT.GRAY,TRIM1#,LH

main81350-33040-B3i200105-200304

MD.CHARCOAL,TRIM12,LH

main81350-33040-B6i200105-200304

LT.BLUISH GRAY,TRIM11,LH

main81350-33040-B9i200304-200601

LT.GRAY,TRIM1#,RH

81340BBULB (FOR VANITY LAMP)

main90981-14003×2i200105-200304

12V 1.5W

81870DLAMP ASSY, KEY CYLINDER

main81870-28040i200002-200304

81870EBULB, KEY CYLINDER LAMP

main90981-11014i200002-200304

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070i200002-200304

15 parts on this diagram · 3 diagrams in section
