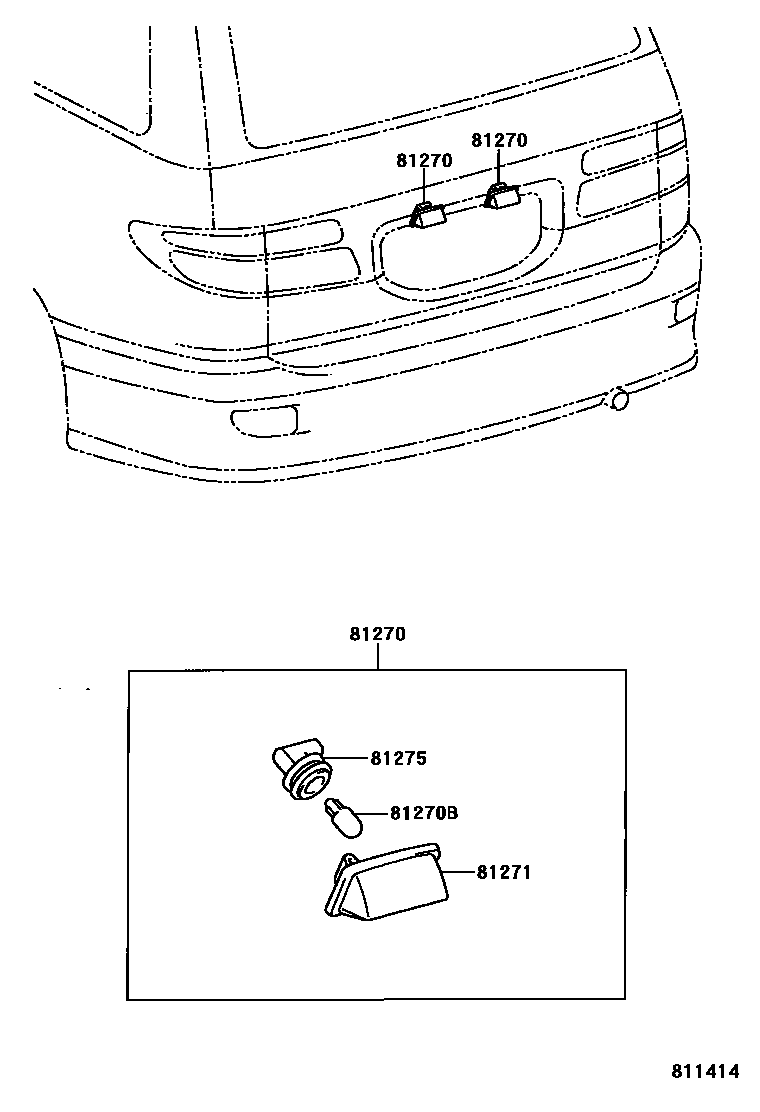

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-28130iACR30,CLR30200002-200404

RH

main81690-28010iACR30,CLR30..08S..MTM200002-200404

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-28130iACR30,CLR30200002-200404

RH

main81691-28010iACR30,CLR30..08S..MTM200002-200404

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501iACR30..08S..ATM;ACR30,CLR30..06S,07S200002-200404

4 parts on this diagram · 1 diagram in section
