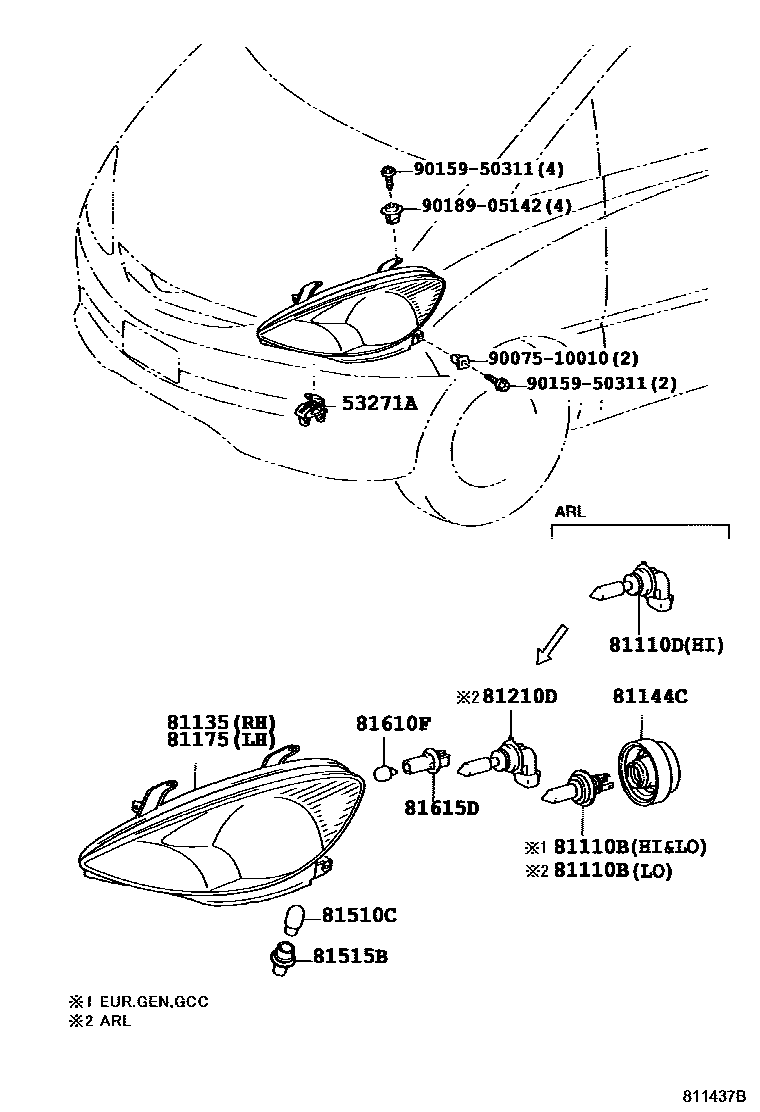

HEADLAMP

0001 1 0002 1

53271ABRACKET, HEADLAMP MOUNTING

main53271-44010×2iACR30,CLR30..08S..MTM200304-200404

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13063×2iACR30,CLR30..08S..MTM200304-200404

12V 55W,HALOGEN

main90981-22004×2iACR30,CLR30200002-200304

12V 60/55W,*HAL *WH

sub90981-13055

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2iACR30,CLR30..EUR,GCC,GEN200304-200601

12V65W(SAE),60W(ECE)

main90981-13066×2iACR30..ARL200304-200601

12V 65W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-28540iACR30..ARL200002-200304

main81130-28570iACR30,CLR30..LHD..(EUR,GEN)200002-200304

RH TRAFFIC SPEC

main81130-28580iACR30,CLR30..RHD..EUR200002-200304

main81130-28620iACR30..GCC200105-200304

main81130-28730iACR30..ARL200304

main81130-28770iCLR30..LHD..08S200304-200404

RH TRAFFIC SPEC

main81130-28780iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304

main81130-28790iACR30..GCC200304

81144CCOVER, HEADLAMP SOCKET

main90075-65002×2iACR30,CLR30200002-200105

main90075-65019×2iACR30,CLR30200105-200304

81175UNIT ASSY, HEADLAMP, LH

main81170-28540iACR30..ARL200002-200304

main81170-28570iACR30,CLR30..LHD..(EUR,GEN)200002-200304

RH TRAFFIC SPEC

main81170-28580iACR30,CLR30..RHD..EUR200002-200304

main81170-28600iACR30..GCC200105-200304

main81170-28730iACR30..ARL200304

main81170-28770iACR30,CLR30..LHD..(06S,07S)..(EUR,GEN)200304

RH TRAFFIC SPEC

main81170-28780iACR30..08S..ATM..EUR;ACR30,CLR30..RHD..07S..EUR200304

main81170-28790iACR30..GCC200304

81210DBULB, FOG LAMP

main90080-81040×2iACR30,CLR30..EUR,GCC,GEN200002-200304

12V 51W

sub90981-13047

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iACR30,CLR30200002-200304

12V 21W

main90981-15011×2iACR30,CLR30..08S..MTM200304-200404

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-60028×2iACR30..08S..ATM;ACR30,CLR30..06S,07S200304

main90075-99128×2iACR30,CLR30200002-200304

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iACR30,CLR30200002-200304

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60030×2iACR30,CLR30200002-200105

main90075-60046×2iACR30,CLR30200105-200304

9007510010

main90075-10010

9015950311

main90159-50311

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
