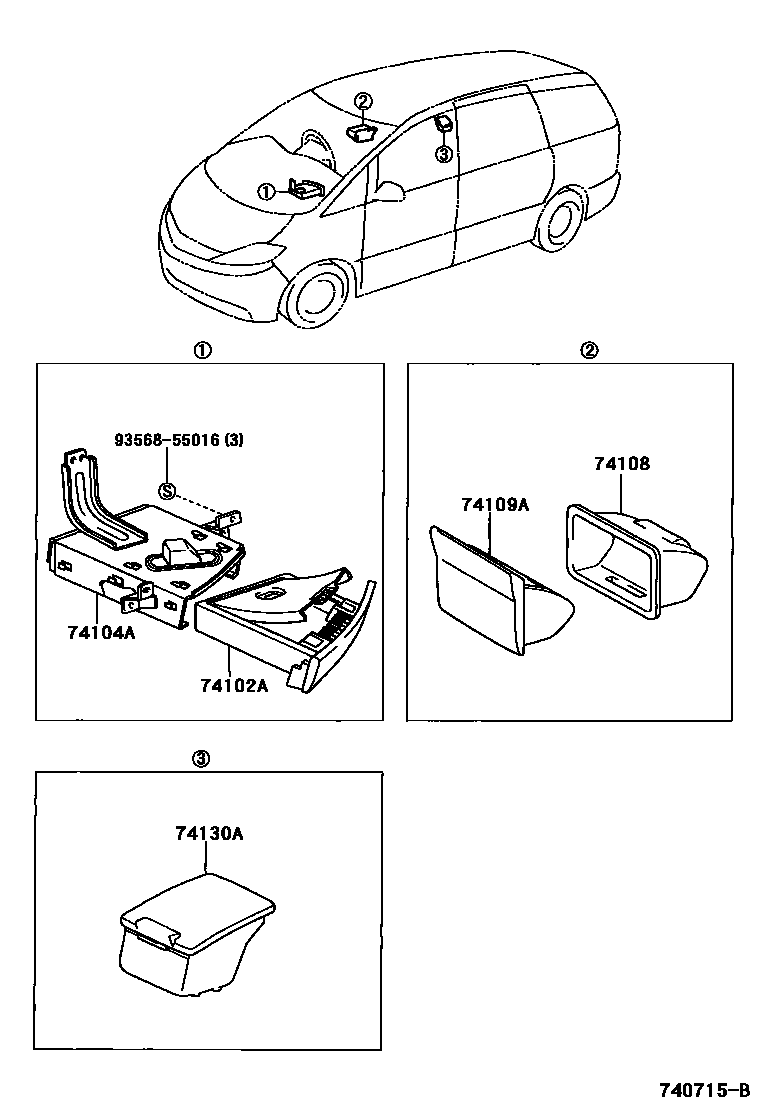

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-28060-B0iACR30,CLR30..RHD200002-200304

LT. BLUISH GRAY,TRIM11

sub74102-28060

main74102-28060-B1iACR30,CLR30..RHD200002-200304

MD.CHARCOAL,TRIM12

sub74102-28060

main74102-28060-B2iACR30,CLR30..RHD..08S..MTM200304-200601

MD.GRAY,TRIM1#

sub74102-28060

main74102-28070-B0iACR30,CLR30..LHD200002-200304

LT. BLUISH GRAY,TRIM11

sub74102-28070

main74102-28070-B1iACR30,CLR30..LHD200002-200304

MD.CHARCOAL,TRIM12

sub74102-28070

main74102-28070-B2iCLR30..LHD..08S200304-200601

MD.GRAY,TRIM1#

sub74102-28070

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-28100iACR30,CLR30..RHD200002-200401

main74104-28110iCLR30..LHD..08S200002-200401

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-28010iACR30,CLR30200002-200601

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-28010-B0iACR30,CLR30200002-200304

LT. BLUISH GRAY,TRIM11

sub74109-28010

main74109-28010-B1iACR30,CLR30200002-200304

MD.CHARCOAL,TRIM12

sub74109-28010

main74109-28010-B4iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub74109-28010

74130ARECEPTACLE ASSY, REAR ASH, RH

main74130-28020-B0iACR30..RHD..07S..ATM..EUR200002-200304

TRIM = TYPE A-*104,LT. BLUISH GRAY,TRIM11

sub74130-28020

main74130-28020-B0iACR30..GL..(ARL,GEN)200002-200304

TRIM = TYPE B-*104,LT. BLUISH GRAY,TRIM11

sub74130-28020

main74130-28020-B0iACR30..GCC200105-200304

LT. BLUISH GRAY,TRIM11

sub74130-28020

main74130-28020-B1iACR30..GCC200105-200304

MD.CHARCOAL,TRIM12

sub74130-28020

main74130-28020-B1iACR30,CLR30..ARL,EUR,GEN200002-200304

TRIM = TYPE A-*104,MD.CHARCOAL,TRIM12

sub74130-28020

main74130-28020-B2iACR30..(06S,07S)..EUR200102-200304

TRIM = TYPE G-*104,BLUISH GRAY,TRIM11

sub74130-28020

main74130-28020-B2iCLR30;ACR30..08S..(ARL,EUR,GEN)200102-200304

TRIM = TYPE A-*104,BLUISH GRAY,TRIM11

sub74130-28020

main74130-28020-B3iACR30,CLR30200304-200601

MD.GRAY,TRIM1#

sub74130-28020

9356855016

main93568-55016

6 parts on this diagram · 1 diagram in section
