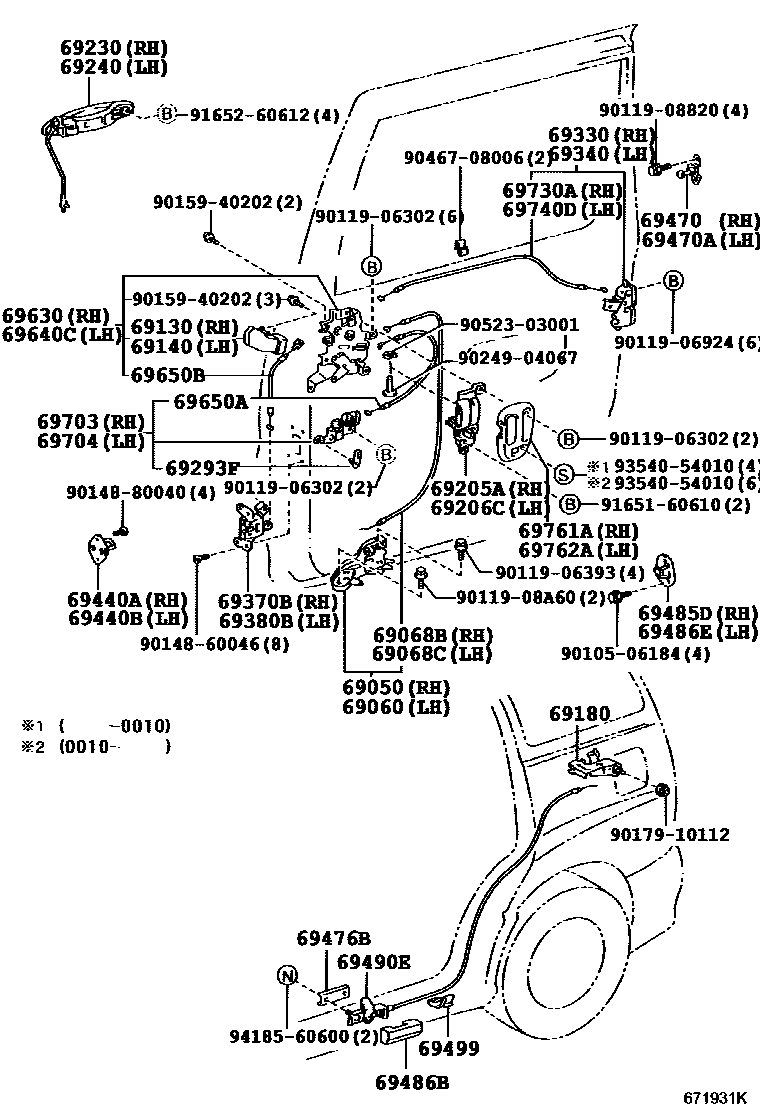

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-28010iACR30,CLR30200002-200304

main69050-28030iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69060-28040iACR30,CLR30200002-200304

main69060-28050iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69068BCABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2

main69068-28010iACR30,CLR30200002-200304

69068CCABLE SUB-ASSY, CENTER DOOR REMOTE CONTROL, NO.2

main69068-28010iACR30,CLR30200002-200304

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-28030iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304-200601

W(AUTO SLIDE DOOR & EASY CLOSER)

main69130-28050iACR30,CLR30200002-200601

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-28080iACR30,CLR30200002-200601

main69140-28090iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304-200601

W(AUTO SLIDE DOOR & EASY CLOSER)

69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER

main69180-28040iACR30200002-200003

sub69040-28180

main69180-28041iACR30,CLR30200003-200103

sub69180-28060

main69180-28060iACR30,CLR30200103-200304

main69180-28070iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-28010-B0iACR30,CLR30200002-200304

BLUISH GRAY,TRIM11

sub69207-28010

main69207-28010-B1iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

sub69207-28010

main69207-28010-B2iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

sub69207-28010

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69208-28010-B0iACR30,CLR30200002-200304

BLUISH GRAY,TRIM11

sub69208-28010

main69208-28010-B1iACR30,CLR30200002-200304

DK.CHARCOAL,TRIM12

sub69208-28010

main69208-28010-B2iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

sub69208-28010

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-28070-A0iACR30..GL..GCC200503

GCC PACKAGE 1,WHITE PM.,042

main69230-28070-A1iACR30,CLR30200002-200601

WHITE,056

main69230-28070-B0iACR30,CLR30200002-200601

SILVER ME.,1C0

main69230-28070-B2iACR30,CLR30200304-200601

GRAY ME.,1D2

main69230-28070-C0iACR30,CLR30200002-200304

BLACK MC.CC.,210

main69230-28070-C1iACR30,CLR30200304-200601

BLACK,202

main69230-28070-D0iACR30,CLR30200002-200601

RED MC.,3J7

main69230-28070-E0iACR30,CLR30200304-200601

BEIGE ME.,4R4

main69230-28070-F0iACR30,CLR30200002-200304

CHAMPAGNE ME.,583

main69230-28070-G0iACR30,CLR30200002-200601

DK.GREEN MC.,6Q7

main69230-28070-J0iACR30,CLR30200002-200601

DK.BLUE MC.,8P4

main69230-28070-J1iACR30,CLR30200002-200304

GRAYISH BLUE ME.,8P6

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-28100-A0iACR30..GL..GCC200503

GCC PACKAGE 1,WHITE PM.,042

main69240-28100-A1iACR30,CLR30200002-200601

WHITE,056

main69240-28100-B0iACR30,CLR30200002-200601

SILVER ME.,1C0

main69240-28100-B2iACR30,CLR30200304-200601

GRAY ME.,1D2

main69240-28100-C0iACR30,CLR30200002-200304

BLACK MC.CC.,210

main69240-28100-C1iACR30,CLR30200304-200601

BLACK,202

main69240-28100-D0iACR30,CLR30200002-200601

RED MC.,3J7

main69240-28100-E0iACR30,CLR30200304-200601

BEIGE ME.,4R4

main69240-28100-F0iACR30,CLR30200002-200304

CHAMPAGNE ME.,583

main69240-28100-G0iACR30,CLR30200002-200601

DK.GREEN MC.,6Q7

main69240-28100-J0iACR30,CLR30200002-200601

DK.BLUE MC.,8P4

main69240-28100-J1iACR30,CLR30200002-200304

GRAYISH BLUE ME.,8P6

69293FSNAP, DOOR OUTSIDE HANDLE

main69293-22010iACR30,CLR30200002-200304

RH

main69293-22020iACR30,CLR30200002-200304

LH

69330LOCK ASSY, REAR DOOR, RH

main69200-28012iACR30,CLR30..LHD..MTM;ACR30..ATM..(EUR,GCC,GEN)200304

W(EASY CLOSER)

main69330-28050iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200111

sub69330-28051

main69330-28051iACR30..ATM;ACR30,CLR30..LHD..MTM200111-200304

main69330-28060iCLR30..RHD200102-200304

main69330-28060iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

69340LOCK ASSY, REAR DOOR, LH

main69300-28051iACR30,CLR30..LHD..MTM;ACR30..ATM..(EUR,GCC,GEN)200304

W(EASY CLOSER)

main69340-28140iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200111

sub69340-28141

main69340-28141iACR30..ATM;ACR30,CLR30..LHD..MTM200111-200304

main69340-28150iCLR30..RHD200002-200304

W(DOUBLE-LOCK)

main69340-28150iCLR30..RHD200102-200304

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28060iACR30,CLR30200002-200304

sub69370-28061

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-28060iACR30,CLR30200002-200304

sub69380-28061

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iACR30,CLR30200002-200304

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iACR30,CLR30200002-200304

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28080iACR30,CLR30200008-200304

main69470-28090iACR30,CLR30..LHD..MTM;ACR30..ATM..(EUR,GCC,GEN)200304

W(EASY CLOSER)

main69470-95D00iACR30200002-200008

sub69470-46010

69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH

main69470-28080iACR30,CLR30200008-200304

main69470-28090iACR30,CLR30..LHD..MTM;ACR30..ATM..(EUR,GCC,GEN)200304

W(EASY CLOSER)

main69470-95D00iACR30200002-200008

sub69470-46010

69476BPLATE, SLIDE DOOR HALF OPEN STOPPER

main69476-28010iACR30,CLR30200002-200304

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-28010iACR30,CLR30200002-200304

main69485-28030iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69486BCOVER, SLIDE DOOR HALF OPEN STOPPER

main69486-28040iACR30,CLR30200002-200304

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-28020iACR30,CLR30200002-200304

main69486-28030iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69490ESTOPPER ASSY, SLIDE DOOR HALF OPEN

main69490-28020iACR30200002-200003

sub69040-28180

sub69040-28190

main69490-28021iACR30,CLR30200003-200304

69499CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE

main69499-28010iACR30,CLR30200002-200304

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-28120iACR30,CLR30200002-200304

main69630-28140iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-28200iACR30,CLR30200002-200304

main69640-28210iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69650ACABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28040iACR30,CLR30200002-200105

sub69650-28041

main69650-28041iACR30,CLR30200105-200304

69650BCABLE ASSY, SLIDE DOOR LOCK CONTROL

main69650-28120iACR30,CLR30200002-200304

main69650-28120iACR30..(07S,08S)..ATM..(EUR,GCC,GEN)200304

W(AUTO SLIDE DOOR & EASY CLOSER)

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69703-28010iACR30,CLR30200002-200304

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69704-28010iACR30,CLR30200002-200304

69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH

main69730-28050iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69730-28060iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

main69730-28060iCLR30..RHD200102-200304

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-28050iACR30..LHD..06S..ATM;ACR30..(07S,08S)..ATM;ACR30,CLR30..LHD..MTM200002-200304

main69730-28060iACR30..RHD..EUR200002-200304

W(DOUBLE-LOCK)

main69730-28060iCLR30..RHD200102-200304

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-28010-B0iACR30200002-200010

BLUISH GRAY,TRIM11

sub69761-28010

main69761-28010-B1iACR30200002-200010

DK.CHARCOAL,TRIM12

sub69761-28010

main69761-28011-B0iACR30,CLR30200010-200304

BLUISH GRAY,TRIM11

sub69761-28011

main69761-28011-B1iACR30,CLR30200010-200304

DK.CHARCOAL,TRIM12

sub69761-28011

main69761-28011-B2iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

sub69761-28011

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-28010-B0iACR30200002-200010

BLUISH GRAY,TRIM11

sub69762-28010

main69762-28010-B1iACR30200002-200010

DK.CHARCOAL,TRIM12

sub69762-28010

main69762-28011-B0iACR30,CLR30200010-200304

BLUISH GRAY,TRIM11

sub69762-28011

main69762-28011-B1iACR30,CLR30200010-200304

DK.CHARCOAL,TRIM12

sub69762-28011

main69762-28011-B2iACR30,CLR30200304-200601

DK.GRAY,TRIM1#

sub69762-28011

9010506184

main90105-06184

9011906302

main90119-06302

9011906393

main90119-06393

9011906924

main90119-06924

9011908820

main90119-08820

9011908A60

main90119-08A60

9014860046

main90148-60046

9014880040

main90148-80040

9015940202

main90159-40202

9017910112

main90179-10112

9024904067

main90249-04067

9046708006

main90467-08006

9052303001

main90523-03001

9165160610

main91651-60610

9165260612

main91652-60612

9354054010

main93540-54010

9418560600

main94185-60600
