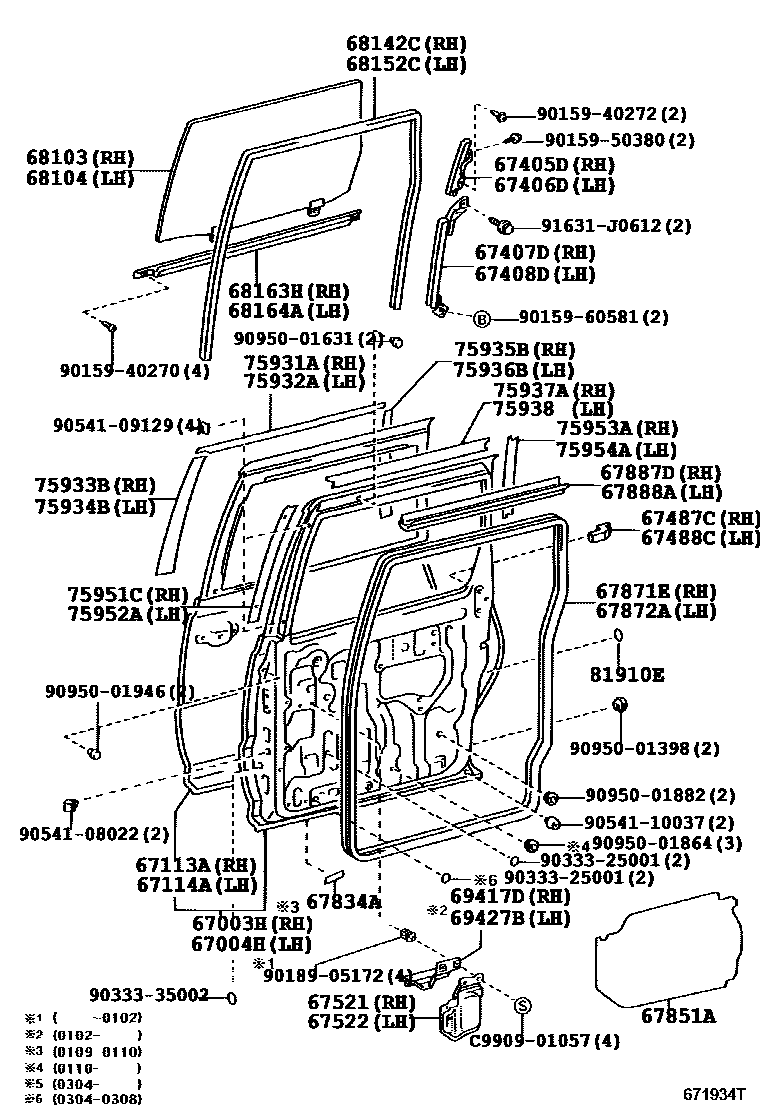

REAR DOOR PANEL & GLASS
67003HDOOR SUB-ASSY, SLIDE, RH
W(EASY CLOSER)
W(AUTO SLIDE DOOR & EASY CLOSER)
67004HDOOR SUB-ASSY, SLIDE, LH
W(AUTO SLIDE DOOR & EASY CLOSER)
W(EASY CLOSER)
67113APANEL, SLIDE DOOR, OUTER RH
67114APANEL, SLIDE DOOR, OUTER LH
67405DGUIDE SUB-ASSY, SLIDE DOOR WINDOW, FRONT RH
67406DGUIDE SUB-ASSY, SLIDE DOOR WINDOW, FRONT LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
67488CSEAL, REAR DOOR REAR GUIDE, LH
67521COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67522COVER SUB-ASSY, SLIDE DOOR PANEL, LH
67834ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1
W(DOUBLE-LOCK),RH
W(DOUBLE-LOCK),LH
67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH
67872AWEATHERSTRIP, SLIDE DOOR, NO.1 LH
67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH
67888AWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=4.0,GRAY
*TEM,T=4.0,GRAY
*TEM,T=4.0,GREEN
*TEM,T=4.0,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=4.0,GRAY
*TEM,T=4.0,GRAY
*TEM,T=4.0,GREEN
*TEM,T=4.0,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68163HWEATHERSTRIP, REAR DOOR GLASS, OUTER RH
68164AWEATHERSTRIP, REAR DOOR GLASS, OUTER LH
69417DCOVER, SLIDE DOOR OPEN STOP, RH
69427BCOVER, SLIDE DOOR OPEN STOP, LH
75931ATAPE, BLACK OUT, OUTER UPPER RH
75932ATAPE, BLACK OUT, OUTER UPPER LH
75933BTAPE, BLACK OUT, OUTER FRONT RH
75934BTAPE, BLACK OUT, OUTER FRONT LH
75935BTAPE, BLACK OUT, OUTER REAR RH
75936BTAPE, BLACK OUT, OUTER REAR LH
75937ATAPE, BLACK OUT, INNER UPPER RH
75938TAPE, BLACK OUT, INNER UPPER LH
75951CTAPE, BLACK OUT, INNER FRONT RH
75952ATAPE, BLACK OUT, INNER FRONT LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
81910EREFLECTOR ASSY, REFLEX
9015940270
9015940272
9015950380
9015960581
9018905172
9033325001
9033335002
9054108022
9054109129
9054110037
9095001398
9095001631
9095001864
9095001882
9095001946
91631J0612
C990901057PIN, W/HEAD
56 parts on this diagram · 3 diagrams in section
