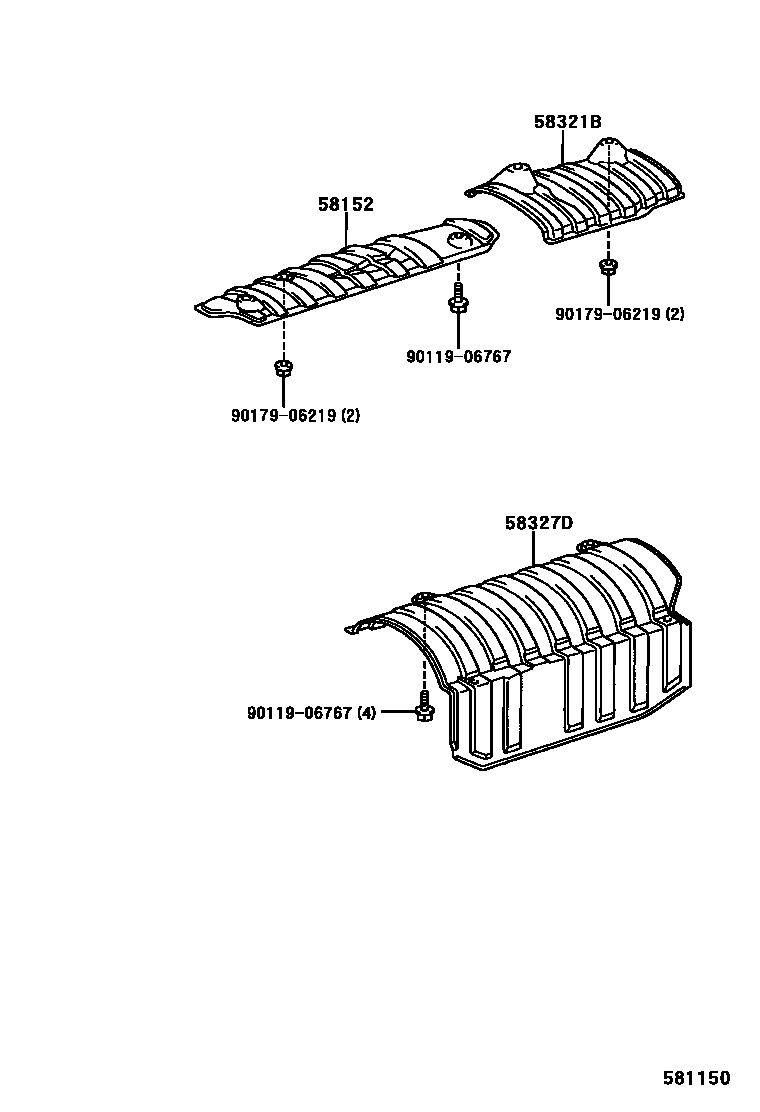

FLOOR INSULATOR

58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2

main58152-28020iACR30,CLR30200002-200304

main58152-28030iACR30200304

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-28040iACR30,CLR30200002-200304

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-28020iACR30,CLR30200002-200304

9011906767

main90119-06767

9017906219

main90179-06219

5 parts on this diagram · 1 diagram in section
