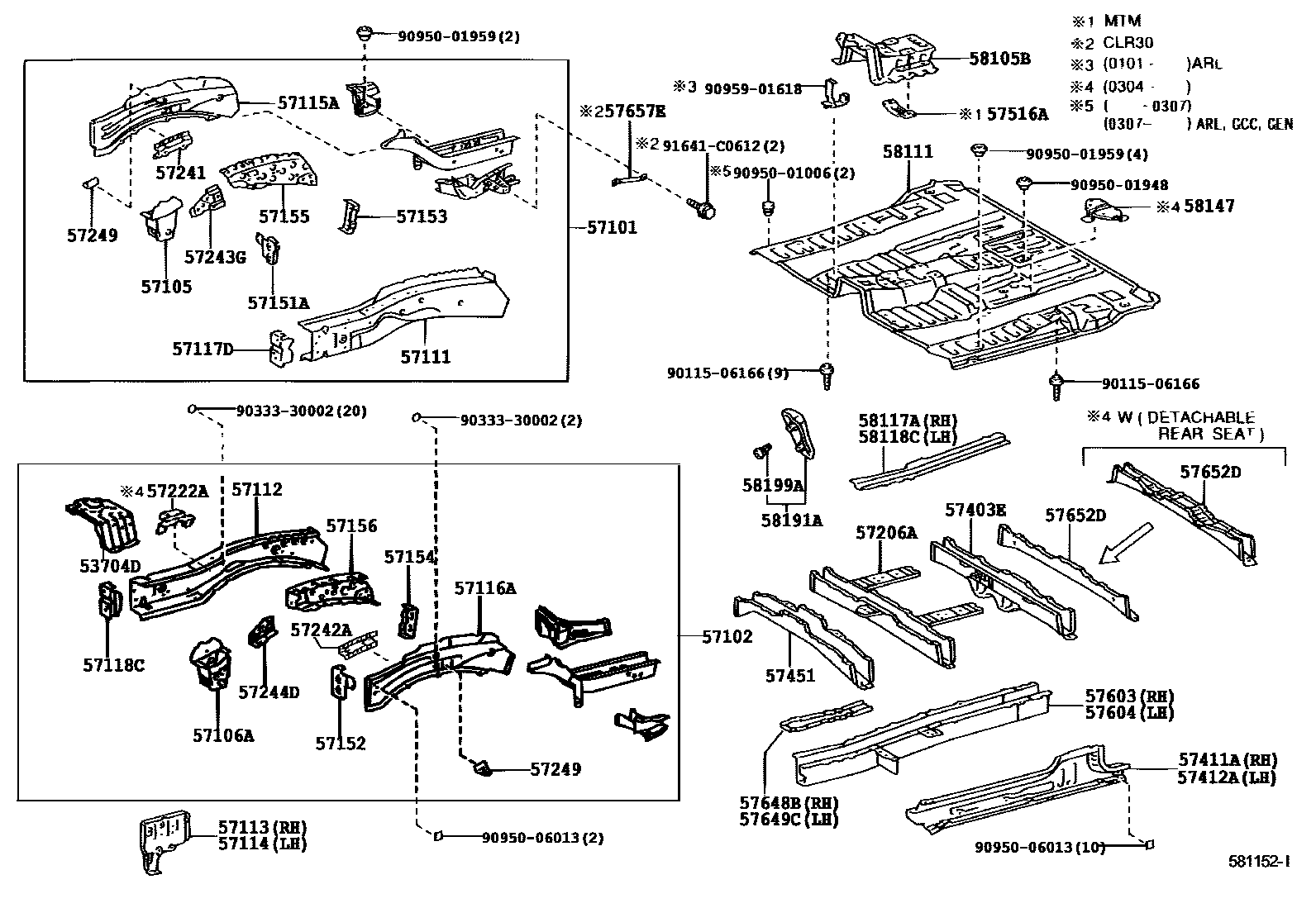

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-28010iACR30..ARL,EUR¥7,500200002-200304

W(BATTERY=46B24L)

main53704-28030iCLR30;ACR30..GCC,GEN¥7,500200002-200304

W(BATTERY=55D23L)

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-28640iACR30¥90,500200002-200304

sub57101-28850¥90,600

main57101-28810iCLR30¥90,500200102-200304

sub57101-28860¥90,600

main57101-28850iACR30¥90,600200304

main57101-28860iCLR30¥90,600200304

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-28660iACR30¥97,000200002-200304

W(BATTERY=55D23L)

sub57102-28720¥97,200

main57102-28670iACR30..ARL,EUR¥97,000200002-200304

W(BATTERY=46B24L)

sub57102-28730¥97,200

main57102-28680iCLR30¥97,000200102-200304

sub57102-28740¥97,200

main57102-28720iACR30..06S,07S;ACR30..08S..MTM;ACR30..DX..(ARL,GCC)¥97,200200304-200405

W(BATTERY=55D23L)

main57102-28730iACR30..ARL,EUR¥97,200200304

W(BATTERY=46B24L)

main57102-28740iCLR30¥97,200200304

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-28120iACR30,CLR30¥4,540200002-200304

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-28110iACR30¥5,600200002-200209

sub57106-28120¥4,540

main57106-28120iACR30¥4,540200209-200304

main57106-28130iCLR30¥6,700200102-200304

57111MEMBER, FRONT SIDE, RH

main57111-28230iACR30¥19,100200002-200304

main57111-28240iCLR30¥19,100200102-200304

57112MEMBER, FRONT SIDE, LH

main57112-28260iACR30,CLR30¥19,100200002-200304

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-28080iACR30,CLR30¥3,940200002-200304

sub57113-28120¥3,950

main57113-28120iACR30,CLR30¥3,950200304

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-28060iACR30¥3,940200002-200105

sub57114-28070¥3,920

main57114-28070iACR30¥3,920200105-200304

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-28090iACR30,CLR30¥10,700200002-200304

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-28090iACR30,CLR30¥10,700200002-200304

57117DRETAINER, FRONT BUMPER ARM, RH

main57117-28060iACR30,CLR30¥3,150200002-200304

sub57117-28080¥3,430

main57117-28080iACR30,CLR30¥3,430200304

57118CRETAINER, FRONT BUMPER ARM, LH

main57118-28050iACR30,CLR30¥3,150200002-200304

sub57118-28060¥3,540

main57118-28060iACR30,CLR30¥3,540200304

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-28120iACR30,CLR30¥1,330200002-200304

57152REINFORCEMENT, FRONT SIDE MEMBER, NO.1 LH

main57152-28120iACR30,CLR30¥1,330200002-200304

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-28080iACR30;CLR30..08S¥820200002-200304

57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH

main57154-28080iACR30,CLR30¥820200002-200304

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-28070iACR30,CLR30¥6,700200002-200304

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-28080iACR30,CLR30¥6,700200002-200304

57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2

main57206-28040iACR30..ARL¥13,100200002-200105

sub57206-28100¥13,000

main57206-28060iACR30..RHD..ATM..EUR¥13,300200002-200007

sub57206-28080¥13,700

main57206-28070iACR30..LHD..ATM¥13,300200002-200007

sub57206-28090¥13,700

main57206-28080iACR30..RHD..MTM¥13,700200002-200304

main57206-28090iACR30,CLR30..LHD¥13,700200002-200304

main57206-28100iACR30..ARL¥13,000200105-200304

57222ABRACKET, FRONT SIDE MEMBER, LH

main57222-28040iACR30¥1,080200304

57241REINFORCEMENT, FRONT SIDE MEMBER, NO.5 RH

main57241-28080iACR30,CLR30¥2,110200002

57242AREINFORCEMENT, FRONT SIDE MEMBER, NO.5 LH

main57242-28050iACR30,CLR30¥2,110200002

57243GREINFORCEMENT, FRONT SIDE MEMBER, NO.6 RH

main57243-28070iACR30,CLR30¥1,680200002-200304

57244DREINFORCEMENT, FRONT SIDE MEMBER, NO.6 LH

main57244-28040iACR30,CLR30¥1,820200002-200304

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iACR30,CLR30¥440200002-200304

57403EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3

main57403-28050iACR30..08S;ACR30..GL..GEN;ACR30..RHD..07S..ATM¥15,800200002-200105

W(CAPTAIN SEAT)

sub57403-28120¥15,800

main57403-28070iACR30..(06S,07S)..EUR¥15,800200002-200007

sub57403-28080¥15,800

main57403-28120iACR30,CLR30¥15,800200007-200304

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-28010iACR30,CLR30¥14,000200002-200304

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-28010iACR30,CLR30¥14,000200002-200304

57451MEMBER, FRONT FLOOR CROSS

main57408-28040iACR30..RHD..ATM¥7,800200002-200105

sub57408-28080¥7,800

main57408-28050iACR30..LHD..ATM¥7,800200002-200304

sub57408-28081¥7,700

main57408-28060iACR30,CLR30..RHD..MTM¥7,800200002-200304

sub57408-28061¥7,700

main57408-28061iACR30,CLR30..MTM¥7,700200304

main57408-28070iACR30,CLR30..LHD..MTM¥7,800200002-200304

sub57408-28061¥7,700

main57408-28080iACR30..RHD..ATM¥7,800200105-200304

sub57408-28081¥7,700

main57408-28081iACR30..ATM¥7,700200304

57516ARETAINER, FRONT FLOOR REINFORCEMENT, FRONT

main57516-28030iACR30,CLR30..MTM¥1,450200002-200304

57603MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57603-28010iACR30,CLR30..RHD¥59,200200002-200211

sub57603-28050¥59,200

main57603-28030iACR30..LHD¥59,000200002-200105

sub57603-28040¥59,200

main57603-28040iCLR30..LHD¥59,200200102-200304

main57603-28050iACR30,CLR30..RHD¥59,200200211-200304

57604MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57604-28010iACR30,CLR30..RHD¥59,200200002-200211

sub57604-28040¥59,200

main57604-28020iACR30,CLR30..LHD¥59,200200002-200304

main57604-28030iACR30,CLR30..RHD¥59,200200211-200304

57648BREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER RH

main57648-28030iACR30,CLR30¥4,720200002-200304

57649CREINFORCE, REAR FLOOR SIDE MEMBER, REAR UPPER LH

main57649-28020iACR30,CLR30¥4,720200002-200304

57652DMEMBER, REAR FLOOR CROSS, NO.1

main57605-28380iACR30,CLR30..07S..EUR¥15,900200304

W(DETACHABLE REAR SEAT)

main57652-28100iACR30,CLR30¥4,950200002-200304

57657EBRACKET, EXHAUST PIPE MOUNTING, NO.2

main57657-28040iCLR30¥850200102-200304

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-28010iACR30..ATM¥8,800200002-200304

main58105-28020iACR30,CLR30..MTM¥8,800200002-200304

58111PAN, FRONT FLOOR

main58111-28670iACR30..ARL¥40,700200002-200304

sub58111-28740¥40,700

sub90333-35001¥140

main58111-28680iACR30,CLR30..LHD..MTM¥40,700200002-200304

sub58111-28750¥40,700

sub90333-35001¥140

main58111-28690iACR30..LHD..ATM¥40,700200002-200304

sub58111-28760¥40,700

sub90333-35001¥140

main58111-28700iACR30,CLR30..RHD..MTM¥40,700200002-200304

sub58111-2J040¥40,700

sub90333-35001¥140

main58111-28710iACR30..RHD..ATM..EUR¥40,700200002-200304

sub58111-2J050¥40,700

sub90333-35001¥140

main58111-28740iACR30..ARL¥40,700200304

main58111-28750iACR30..LHD..MTM¥40,700200304

main58111-28760iACR30..LHD..ATM¥40,700200304

main58111-2J040iACR30..RHD..MTM¥40,700200304

main58111-2J050iACR30..RHD..ATM..EUR¥40,700200304

58117AREINFORCEMENT, FRONT FLOOR SIDE, RH

main58117-28030iACR30,CLR30¥7,500200002-200304

58118CREINFORCEMENT, FRONT FLOOR SIDE, LH

main58118-28050iACR30,CLR30¥7,500200002-200304

58147BRACKET, FRONT FLOOR HOUSING, FRONT LH

main58147-28010iACR30,CLR30..EUR¥1,170200304

58191AFOOTREST, FRONT FLOOR, RH

main58191-28040iACR30..RHD..ATM¥2,910200002-200304

58199ACLIP, FOOTREST, NO.2

main58199-20050iACR30..RHD..ATM¥330200002-200304

9011506166

main90115-06166¥90

9033330002

main90333-30002¥70

9095001006

main90950-01006¥260

9095001948

main90950-01948¥100

9095001959

main90950-01959¥120

9095006013

main90950-06013¥120

9095901618

main90959-01618¥280

91641C0612

main91641-C0612¥110

52 parts on this diagram · 1 diagram in section
