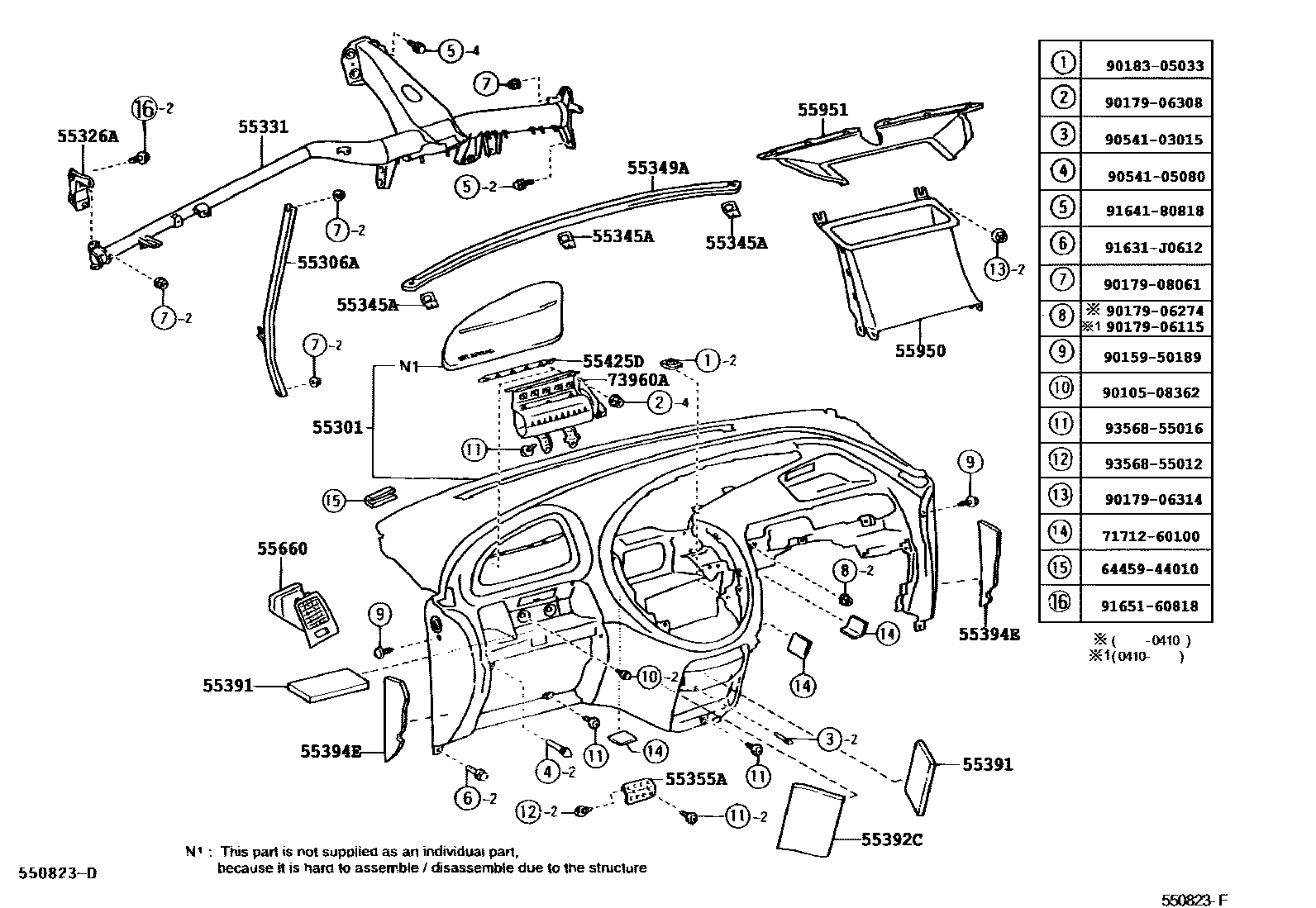

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55300-28010-B0iACR30,CLR30..RHD200002-200304

BLUISH GRAY,TRIM11

sub55300-28010¥56,800

main55300-28010-B1iACR30,CLR30..RHD200002-200304

DK.CHARCOAL,TRIM12

sub55300-28010¥56,800

main55300-28010-B2iACR30..RHD..08S..ATM;ACR30,CLR30..RHD..07S200304-200601

DK.GRAY,TRIM1#

sub55300-28010¥56,800

main55300-28020-B0iACR30,CLR30..LHD200002-200304

BLUISH GRAY,TRIM11

sub55300-28020¥56,800

main55300-28020-B1iACR30,CLR30..LHD200002-200304

DK.CHARCOAL,TRIM12

sub55300-28020¥56,800

main55300-28020-B2iCLR30..LHD..08S200304-200601

DK.GRAY,TRIM1#

sub55300-28020¥56,800

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28160iACR30,CLR30..RHD¥3,270200002-200304

main55306-28170iACR30,CLR30..LHD¥3,270200002-200304

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-28090iACR30,CLR30..RHD¥1,450200002-200304

main55326-28100iACR30,CLR30..LHD¥1,450200002-200304

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-28110iACR30,CLR30..RHD¥22,300200002-200304

main55330-28120iACR30,CLR30..LHD¥22,300200002-200304

sub55330-28160¥22,400

main55330-28150iACR30,CLR30..RHD¥22,400200304

main55330-28160iACR30,CLR30..LHD¥22,400200304

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-28030iACR30,CLR30¥440200002-200304

55349ACUSHION, INSTRUMENT PANEL

main55349-28110iACR30,CLR30¥1,780200002-200304

55355APLATE, INSTRUMENT PANEL

main55355-28050iACR30,CLR30¥390200002-200304

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-28010iCLR30¥1,320200102-200208

main55391-28030iCLR30¥1,330200208-200304

55392CCUSHION, INSTRUMENT PANEL, LOWER NO.2

main55392-28010iCLR30¥500200102-200208

main55392-28030iCLR30¥1,330200208-200304

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-28030iCLR30¥1,330200208-200304

55425DBASE, AIRBAG PASSENGER MOUNTING

main55425-28010iACR30,CLR30¥820200002-200304

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28100-B0iACR30,CLR30..RHD200002-200304

BLUISH GRAY,TRIM11

sub55660-28170¥7,400

main55660-28100-B1iACR30,CLR30..RHD200002-200304

DK.CHARCOAL,TRIM12

sub55660-28170¥7,400

main55660-28110-B0iACR30,CLR30..LHD200002-200304

BLUISH GRAY,TRIM11

sub55660-28180¥7,400

main55660-28110-B1iACR30,CLR30..LHD200002-200304

DK.CHARCOAL,TRIM12

sub55660-28180¥7,400

main55660-28170-B0iACR30,CLR30..RHD..08S..MTM200304-200601

DK.GRAY,TRIM1#

sub55660-28170¥7,400

main55660-28180-B0iCLR30..LHD..08S200304-200601

DK.GRAY,TRIM1#

55950NOZZLE ASSY, DEFROSTER

main55950-28100iACR30..RHD¥10,400200002-200304

main55950-28110iACR30..LHD¥10,400200002-200304

main55950-28120iCLR30..RHD¥11,600200102-200208

sub55950-28160¥11,700

main55950-28130iCLR30..LHD¥11,600200102-200208

sub55950-28170¥11,700

main55950-28160iCLR30..RHD¥11,700200208-200304

main55950-28170iCLR30..LHD¥11,700200208-200304

55951NOZZLE, DEFROSTER, FRONT

main55951-28050iACR30,CLR30..RHD¥3,490200002-200304

main55951-28060iACR30,CLR30..LHD¥3,490200002-200304

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-28030iACR30,CLR30..RHD¥120,000200002-200304

sub73960-28050¥120,000

main73960-28040iACR30,CLR30..LHD¥120,000200002-200304

sub73960-28060¥120,000

main73960-28050iACR30,CLR30..RHD¥120,000200304

main73960-28060iACR30,CLR30..LHD¥120,000200304

6445944010CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-44010¥170

7171260100LEATHER, FOR SEAT, B RH

main71712-60100¥110

9010508362

main90105-08362¥80

9015950189

main90159-50189¥120

9017906115

main90179-06115¥120

9017906274

main90179-06274¥70

9017906308

main90179-06308¥80

9017906314

main90179-06314¥70

9017908061

main90179-08061¥80

9018305033

main90183-05033¥80

9054103015

main90541-03015¥110

9054105080

main90541-05080¥170

91631J0612

main91631-J0612¥110

9164180818

main91641-80818¥80

9165160818

main91651-60818¥170

9356855012

main93568-55012¥60

9356855016

main93568-55016¥70

32 parts on this diagram · 4 diagrams in section
