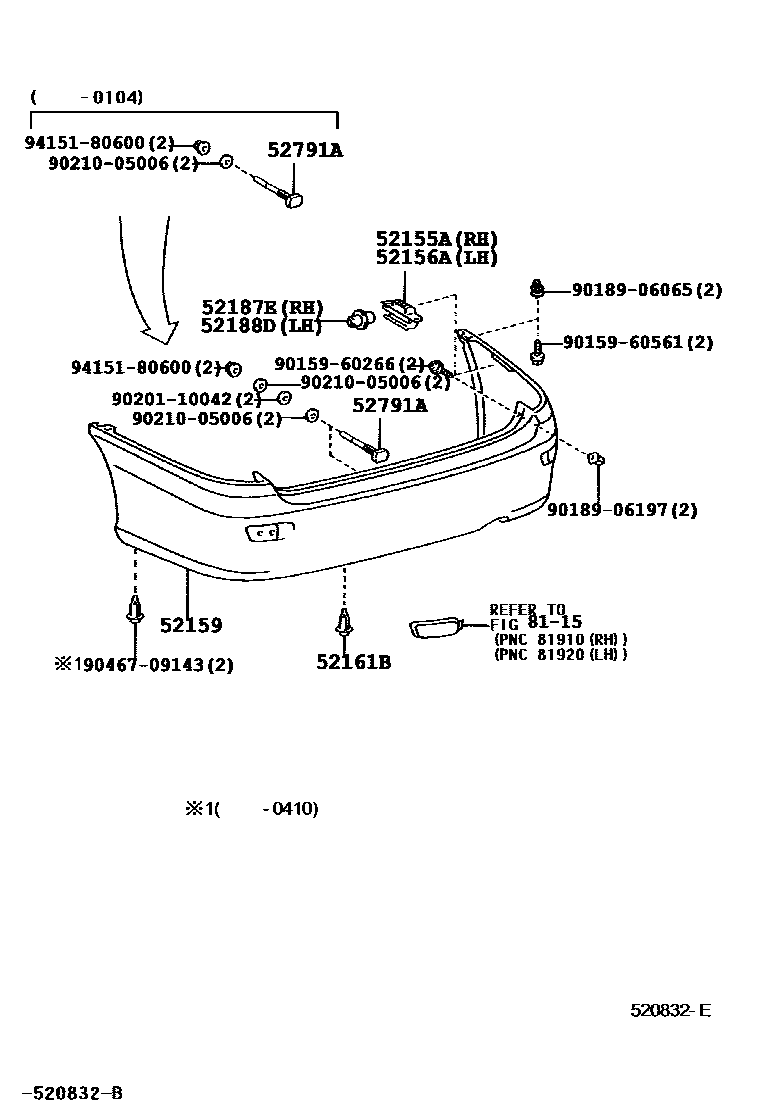

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28070iACR30,CLR30¥660200002-200304

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-28070iACR30,CLR30¥660200002-200304

52159COVER, REAR BUMPER

main52159-28904iACR30,CLR30¥32,500200002-200601

sub52159-28922¥32,200

main52159-28905iACR30..GCC200102-200601

W(CLEARANCE & BACK SONAR)

sub52159-28923¥33,100

52161BPIECE, REAR BUMPER

main52161-16010iACR30¥120200002-200404

sub52161-0K040¥120

52187EGUIDE, REAR BUMPER LOCATION, RH

main52187-16070iACR30,CLR30¥260200002-200304

52188DGUIDE, REAR BUMPER LOCATION, LH

main52187-16070iACR30,CLR30¥260200002-200304

52791ABOLT, BUMPER MOULDING SET, NO.2

main52791-44020iACR30,CLR30¥160200002-200304

8115

9015960266

main90159-60266¥100

9015960561

main90159-60561¥70

9018906065

main90189-06065¥80

9018906197

main90189-06197¥70

9020110042

main90201-10042¥90

9021005006

main90210-05006¥120

9046709143

main90467-09143¥260

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
