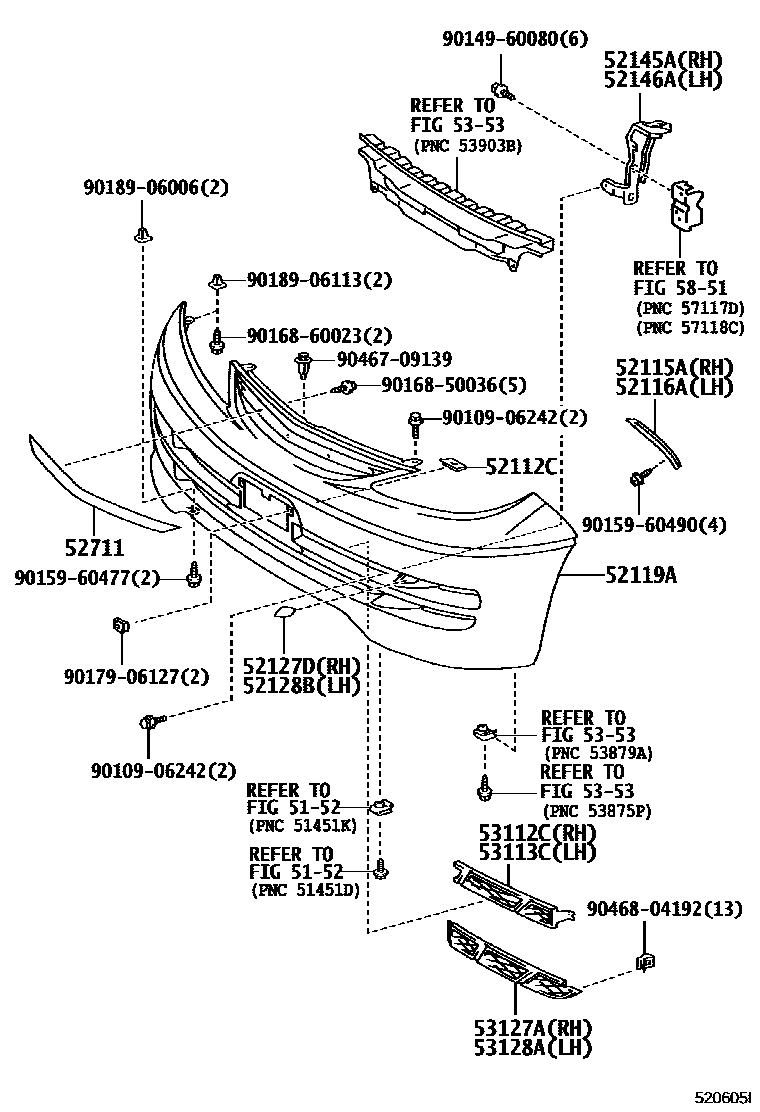

FRONT BUMPER & BUMPER STAY
5152
52112CEXTENSION, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
sub52119-2J916
W(CLEARANCE SONAR & BACK SONAR)
sub52119-2J917
BRUNEI OR HONG KONG OR SINGAPORE SPEC & W(CLEALANCE SONAR & BACK SONAR)
sub52119-2J917
W(HEADLAMP CLEANER)
W(HEADLAMP CLEANER & CLEARANCE SONAR & BACK SONAR)
W(CLEARANCE SONAR & BACK SONAR)
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC
W(CLEARANCE SONAR & BACK SONAR)
BERMUDA OR BRUNEI OR HONG KONG OR SINGAPORE SPEC & W(CLEALANCE SONAR & BACK SONAR)
W(HEADLAMP CLEANER)
W(HEADLAMP CLEANER & CLEARANCE SONAR & BACK SONAR)
W(CLEARANCE SONAR & BACK SONAR)
W(CLEARANCE SONAR & BACK SONAR)
52127DCOVER, FRONT BUMPER HOLE, RH
52128BCOVER, FRONT BUMPER HOLE, LH
52145ASTAY, FRONT BUMPER, NO.2 RH
52146ASTAY, FRONT BUMPER, NO.2 LH
52711MOULDING, FRONT BUMPER
53112CGRILLE, RADIATOR, LOWER RH
53113CGRILLE, RADIATOR, LOWER LH
53127AGRILLE, RADIATOR, LOWER RH
53128AGRILLE, RADIATOR, LOWER LH
5353
5851
9010906242
main90109-06242
9014960080
main90149-60080
9015960477
main90159-60477
9015960490
main90159-60490
9016850036
main90168-50036
9016860023
main90168-60023
9017906127
main90179-06127
9018906006
main90189-06006
9018906113
main90189-06113
9046709139
main90467-09139
9046804192
main90468-04192
27 parts on this diagram · 2 diagrams in section
