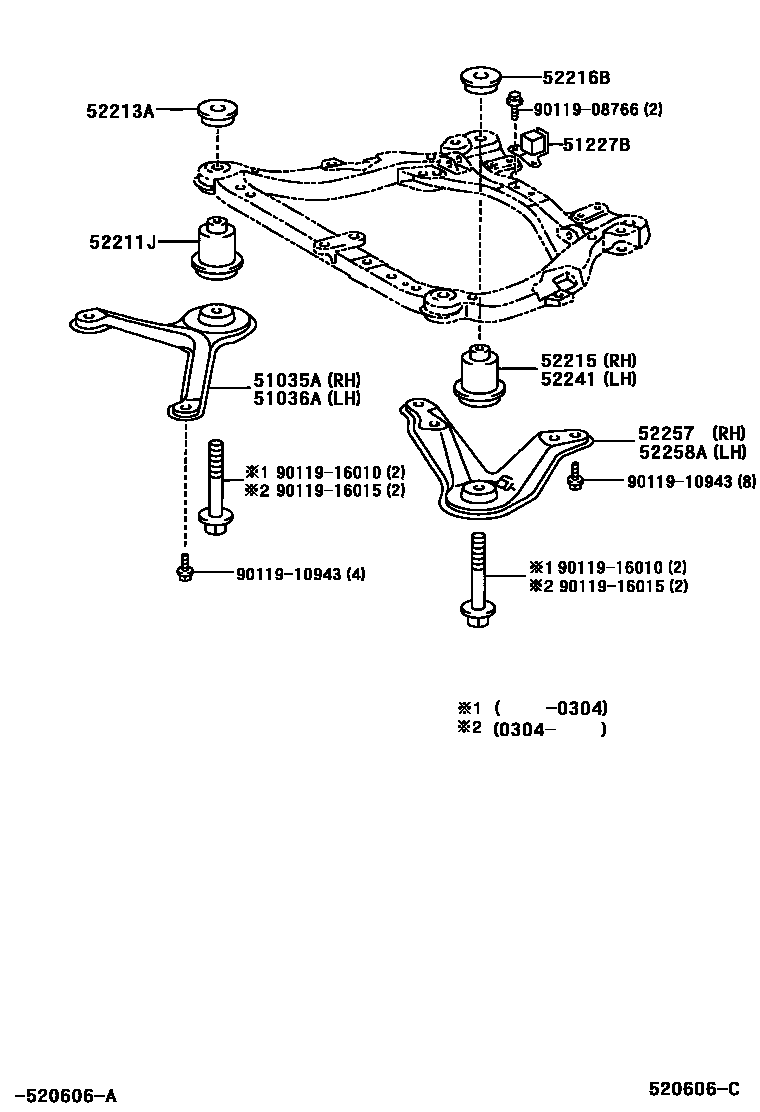

CAB MOUNTING & BODY MOUNTING

51035APLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-28030iACR30,CLR30200002-200404

51036APLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-28010iACR30,CLR30200002-200404

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-28020iACR30..GEN200002-200304

main51227-28040iACR30,CLR30..08S..MTM200002-200404

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-28010iACR30..GEN200002-200304

main52211-28030iACR30,CLR30..ARL,EUR,GCC200002-200308

sub52211-28031

main52211-28031iACR30,CLR30..08S..MTM200308-200404

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-28010iACR30..GEN200002-200304

main52213-28030iACR30,CLR30..ARL,EUR,GCC200002-200404

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-28010iACR30,CLR30200002-200404

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-28010iACR30,CLR30200002-200404

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52217-28010iACR30,CLR30200002-200404

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main51023-28010iACR30,CLR30200002-200404

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main51024-28010iACR30,CLR30200002-200404

9011908766

main90119-08766

9011910943

main90119-10943

9011916010

main90119-16010

9011916015

main90119-16015

14 parts on this diagram · 1 diagram in section
