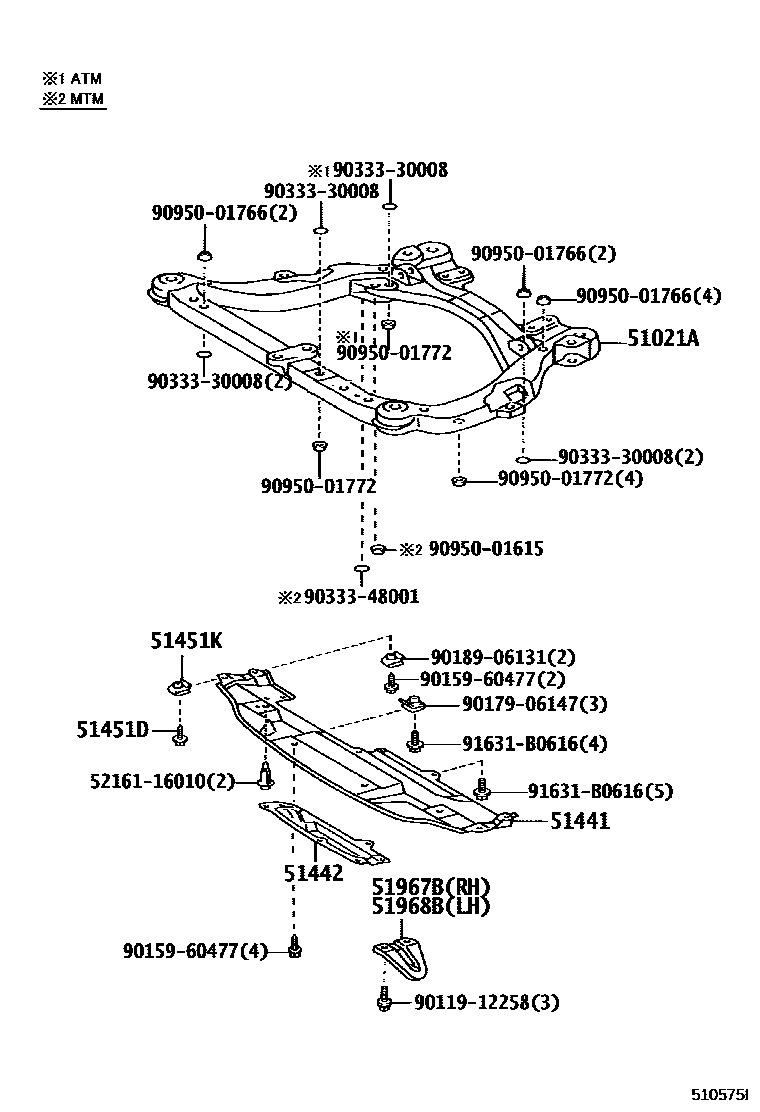

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51021AMEMBER SUB-ASSY, ENGINE FRONT SUPPORT

main51100-28010iACR30..ATM200002-200304

main51100-28020iACR30,CLR30..MTM200002-200304

51441COVER, ENGINE UNDER, NO.1

main51440-58010iACR30,CLR30200304

main51441-28120iACR30,CLR30200002-200304

51442COVER, ENGINE UNDER, NO.2

main51442-28100iACR30,CLR30200002-200304

51451DSCREW, NO.1

main90159-60477iACR30,CLR30200002-200601

51451KGROMMET, SCREW, NO.1

main90189-06131iACR30,CLR30200002-200601

51967BHOOK, TRANSPORT, REAR RH

main51967-28050iACR30,CLR30200002-200304

51968BHOOK, TRANSPORT, REAR LH

main51096-44010iACR30..GL..GCC200503

GCC PACKAGE 2;GCC PACKAGE 1

main51968-44010iACR30,CLR30200002-200304

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9011912258

main90119-12258

9015960477

main90159-60477

9017906147

main90179-06147

9018906131

main90189-06131

9033330008

main90333-30008

9033348001

main90333-48001

9095001615

main90950-01615

9095001766

main90950-01766

9095001772

main90950-01772

91631B0616

main91631-B0616

18 parts on this diagram · 2 diagrams in section
