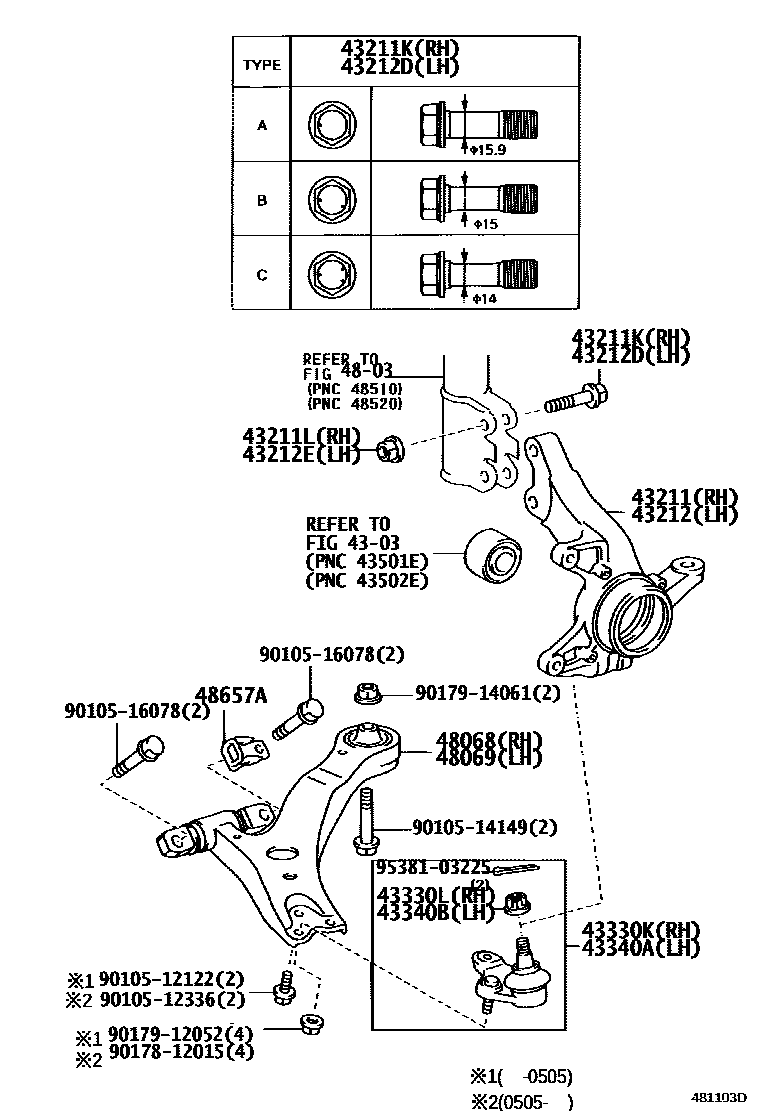

FRONT AXLE ARM & STEERING KNUCKLE

4303

43211KNUCKLE, STEERING, RH

main43211-28110iACR30,CLR30200002-200304

main43211-58010iACR30..08S..ATM;ACR30,CLR30..06S,07S200304-200404

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17003iACR30,CLR30200002-200304

OD=15.9,TYPE A:REFER TO ILLUSTRATION

main90105-17004iACR30,CLR30200002-200304

OD=15,TYPE B:REFER TO ILLUSTRATION

main90105-17005iACR30,CLR30200002-200304

OD=14,TYPE C:REFER TO ILLUSTRATION

main90105-17013iACR30,CLR30..08S..MTM200304-200404

OD=15.9,TYPE A:REFER TO ILLUSTRATION

main90105-17014iACR30..08S..ATM;ACR30,CLR30..06S,07S200304-200404

OD=15,TYPE B:REFER TO ILLUSTRATION

main90105-17015iACR30,CLR30..08S..MTM200304-200404

OD=14,TYPE C:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17001iACR30,CLR30..08S..MTM200304-200404

main90179-17001iACR30,CLR30200002-200304

43212KNUCKLE, STEERING, LH

main43212-28090iACR30,CLR30200002-200304

main43212-58010iACR30,CLR30..08S..MTM200304-200404

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17003iACR30,CLR30200002-200304

OD=15.9,TYPE A:REFER TO ILLUSTRATION

main90105-17004iACR30,CLR30200002-200304

OD=15,TYPE B:REFER TO ILLUSTRATION

main90105-17005iACR30,CLR30200002-200304

OD=14,TYPE C:REFER TO ILLUSTRATION

main90105-17013iACR30..08S..ATM;ACR30,CLR30..06S,07S200304-200404

OD=15.9,TYPE A:REFER TO ILLUSTRATION

main90105-17014iACR30,CLR30..08S..MTM200304-200404

OD=15,TYPE B:REFER TO ILLUSTRATION

main90105-17015iACR30..08S..ATM;ACR30,CLR30..06S,07S200304-200404

OD=14,TYPE C:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17001iACR30,CLR30..08S..MTM200304-200404

main90179-17001iACR30,CLR30200002-200304

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29405iACR30,CLR30200002-200304

sub43330-29615

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iACR30,CLR30..08S..MTM200002-200404

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-29175iACR30,CLR30200002-200304

sub43340-29215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iACR30,CLR30200002-200404

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-28120iACR30,CLR30200002-200112

sub48068-58010

main48068-33050iACR30,CLR30200112-200204

sub48068-58010

main48068-58010iACR30,CLR30200204-200404

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-28120iACR30,CLR30200002-200112

sub48069-58010

main48069-33050iACR30,CLR30200112-200204

sub48069-58010

main48069-58010iACR30,CLR30200204-200404

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-28010iACR30,CLR30200002-200404

9010512122

main90105-12122

9010512336

main90105-12336

9010514149

main90105-14149

9010516078

main90105-16078

9017812015

main90178-12015

9017912052

main90179-12052

9017914061

main90179-14061

9538103225

main95381-03225

23 parts on this diagram · 1 diagram in section
