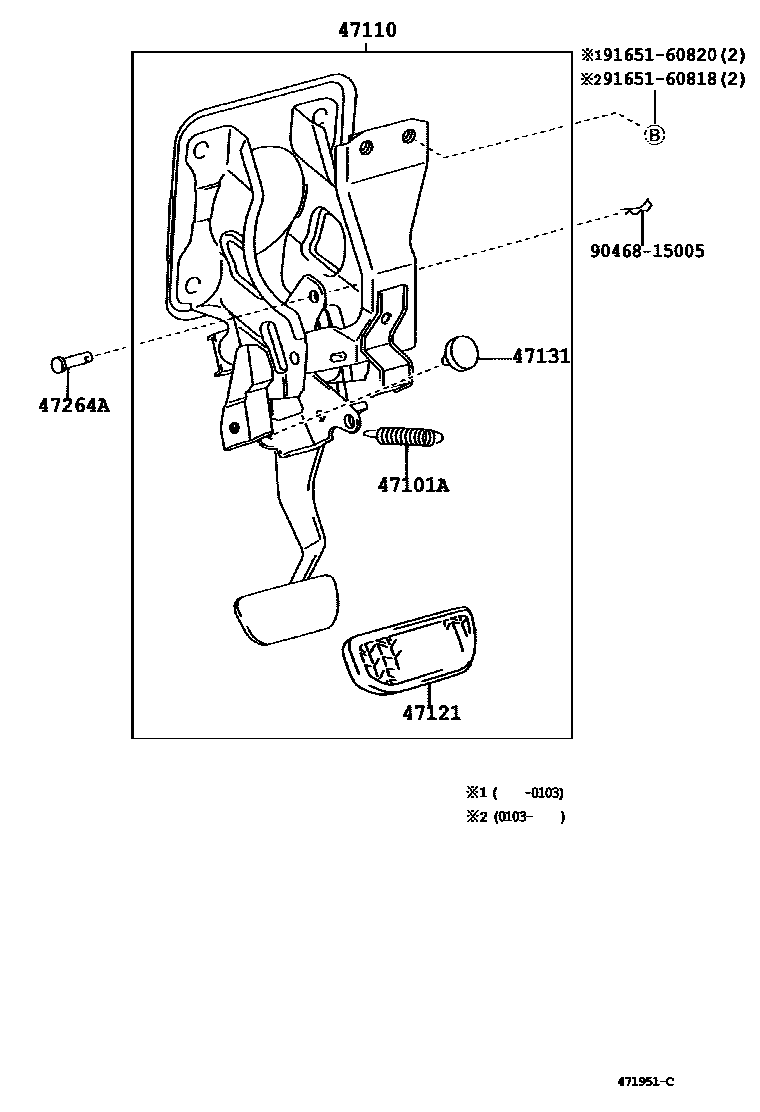

BRAKE PEDAL & BRACKET

0001 1 0002 1W(SHIFT LOCK SYSTEM)

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-18083iACR30,CLR30..MTM;ACR30..LHD..ATM..(EUR,GEN)200002-200312

main90506-20075iACR30..LHD..07S..ATM..EUR200110-200304

W(SHIFT LOCK SYSTEM)

main90506-20075iACR30..GCC200105-200304

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28030iACR30,CLR30..RHD..MTM200002-200304

sub47110-28130

main47110-28031iACR30,CLR30..RHD..MTM200304

main47110-28040iACR30..RHD..ATM200002-200304

sub47110-28140

main47110-28041iACR30..RHD..ATM200304

main47110-28050iACR30,CLR30..LHD..MTM200002-200304

sub47110-28051

main47110-28051iACR30,CLR30..LHD..MTM200304

main47110-28060iACR30..LHD..ATM..(EUR,GEN)200002-200304

sub47110-28061

main47110-28061iACR30..LHD..ATM..(EUR,GEN)200304

main47110-28080iACR30..LHD..(06S,07S)..ATM..EUR200110-200304

W(SHIFT LOCK SYSTEM)

sub47110-28081

main47110-28080iACR30..GCC200105-200304

sub47110-28081

main47110-28081iACR30..GCC200304

W(SHIFT LOCK SYSTEM)

47121PAD, BRAKE PEDAL

main31321-52010iACR30,CLR30..MTM200002-200304

main47121-52010iACR30..ATM200002-200304

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iACR30..GCC;ACR30..RHD..ATM200002-200304

main90541-06049iACR30..LHD..(06S,07S)..ATM..EUR200110-200304

W(SHIFT LOCK SYSTEM)

47264APIN(FOR PUSH ROD)

main90240-06023iACR30,CLR30200002-200304

9046815005

main90468-15005

9165160818

main91651-60818

9165160820

main91651-60820

8 parts on this diagram · 2 diagrams in section
